16Ch Opto-Isolated DI Terminal Board

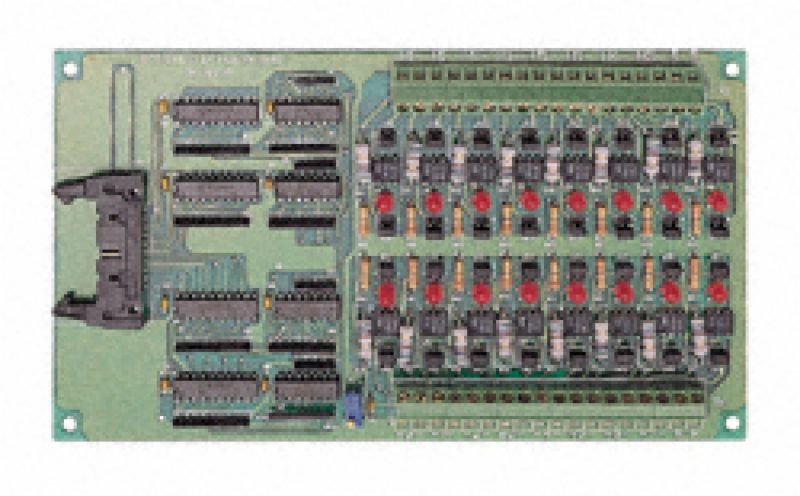

​The ACLD-9182 opto-isolated D/I termination board provides 16 optically isolated digital inputs for use with any ACL series I/O board with D/I channels on 20-pin flat ribbon connectors.

Optical isolation provides a good solution in the prevention of floating potential and ground loop problems.

Each input channel has a red LED to reflect the input status. If the input voltage is high, the LED will light, otherwise the LED is off. Each input channel is jumper selectable to be either AC-filter or non-AC-filter.

		Product Manual for ACLD-9182 (PDF: 44 KB / 13 pages)
