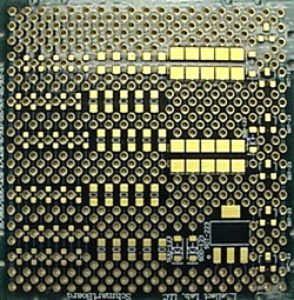

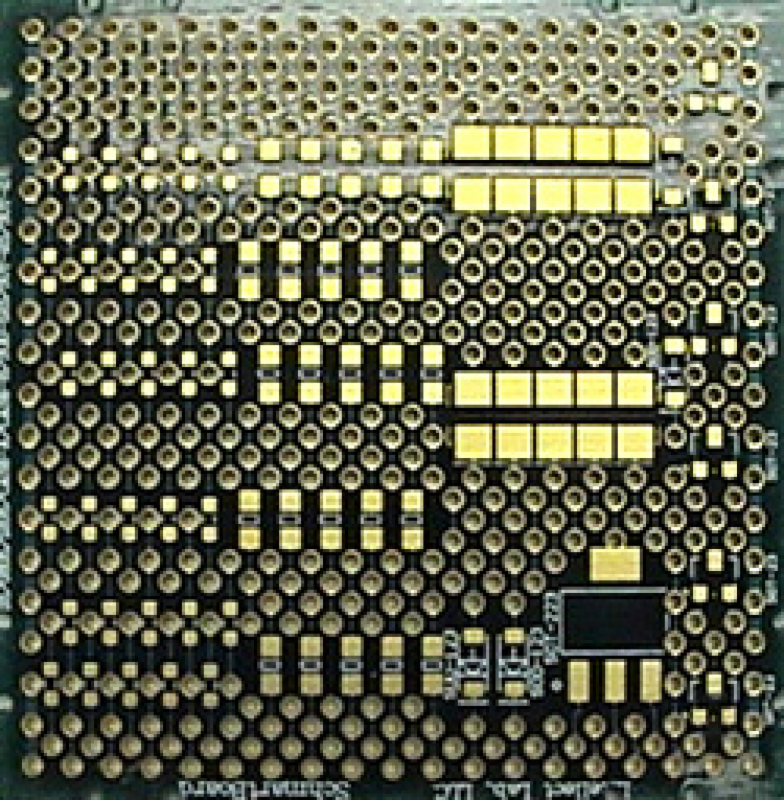

0603/0805/1206/SOD-123/sot-23/SOT-223 2" X 2" Grid SchmartBOARD

Support up to max. 55 pcs. of 0603 package, max. 35 pcs. Of 0805 package, 4 pcs. of SOD-123 package, 1 pcs.of SOT-223 package, 6 pcs. of SOT-23 package, 10 pcs. Of CASE-B package and some thru hole passive components. 12 ground holes are connected a copper plane on the bottom side.

Mechanical Dimensions (PDF)

View Detailed Diagram (PDF)
