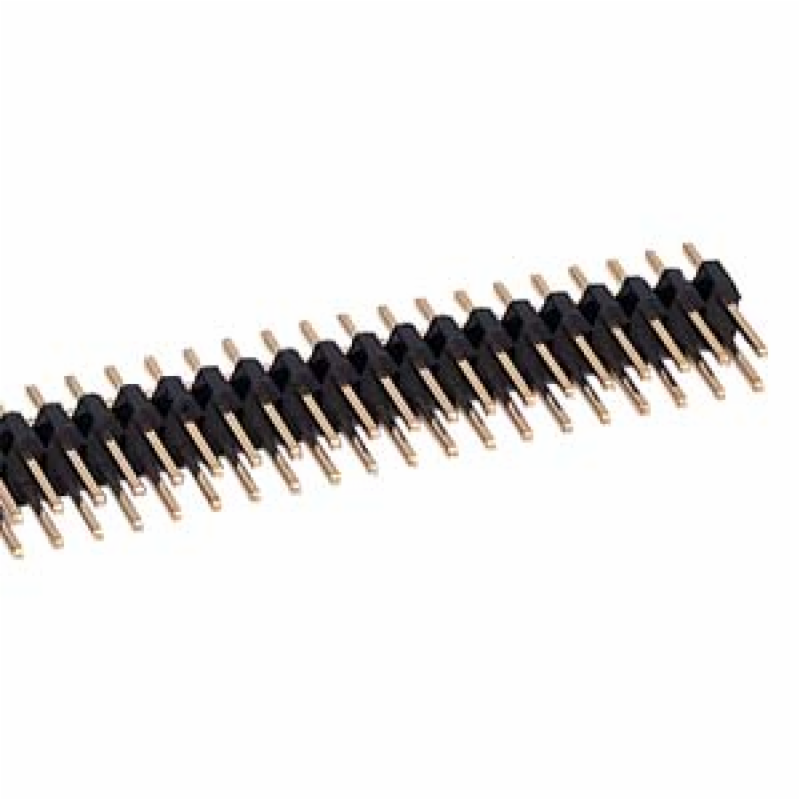

20x2 Row 0.1 Inch Straight Header Strip

Individual Product Details:

Limited To Stock On Hand

Details:

• Connectors:
  • ISH Straight Double Headers
  • Pins: 20 x 2

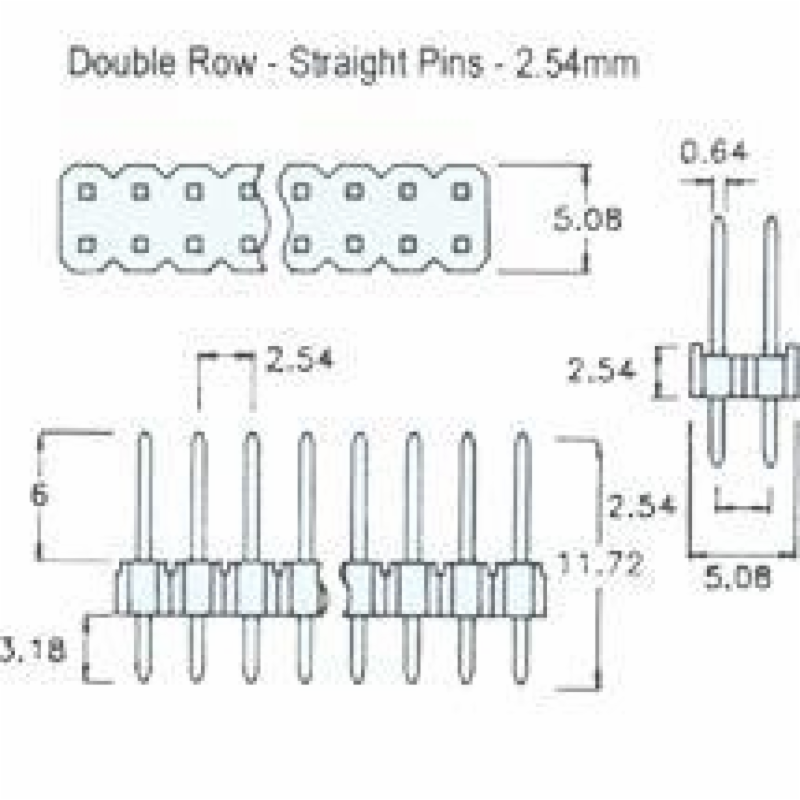

  • Double Row - Straight Pins - 2.54mm
• Materials:
  • Contact Materials: Brass with gold flash over nickel or tin
  • Insulator Material: PBT UL 94V-0
• Electrical:
  • Operating Temp.: -55 deg.C to 105 deg.C
  • Dielectric Withstanding Voltage: 600 V r.m.s.
  • Insulation Resistance: 5000 MOhms min @ DC 500V
  • Contact Current Rating: 3 Amps
