Pure Silicone Conformal Coating

UL Recognized for Flame Class 94 V-0

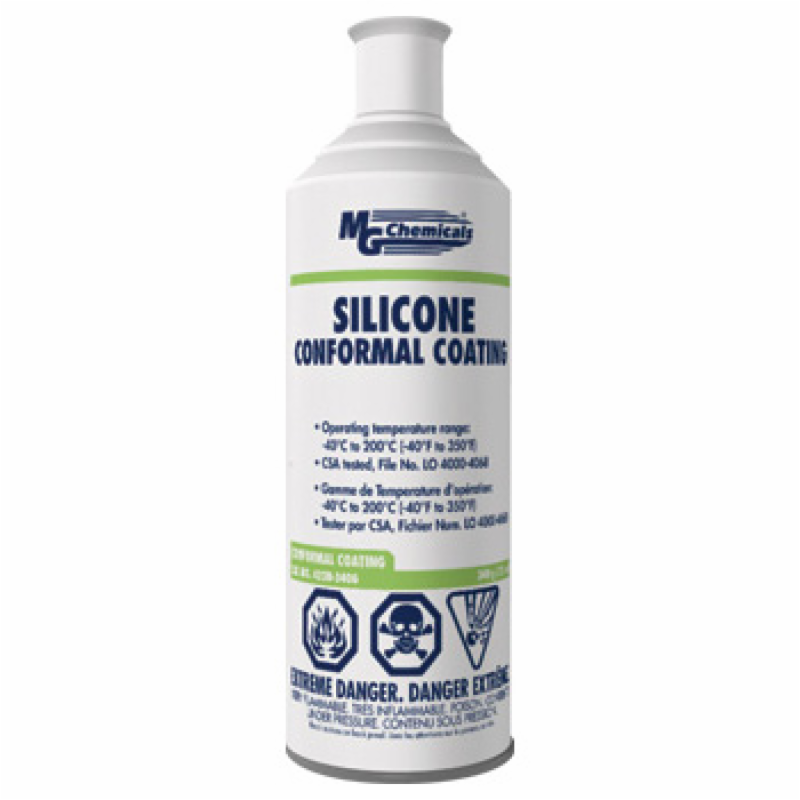

Ideal for high temperature environments. Silicone Conformal Coating (422B) is a flexible finish product that provides a protective coating for printed circuit boards against moisture, corrosion, and thermal shock. It protects and insulates electrical and electronic components and assemblies, including generators, motors, transformers, relays, and solenoid coils. For spraying, liquid can be thinned using M.G. Thinner Cleaner. Thin up to one half part thinner to one part coating.

Directions of Use

Best results will be obtained by applying to thoroughly cleaned and dried parts or materials. It is essential that surfaces be free of any trace of grease or organic substances.

At room temperature, the product will tack free in approximately 5-7 minutes, and full cure will be achieved in approximately 48 hours.

Curing may be accelerated by applying moderate heat with either a convection oven or infrared lamps. We recommend curing in a convection oven at 65°C (149°F) for one hour, but other temperature and time combinations can work well. Heat curing will improve the physical strength of this coating.

MSDS
