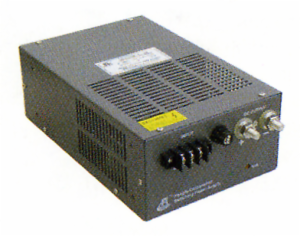

12V Power Supply - 58A Single Output

Individual Product Details:

• 700W, 12V/58A
• High reliability, low cost
• Built in EMI filter
• 100% full load burn-in test
• Protections: over current/ over voltage/ over temperature/ short circuit
• 1 year warranty
• Dimensions: 10.0 x 6.4 x 3.48?

Specifications:

• AC input voltage range: 90-130VAC
• Input frequency: 47-63Hz
• Inrush current: cold start, 60A
• Input leakage current: 0.7mA
• Line regulation (full load): 0.5%
• Output voltage adjust range: 10%
• Output over current protection: 110-130%, current limiting, auto recovery
• Output over voltage protection: 115-150%
• Withstand voltage: I/P-O/P: 1.5KVAC/1min
  :I/P-F/G: 1.5KVAC/1min
  :O/P-F/G: 0.5KVAC/1min
• Rise, Hold up time: 50ms, 20ms@full load (typical
• Operating temp. & humidity: -10°C/+50°C, 20%-90%RH (non-condensing)
• Storage temp & humidity: -20°C/+85°C, 20%-95%RH (non-condensing)
• Cooling method: Fan
