Aardvark Wireless Inspection Camera

Availability: 6 In Stock
Item: AARDVARK NINE
Quantity      Price
1      $ 149.000
Quantity :
Aardvark System with 9mm Camera


Inspection Camera with 9mm camera head, 2 GB uSD card, mirror, pickup magnet, pickup hook,  magnetic monitor base all in a deluxe clam-shell case!!

Aardvark Nine

Wireless Inspection Camera System

with 9mm Camera

 With Color 3.5" LCD Recordable Monitor
Your Extended Eyes & Hands!

See It!

Clearly in narrow spots, even in total darkness or underwater. Includes a 9mm camera head with handy accessories inspecting areas that were previously inaccessable with larger cameras.

Find It!

Fast. No more struggling with a mirror & flash light.

Solve It!

Easily, speed up the solution with extended accessories.

Record It!

With the 3.5" LCD recordable monitor, you can capture pictures or record the video for documentation.

Compare It!

With the General Tools & Instruments Seeker 400 at $329.95

Or the Extech Wireless Video Borescope BR200 at $299.99

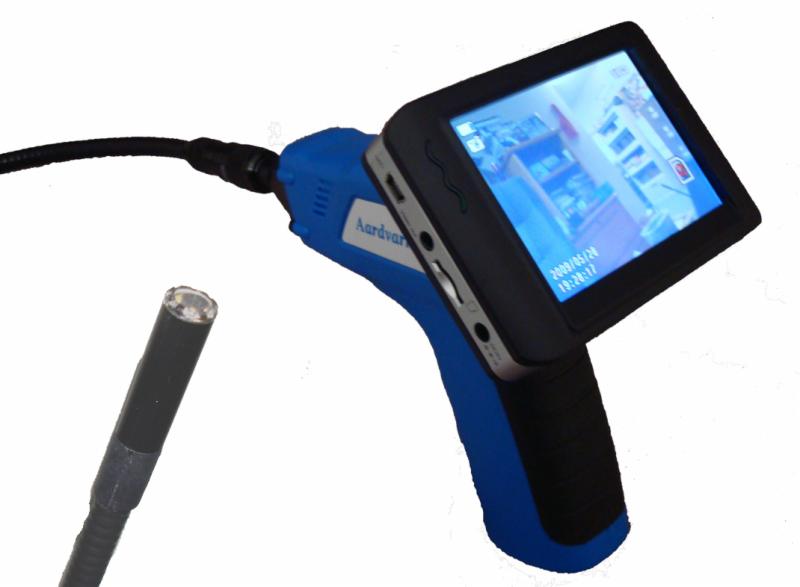

The Aardvark Wireless Inspection Camera is a video borescope with a 3.5 inch color LCD monitor and a 3ft flexible shaft. The flexible shaft makes the Aardvark great for inspecting hard to reach or confined areas like sink drains, AC Vents, engine compartments or anywhere space is limited. The monitor is wireless and may be separated from the main unit for ease of operation. A handy magnetic mount is included for when you decide to seperate the monitor from the main handle.  Still pictures or video can also be recorded and stored on a 2GB MicroSD card (included), and will work with up to a 16GB card. The Aardvark 9mm camera head comes with attachable mirror, magnet and hook accessories to make seeing or retrieving small items easier. The Aardvark's 9mm camera head is ideal for inspecting areas previously unaccessaible to a 17mm camera head.  The Aardvark's monitor also has connections for composite video output for a larger monitor/recorder and USB interface for computer connection. You can also purchase additional monitors for remote monitoring. Also included is an AC adapter/charger, video cable and USB cable. Optional 3 ft flexible extensions are available to extend the Aardvark's reach (Up to 5 may be added for a total reach of 18 feet!). Also, a 5 meter version is available. The magnetic base (included) allows positioning the detachable monitor on metal surfaces for easier viewing. A handy deluxe clam-shell carry case with form fitting cut outs for all parts including room for 2 extra extension shafts is also included (extra extension shafts not included).


Aardvark's possible uses

Facility Inspection

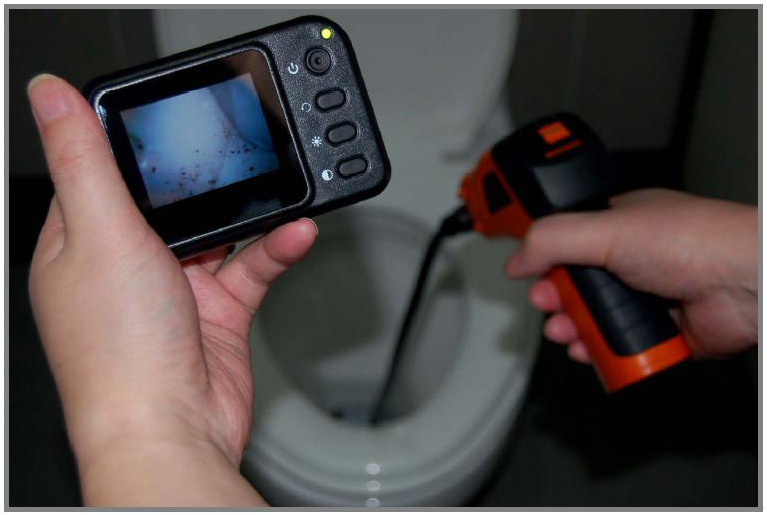

Plumbing Inspection

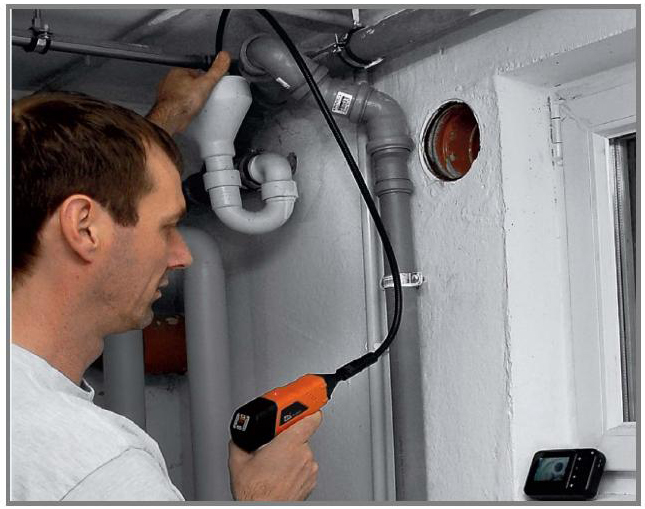

Pipe Inspection

Wall Inspection

Machine Inspection

Checking Into Water

Automotive Inspection

Under Car Inspections

Appliance Inspection

Aardvark User Manual

Aardvark Specifications
Camera
Imaging Sensor CMOS
Total Pixels 712x486 (NTSC) - 704x576 (PAL)
Horizontal View Angle 50 degree
Transmission Frequency 2468 MHz
Minimum Illumination 0 Lux
Modulation Tyoe FM
Bandwidth 18 MHz
Power Supply 4 x AA batteries
Unobstructed Effective Range 10m
Waterproof Capacity IP67 (only for imager head)
Dimensions (W x D x H) 186 x 145 x 74(mm) (excludes flexible shaft)
Camera Diameter 9mm Camera head
Weight 530g (approx.)

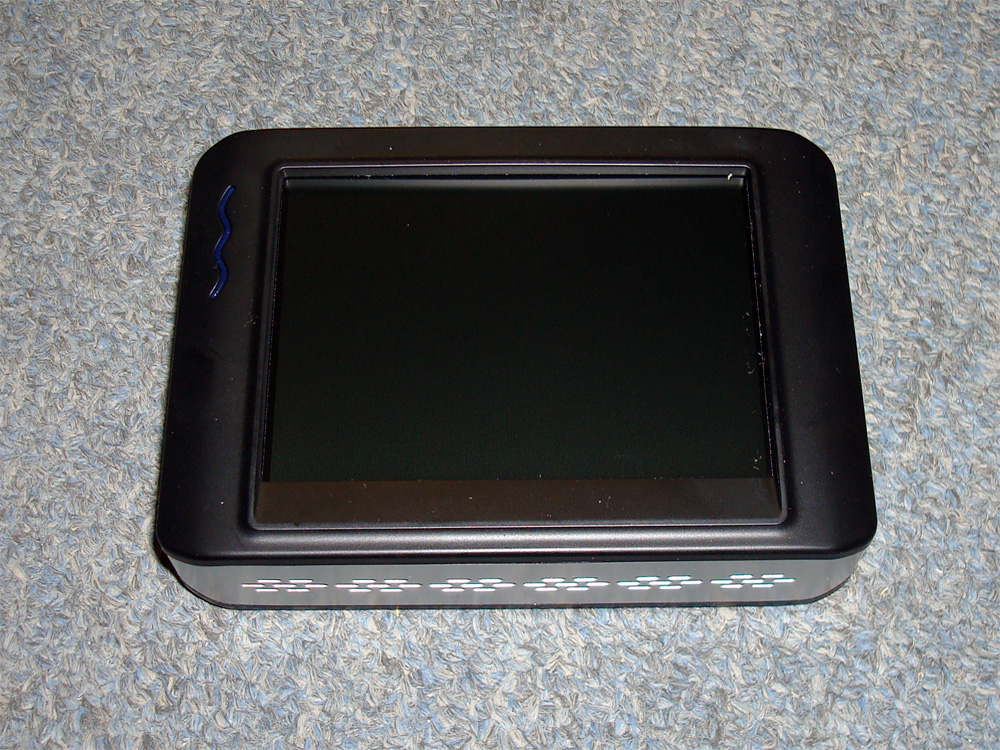

Monitor
LCD Screen Type 3.5" TFT-LCD
Effective Pixels 320 (R.G.B.) x 240
Video System NTSC/PAL
Transmission Frequency 2414MHz, 2432MHz, 2450MHz, 2468MHz
Power Supply Voltage 5V DC
Curren Consumption (Max.) 500mA
Charge Time 3 hours
Work Time 2 hours
Picture/Video Pixels 640 x 480
Video Size 27M byte/minute
Frame Rate 30 Frames per second
Video Output Level 0.9-1.3V p-p @ 75ohm
Receiving Sensitivity <-85dBm
Dimensions 100 x 70 x 25(mm)
Weight 140g (approx.)
Operating Temperature +14oF`+122oF / -10oC`+50oC
Operating Humidity 15%~85% RH





(Monitor shown with magnetic base installed)



Package Contents

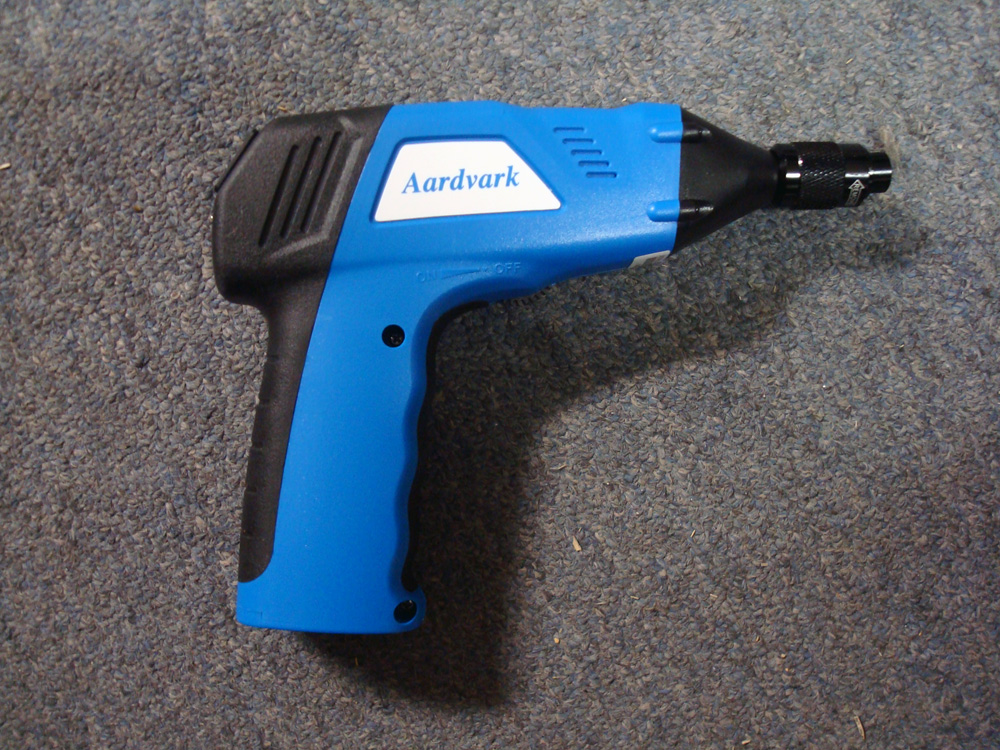

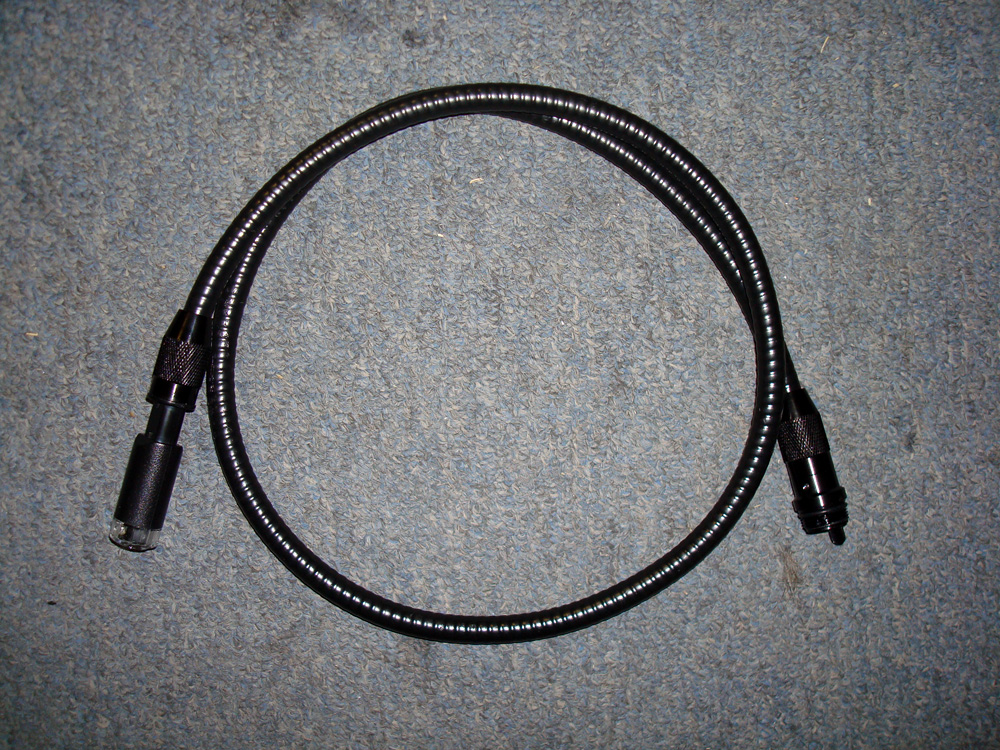

Main Unit 9mm Camera Head Monitor/Recorder

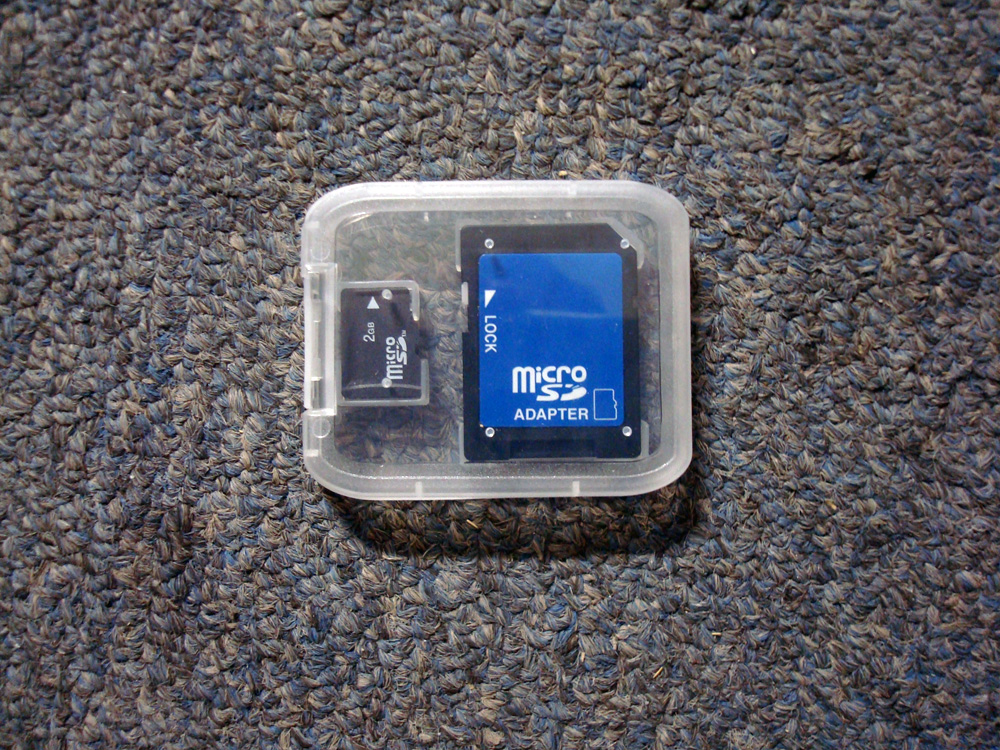

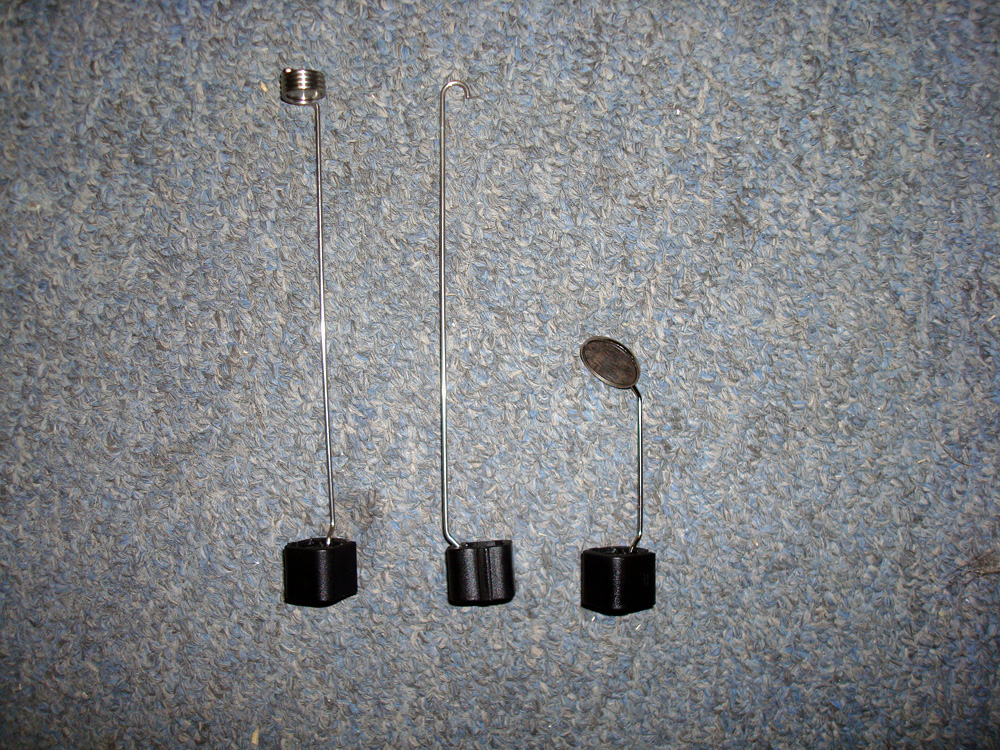

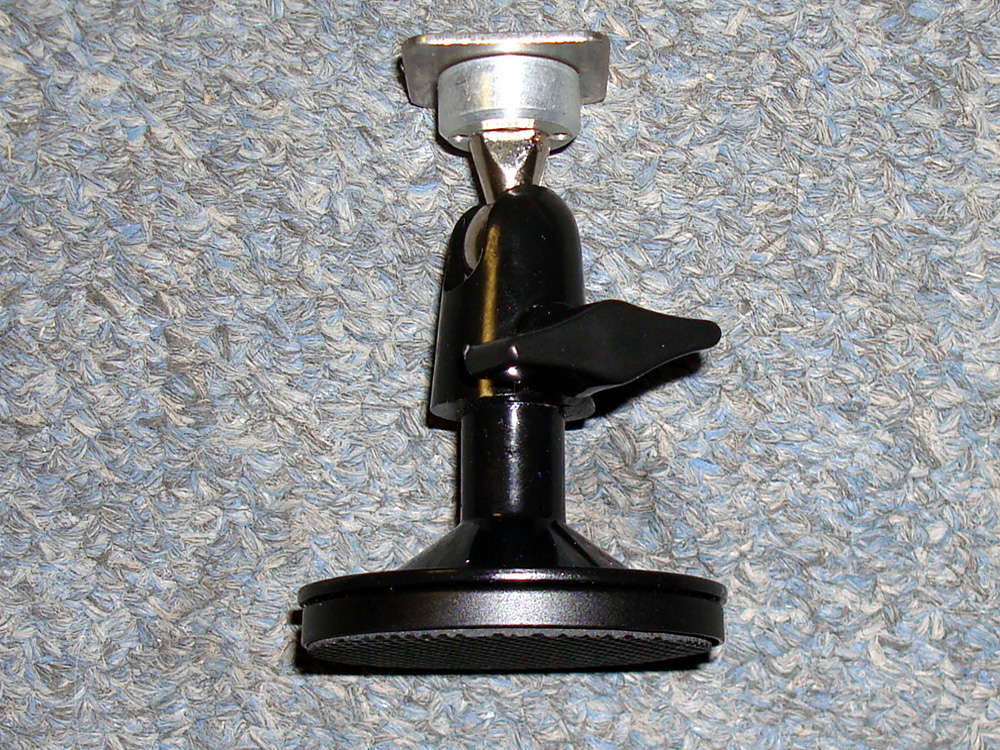

Magnetic Base 2GB uSD Card Tools for 17mm camera head

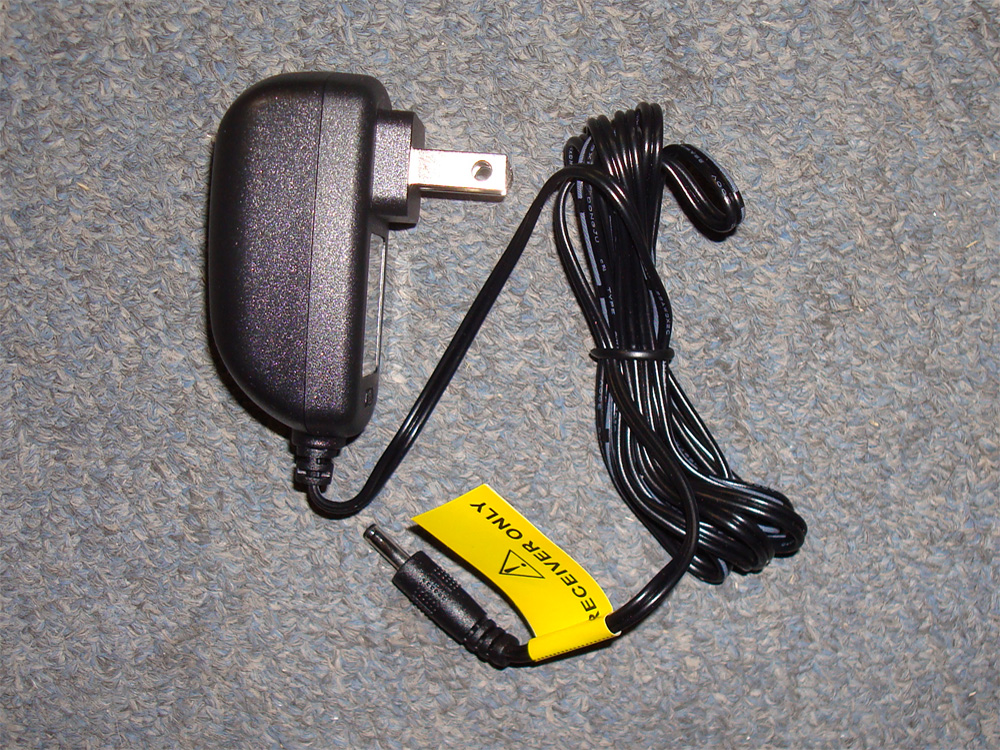

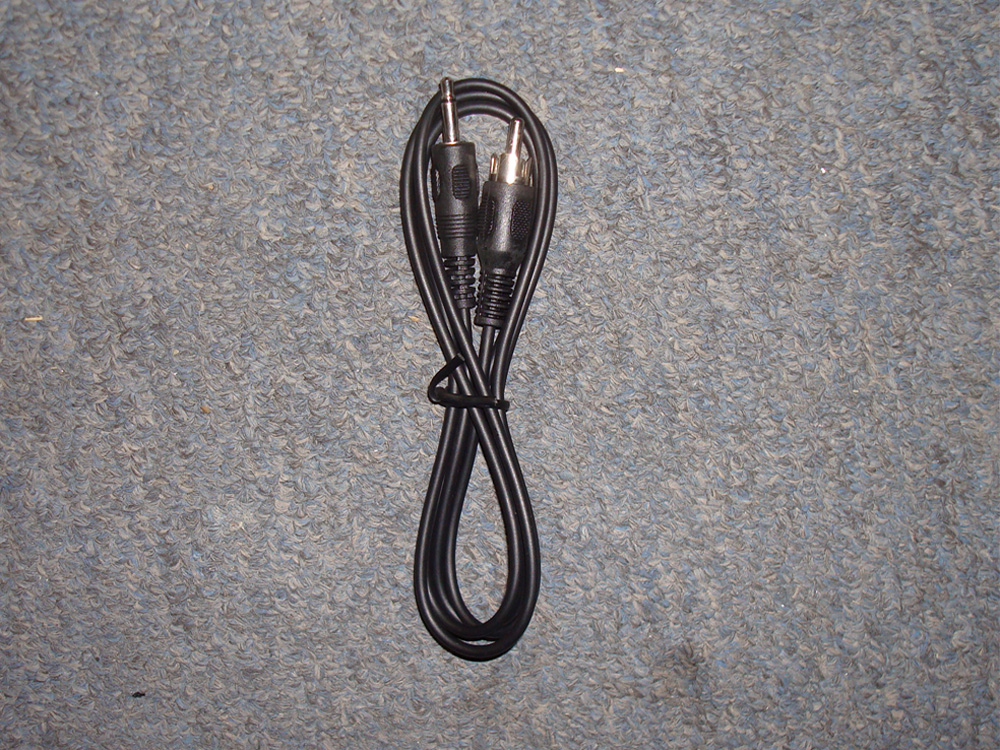

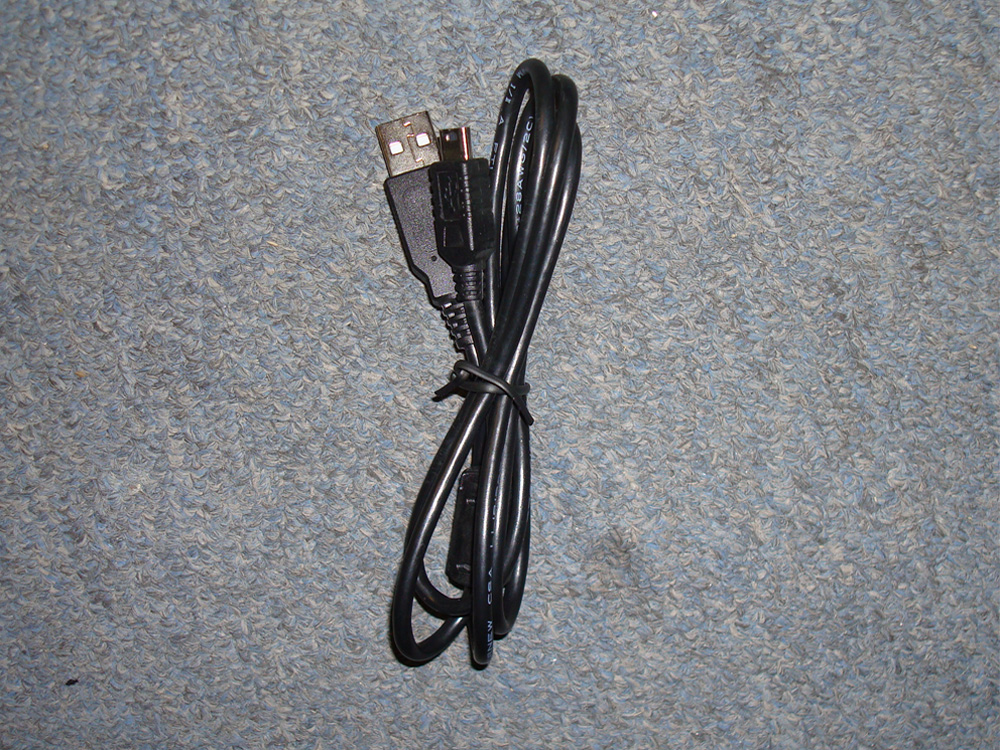

Charger Video Cable USB Cable

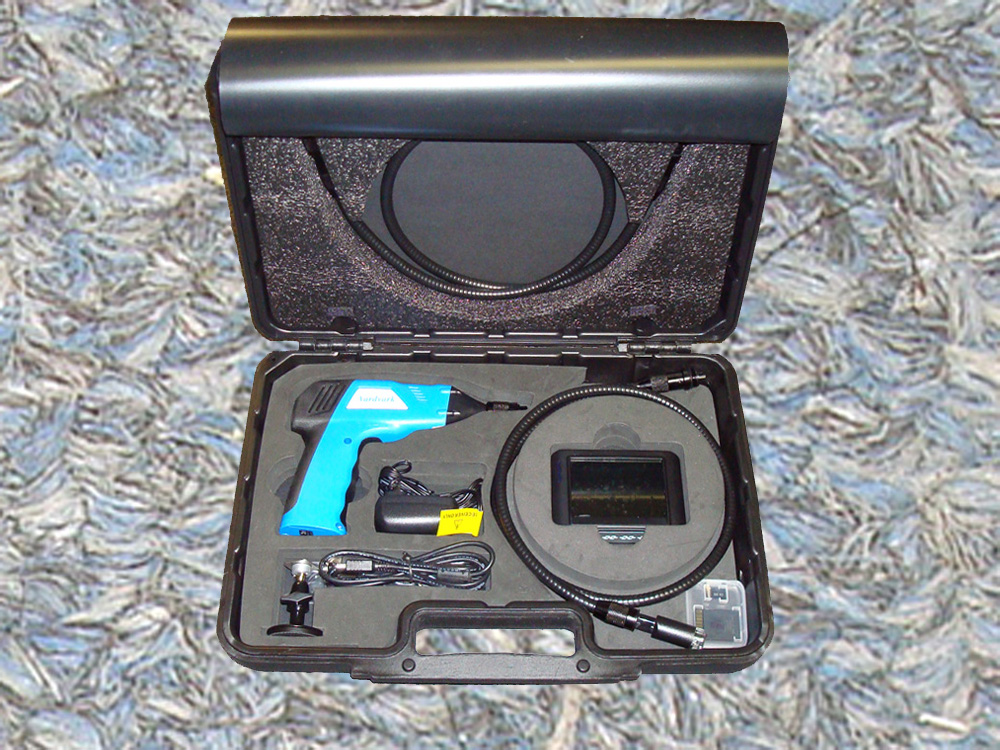

Form Fitting Clamshell Case

Scroll down for Available Accessories
