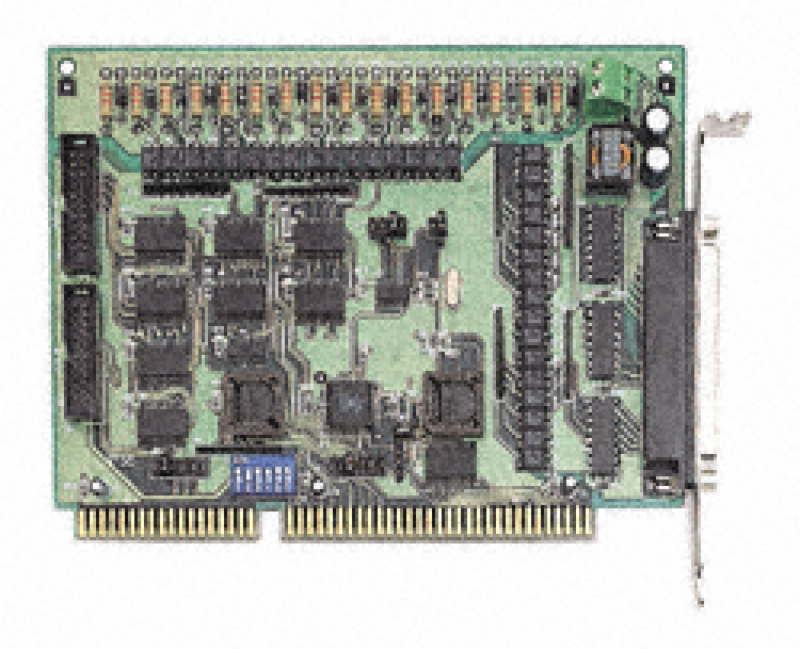

32-Channel Isolated Digital Input/Output Card

Availability:

15 In Stock

Item: ACL-7130

Quantity	Price
1	$ 98.000

Quantity :

Add To Cart

Continue Shopping

The ACL-7130 provides 32 isolated digital I/O and 32 TTL digital I/O channels. The isolated I/O channels are isolated to 2,500 Vrms (excluding cables), both channel-to-channel and channel-to-computer. It protects your computer against damage caused by accidental contact with high external voltage and eliminates troublesome ground loops.

Multiple interrupt sources can be selected by hardware jumper settings. Users can generate XT interrupt level (3, 4, 5, 6, 7) from CH0 and CH1 of both isolated or TTL digital inputs, or AT interrupt level (9, 10, 11, 12, 15) from internal timer pacer.

32-CH digital inputs (16 isolated and 16 TTL inputs)
32-CH digital outputs (16 isolated and 16 TTL outputs)
High output driving capability
2,500 Vrms high voltage isolation
On-board internal timer pacer trigger
Interrupt is controlled by internal timer or external signal
Double interrupt trigger
200mA sink current on isolated output channels
Up to 24V voltage protection for isolated input
37-pin D-type connector
Fully hardware and software compatible with PCL-730

Manual	ACL-7130
DOS Drivers	Borland C Library
Windows 3.1 drivers Labview drivers	ACLS-DLL1 ACLS-LVIEW
W95/W98 drivers Labview drivers	ACLS-DLL1 ACLS-LVIEW
NT/2000 drivers Labview drivers	ACLS-DLL1 ACLS-LVIEW

View Product Data Sheet
