16-CH, 12-Bit, 100 kS/s Multi-Function DAQ Cards

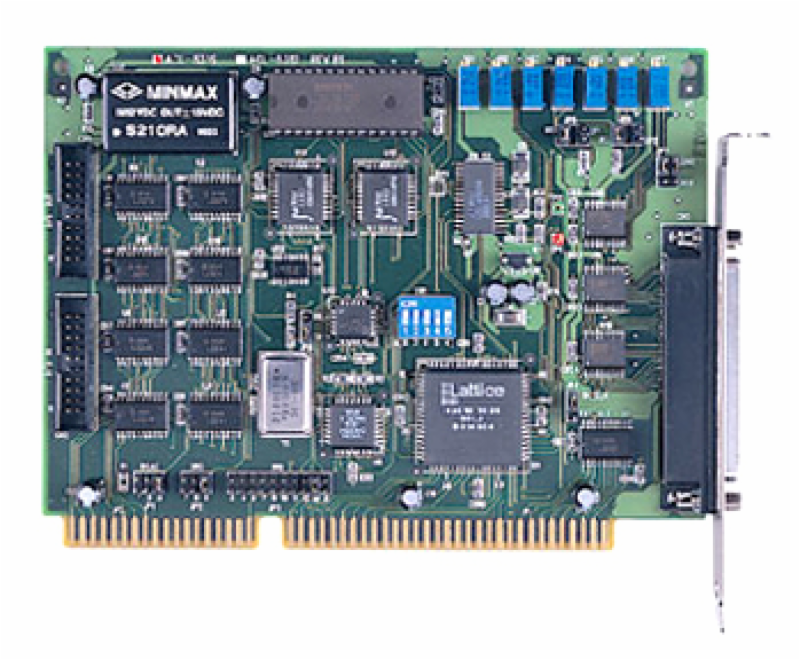

ADLINK ACL-8312 series is a high resolution and high performance data acquisition card based on the 12-bit PC/ISA bus architecture. The ACL-8312 series features continuous, high speed, gap-free data acquisition under Windows or DOS environments. An on-board FIFO buffer and 16-bit DMA data transfer allows the acquisition of large amounts of data without losing data. The channel auto-scanning enables a high-speed acquisition in a sequential order to select channel. This lite(L) version is offered for the customer who does not need any D/A analog output channels.

• 12-bit A/D resolution
• Up to 100 kS/s sampling rate
• 16-CH single-ended or 8-CH differential inputs
• On-board 1k-sample A/D FIFO
• Bipolar analog inputs ranges
• Programmable gains of x1, x2, x4, x8
• Automatic analog input scanning
