16Ch Relay Terminal Board

The ACLD-9185 is a 16-channel SPDT electro-mechanical form C relay output termination board for PC based industrial applications. It is fully connector and functionally compatible with ACLD-785 and Advantech's PCLD-785.

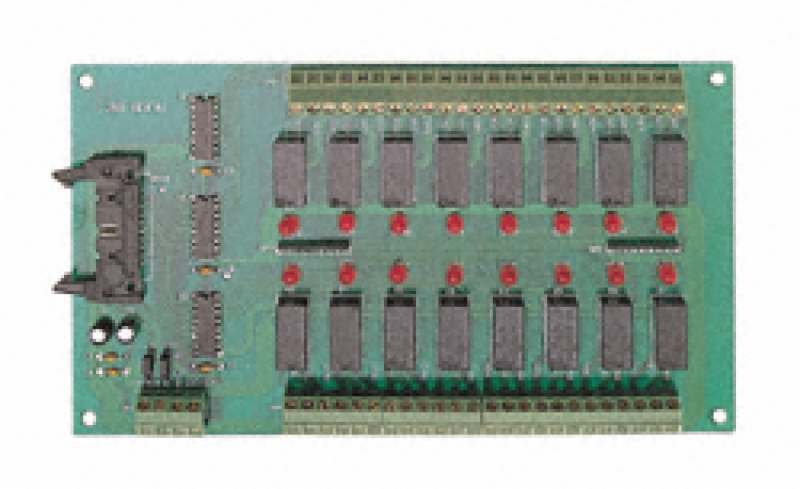

The ACLD-9185 provides 16 electro-mechanical SPDT relays which can be used by any ACL board with DIO channels on 20-pin flat ribbon connector. Each relay has an LED to indicate it's ON/OFF status.

Each relay consumes about 33mA when energized. With all relays on the board active, it takes about 0.53A from the computer's 12V supply.

The ACLD-9185 has a jumper switch allowing the user to connect an external +12V power source if desired.
