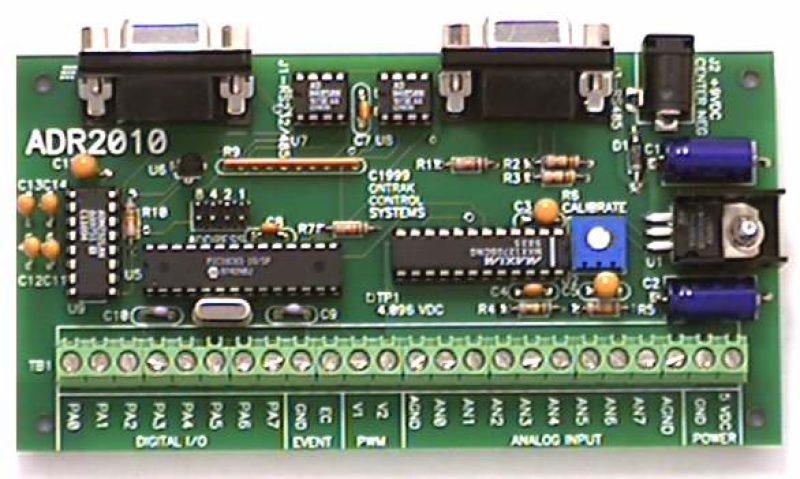

8 Ch, 12-Bit A/D +8 DIO Interface

The ADR2010 serial data acquisition interface allows control of 8 digital I/O lines and 8, 12-bit analog inputs ( 0 - 5VDC, 0-10VDC, +/-5VDC, +/-10VDC ) , two PWM outputs and one event counter via an RS232 or RS485 link. This low-cost serial data acquistion interface is easy to use with Visual Basic, Basic, C or other high level languages that allow access to a serial port. The ADR2000 series of data acquisition interfaces are daisy chainable up to ten units. All ADR2000 series boards contain RS232 to RS485 convertors. ( Dimensions, 5.4" X 2.8" )
