4 Channel Real-Time Video Capture PCI Card

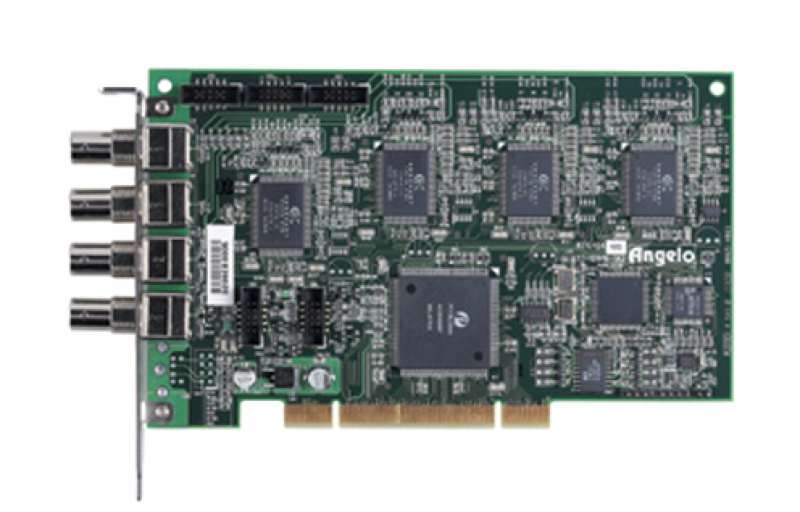

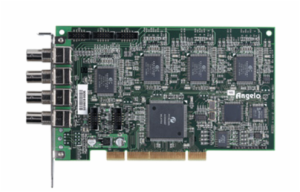

The RTV-24 acquisition board is designed without compromise for security and video surveillance applications. It's the ideal device for PC based multiple-channel digital video recording. This 32-bit, 33MHz/66MHz PCI bus frame grabber can capture simultaneously four analog video streams in real time. It accepts standard composite colors (PAL, NTSC) or monochrome video formats (CCIR, EIA). The resolution is programmable including square-pixel (640 x 480 or 768 x 576) and broadcast resolution. Before captured images are transferred to the PC's memory, images can be scaled down using available selectable ratios. Arbitrary cropping to regions of interest is possible. The RTV-24 generates bitmaps in all popular color formats such as RGB, YUV, planar or packed. System integrators also benefit from a watchdog for fault-tolerant applications and easy-to-use standard connectors.

• Four color video digitizers operating in parallel
• Up to 120fps in 32-bit, 33MHz/66MHz PCI bus
• Color (PAL / NTSC), monochrome (CCIR / EIA) camera
• Up to 16 channels extension
• On-board TTL I/O lines
• Built-in watchdog timer
• Protection circuit for security issue
• User Friendly ViewCreator utility
