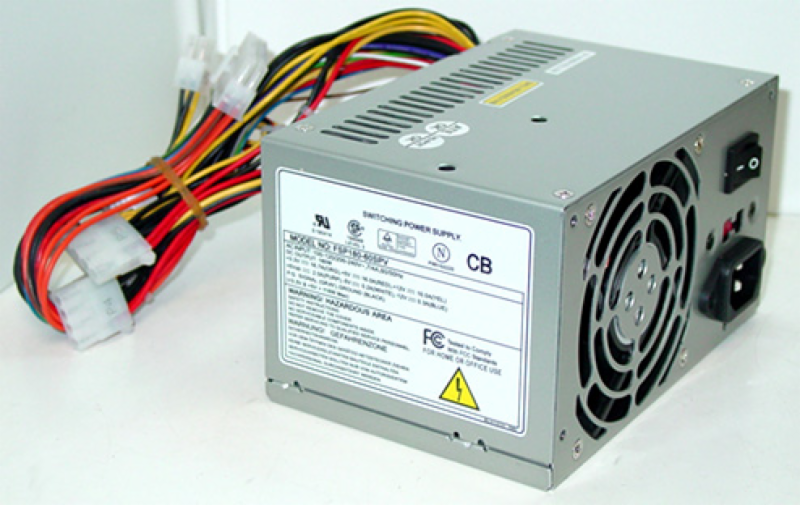

180 watt MicroATX PS/3 (Fits HP & other systems)

Availability:

2 In Stock

Item: ATXFSP180-60SPV

Quantity	Price
1	$ 29.950

Quantity :

Add To Cart

Continue Shopping

Features

High efficiency Internal 12 VDC fan included

Low noise and ripple
Complies with FCC part 15 subpart J class B VAC operation and CISPR 22
Output over voltage protection
Short circuit protection on all outputs
MTBF above 50,000 hrs. at 40° C
100% Hi-pot & ATE tested
Short circuit protection on all outputs
Resettable power shut down
100% burn-in under high ambient temp. (50° C)
Approved by UL 1950, CSA C22.2, IEC 950, TUV EN 60950, NEMKO + CB Report

Specifications

Temperature Range: Operating 0° C ~ 40° C; storage & shipping -20° C ~ 65° C
Temperature Coefficient: 0.01% / ° C
Transient Response: Output voltage returns in less than 1 ms max. at a 25% load change
Hold-up Time: 16.6ms minimum at full load & nominal input voltage
Dielectric Withstand: Input to frame ground 1800 VAC for 1 second
Humidity: 95% RH
Efficiency: 65% minimum measured at normal AC mains voltage and frequency with maximum loads on all outputs
Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1 ms minimum
Overload Protection: 150% Max.
