Microprocessor Controlled Battery Charger

$17.99 Each Any Quantity!

Offer Limited to Stock on Hand..No Back Orders at this price

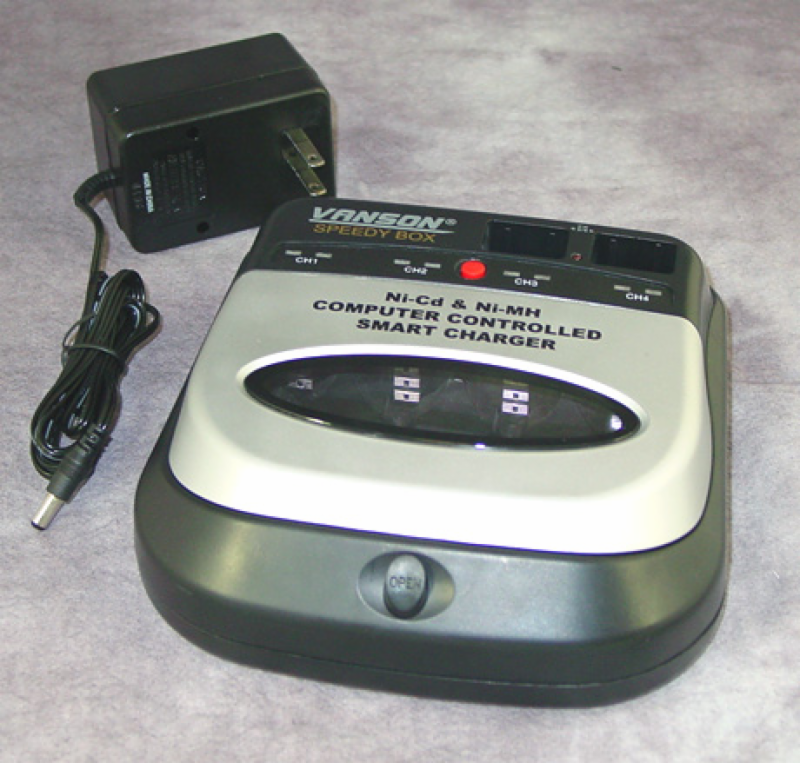

A Simple to use & Intelligent MicroProcessor Controlled Charger

The BC-1HU is great when you need a versatile, intelligent charger that can handle everything AND is very easy to use. This is a true smart charger. It will not overcharge batteries. It is rugged & well enginered and easily handles high capacity "D" & "C" cells and the user can mix Ni-CD & Ni-MH batteries & charge at the same time.

Bateries can be charged in singles or groups. The BC-1HU uses constant current pulse charging and also identifies defective cells & features auto charge/discharge curent selection for the different sized batteries.

Features and Benefits:

• Easy to use, FAST and Universal for different types of batteries (AA, AAA, C, D, and 9V).
• Intelligent microprocessor controlled
• With negative delta V (- delta V) cut-off function for better life time battery performance
• Use constant current pulse charging system
• Each charging group is individual programmable in its function

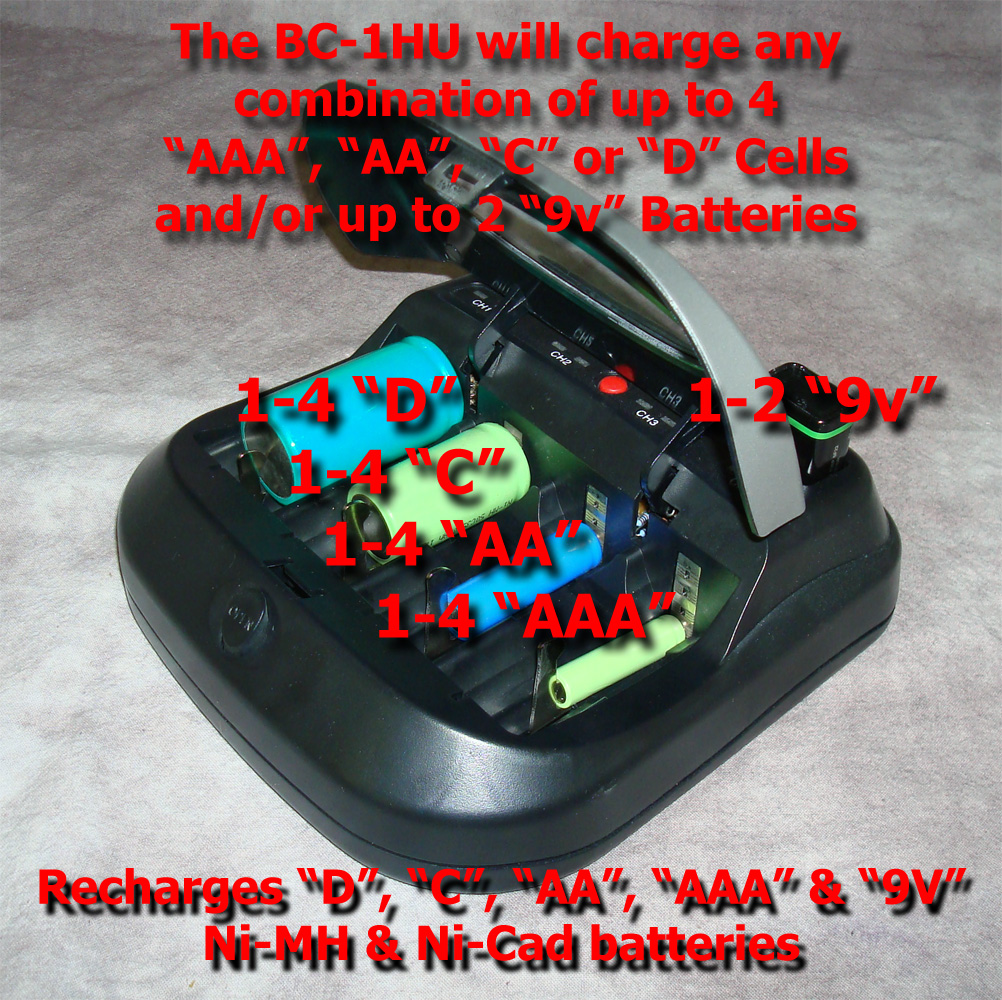

• Recharges batteries in all capacities - 1 to 4pcs AAA, AA, C, D and 1 to 2pcs 9V
• Ni-MH and Ni-Cd batteries can be mixed to charge at the same time
• Recharges batteries in single or group
• Automatic charge and discharge function
• Automatic charge/discharge current selection for the different size of batteries
• Identification of defective cells
• Over temperature and short circuit protection
• Protection against wrong polarity
• Individual LED to indicate discharge, fast charge and trickle charge
• Maximum charging timer control for overcharge protection
• Charging time for different types of empty batteries:
• AAA size: Rated capacity: 180mAh-800mAh; Charging time: 1-3 1/2 hrs. Charged by constant current at 350 mA.Timer control at 3.5 hours.
• AA size: Rated capactiy: 500mAh-2500mAh; Charging time: 1 1/2-4 hrs. Charged by constant current at 820mA. Timer control at 4.5 hours.
• C size: Rated Capacity: 1200mAh-5000mAh; Charging time: 2 1/2-5 1/2 hrs. Charged by constant current at 820 mA.Timer control at 9.5 hours.
• D size: Rated capacity: 1200mAh-10000mAh; Charging time: 3-10 1/2. Charge by constant current at 820 mA. Timer control at 17 hours.
• 9V block size: Rated capacity: 100mAh-250mAh; Charging time: 6-11 hrs. Charged by constant current at 20 mA. Timer control at 14 hours.

BC-1HU Userguide
