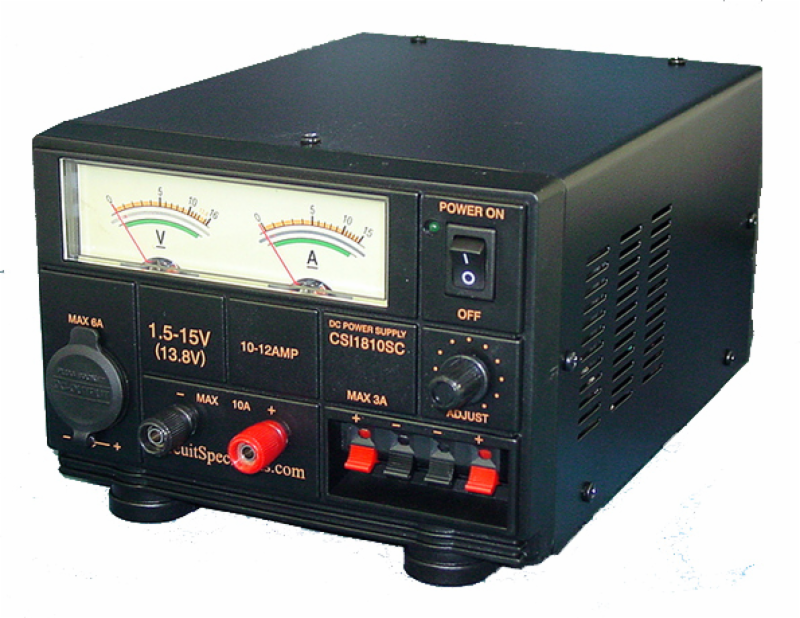

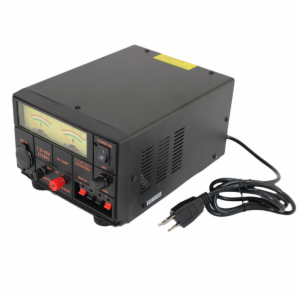

Adjustable Heavy Duty DC Regulated Bench Power Supply 1.5V-15V/12A
Individual Product Details:
The CSI1810SC Series DC Power Bench Supply provides adjustable voltage output from 1.5VDC to 15VDC and 12A of current. It uses an analog display to show output voltage & output current. Several output connectors are provided to make it very convenient & flexible so it will adapt to your specific needs. The heavy duty construction of this bench power supply will ensure years of trouble free use. This item is ideal for powering two way radio that require up to 12 amps in the transmit mode.
Features of the CSI1810SC Series DC Power Bench Supply:
- Input Voltage: 110V±5%, 60Hz±2Hz
- Output Voltage: 1.5V-15V continuous
- Max. Output Current: 12A
- Protection: Current Limitation, Short Circuit
- Temperature: 32°-104°F
- Dimensions: 6.8 x 11.2 x 5.08"
NOTICE:
This Bench Power Supply and others manufactured like it, can have up to a 2.5Amp LOAD attached to the power output terminals at the time the supply is switched ON. If the user of the power supply wishes to control a LOAD greater then 2.5Amps at the time of power up, then a separate switch is required for turning ON the Load after the power supply has been turned on.
If your LOAD is equipped with a switch then that switch will be good enough for this operation.
For operating LOADs greater then 2.5Amps, the Power Supply must be turned on FIRST, then the LOAD can be switched on. This will ensure proper operation of the power supply.
View Product Manual
for this bench power supply
These bench power supplies are rated using typical use parameters. They are robust and ratings are not overstated. However continuous use at max load rating will generally result in transformer failure within a few days.
