0-40 Volt / 0-10 Amp DC Bench Power Supply w Adjustable Current Limiting

Adjustable 0-40 Volt / 0-10 Amp DC Power Supply

with Adjustable Current Limiting

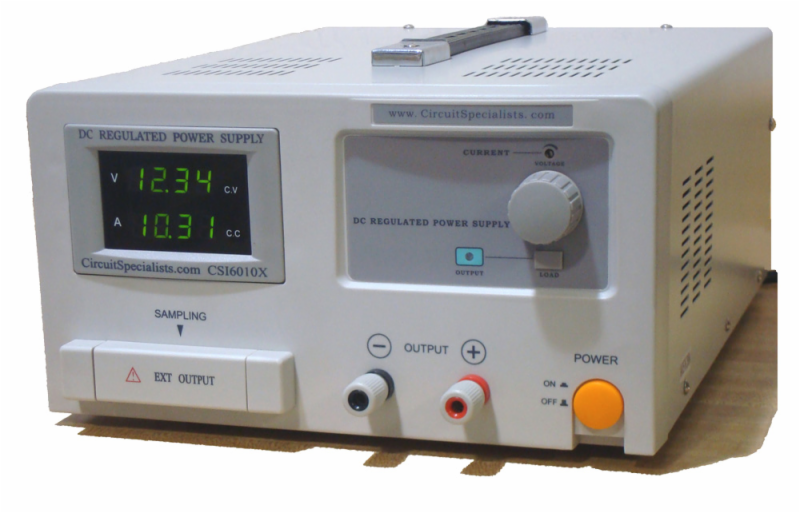

The CSI6010X is a regulated linear bench power supply with adjustable current limiting.  The LED display shows both Volts & Amps.  The current output can be preset by the user via a front panel screwdriver adjustment screw while the voltage is adjustable by a front panel multi-turn knob for precise voltage settings.  Output is by front panel banana jacks and there is also a covered terminal strip for remote voltmeter sensing at the load. This bench power supply provides precise outputs and allows the user to preset the current.

Bench Power Supply Features:

• Utilizes SMD technology
• Pre-Settable Voltage & Current levels
• Front Panel On/Off Switch
• Large LED readout for Voltage & Current
• S+ & S- Sampling terminals

Bench Power Supply Specifications:

• Voltage 0-40 VDC
• Current 0-10 Amps
• Ripple & Noise
  • CV 2mV rms
  • CC 5mA rms
• Dimensions WxHxD 265mm x 140mm x 360mm
• weight: 13kg

Users Manual
