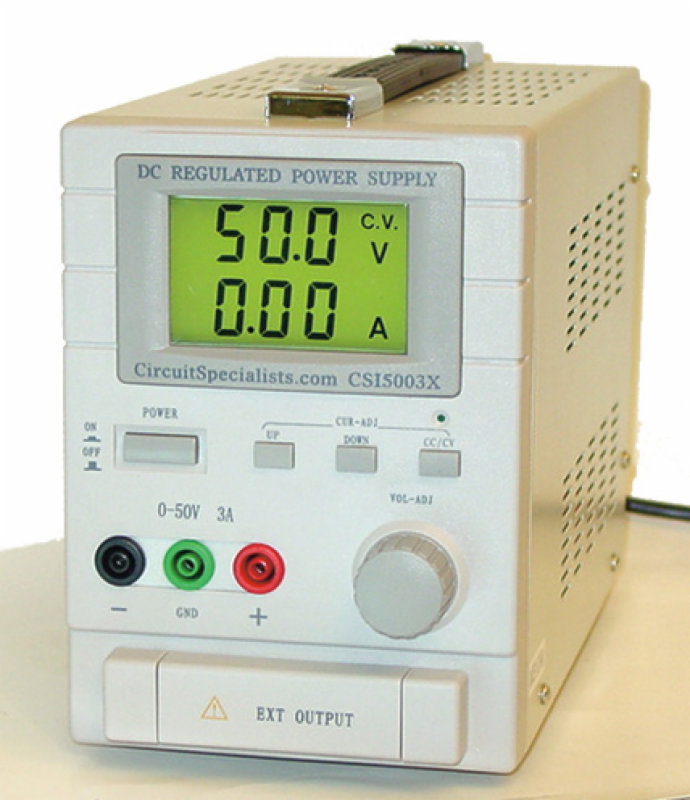

0-50VDC 0-3A / 5VDC 1A, Dual Output Bench Power Supply

The CSI5003X5 is a high stability LCD digital read-out bench power supply featuring constant voltage and current outputs. Short circuit and current limiting protection is provided. SMT PC boards and a built-in cooling fan help ensure reliable performance and long life.The perfect choice for lab and educational use. 1A, 5VDC fixed ouput is on the rear panel. This benchtop power supply is adjustable from 0-50VDC with up to 5 amps of current. This bench power supply is similar to units costing as much as twice this amount.

CSI5003X5 Bench Power Supply Features

• SMD adhesive sheet element technology for internal pcb construction
• Attractive green large LCD display
• Built in cooling fan
• Multiloop high precision voltage regulation
• Progressive current regulation
• Dual terminal system. Safety test style or expandable screw terminals
• Overload protection circuit
• Low ripple voltage: <1mV P-P
• Output polarity: positive or negative
• Rugged reinforced metal frame construction
• Source effect: 5 x 10(-4) =2mV
• Load effect: 5 x 10(-4) =2mV
• Ripple coefficient: <250uV
• Stepped current: 30mA +/- 1mA

Includes: (1)Banana to Aligator & (1)Spade to Open End Cables

Bench Power Supply Manual: View Product Manual

Benchtop power supply schematic: schematic
