Linear Bench Power Supply, Adjustable 0-30V/0-5A

Item no. CSI530S
Qty
Price
1+
$82.950
4+
$74.950


Product discontinued
  • Manual
  • Spec sheet

  • MSDS data

  • ROHS statement

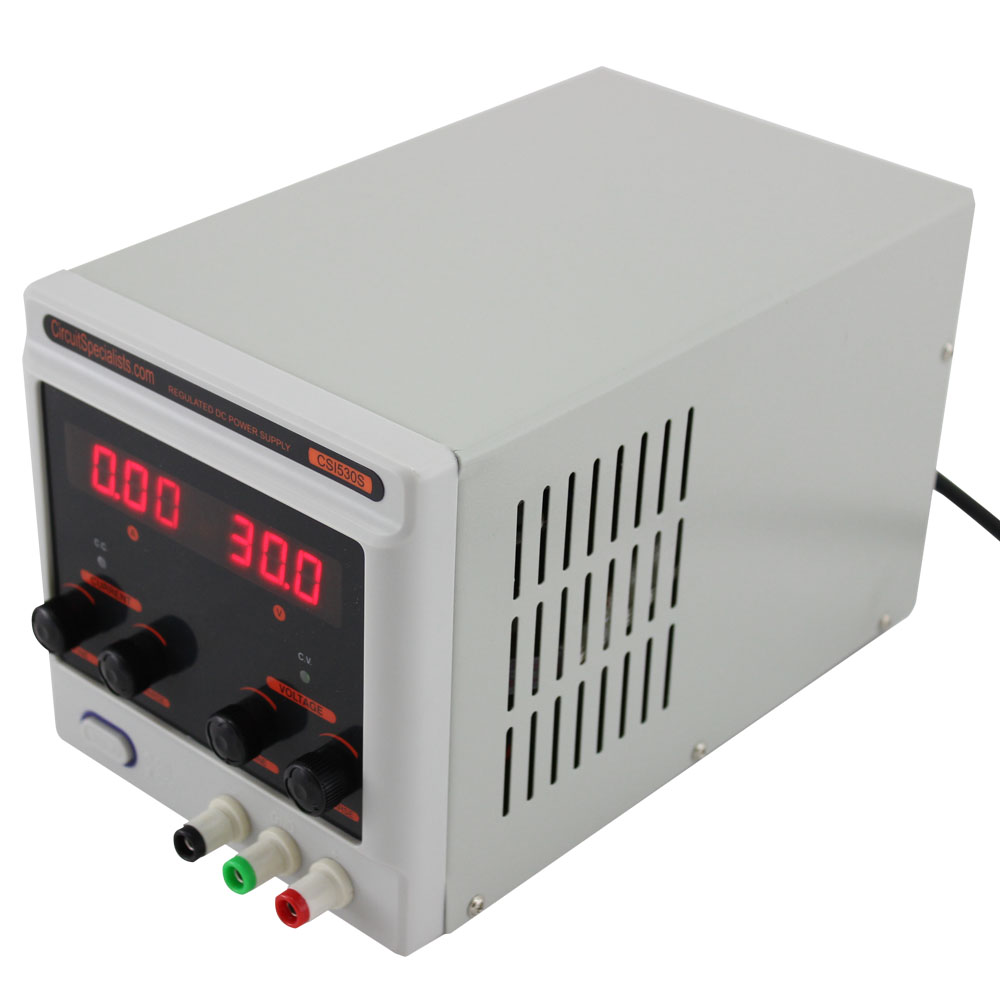

0-30V / 0-5A Adjustable Linear DC Bench Power Supply

The CSI530S is a heavy-duty regulated linear DC bench power supply which you can adjust the current and the voltage continuously. An LED display is used to show the current and voltage values. The output terminals are safe 4mm banana jacks. This bench power supply can be used in electronic circuits such as operational amplifiers, digital logic circuits and so on. Users include researchers, technicians, teachers and electronics enthusiasts. A 3 ½ digit LED is used to display the voltage and current values.

Bench Power Supply Specifications:

  • Input voltage:110V +/-10%
  • Frequency range: 60Hz
  • Input current: 3A
  • Output: DC 0~30V, 0~5A
  • Voltage regulation
  • (C.V.): 3mV0
  • (C.C.): 15mA
  • Ripple: 3mVrms
  • Operating temperature: +0° C~ +40° C
  • Cooling: DC Fan
  • Storage temperature: -20° C ~ +80° C
  • Storage and operating humidity: 80%RH
  • Altitude: 2000m
  • Pollution Degree: 2
  • Dimensions: 260(L)x150(W)x160(H)mm
  • Net weight: 5.3kg
  • Gross weight: 6kg

Users Manual
