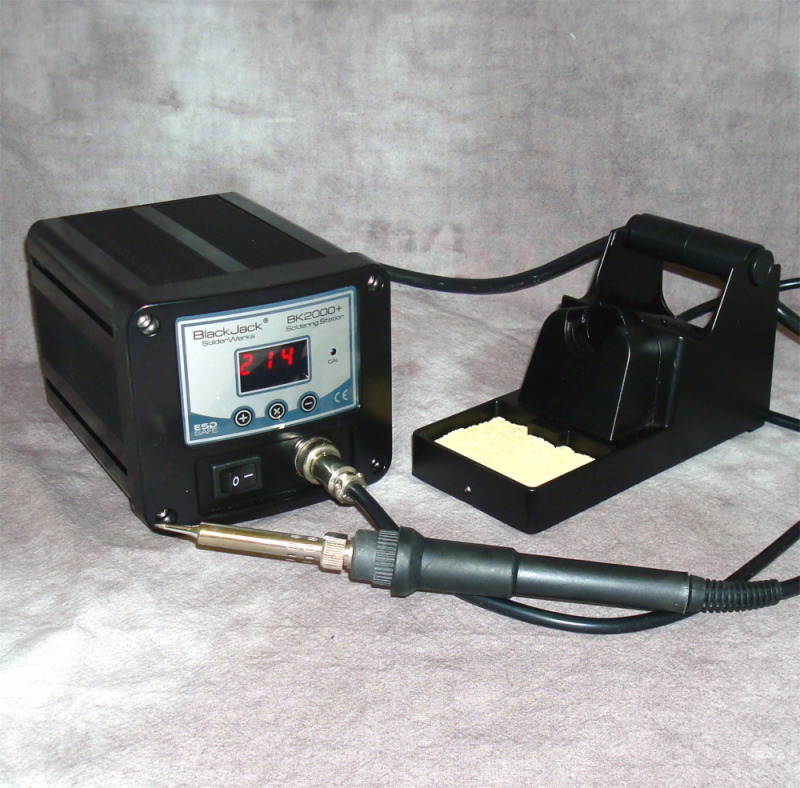

Digital Display Soldering Station

The BK2000+ is a compact soldering station that provides reliable soldering performance featuring microprocessor control and digital LED temperature display. Temperature is set by pushing independent "+" or "-" buttons and the set temperature is displayed via numeric LED. The default temperature (200 deg F) setting can be quickly accessed by pushing the "X" button and if the user depresses all three buttons simultaneously, the LED display will show the actual temperature at the tip of the soldering iron.....

The chassis is manufactured with very attractive extruded aluminum providing the high tech look that is consistent throughout the BlackJack SolderWerks series of soldering and rework systems.. The BK2000+  soldering station features a grounded tip for protection against electrostatic discharge. The unit comes with a soft comfort grip pencil iron and a rugged detached aluminum iron holder for more convenient operation. This soldering station is calibrated at the factory but there is a convenient calibration port on the front panel for users that desire to recalibrate or check calibration. This requires a contact thermomenter at the tip.  Also included at no additional charge is one user replaceable ceramic heating element. A broad selection of tips are available and extra pencil irons are also available. We also have an optional SMD Hot Tweezer adaptor that plugs into the BK2000+ soldering station that is very handy for smd component work.

• Microprocessor control
• Numeric LED to display set temperature or actual tip temperature
• Temperature Stable Ceramic element
• Easy to Replace Soldering Iron (not hard wired)
• Grounded Tip & Barrel to prevent ESD damage
• 24V Iron Operation Soft Comfort Grip Pencil Iron
• Iron Holder is Detached, Rugged aluminum construction
• Includes one FREE replacement ceramic heating element
• Fused AC input
• non skid rubber feet on base

Downlaod the BK2000+ Instruction manual (PDF)

• Power Consumption: 35W  peak
• Output Voltage: 24V
• Temperature Range: 200-480°C/ 392-896°F

• Power consumption: 24 VAC, 35W
• Tip to Ground Resistance: Under 2 ohms
• Tip to Ground Potential: Under 2mV( Typ. 0.6mV)
• Cord assembly: 1 M with strain relief at iron
• Comes with 0.8mm diameter conical fine tip
