Deluxe Hot Air Station with Hot Air, Soldering Iron, Suction Gun & Mechanical Arm

Item#: BK6000
BLACKJACK SOLDERWERKS DELUXE R
Availability: Available For Back Order
Quantity Price
1 $ 229.000


Quantity
Add to cart

Individual Product Details:

Hot Air Station for Rework

Includes hot air, soldering iron, suction pistol and mechanical arm

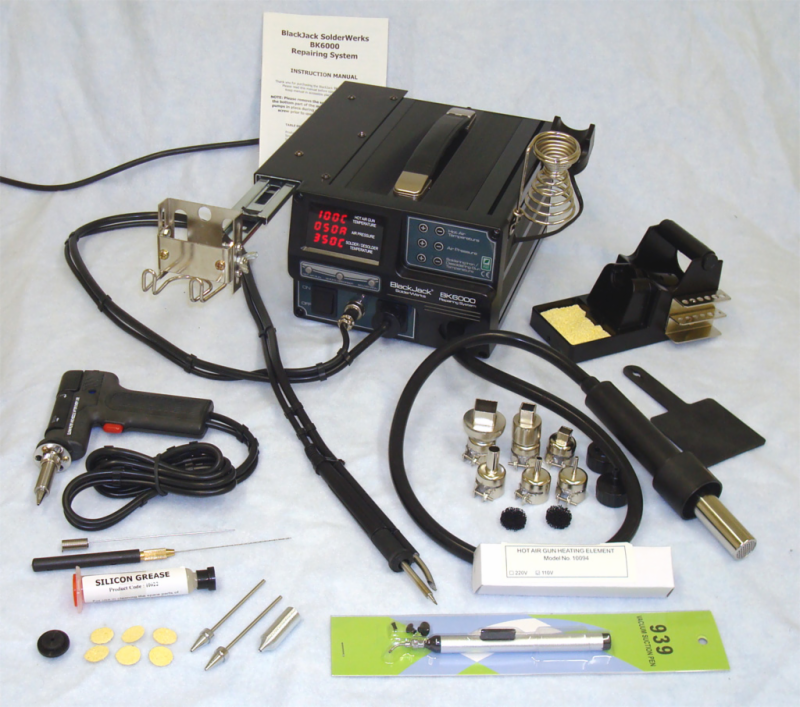

The BlackJack SolderWerks BK6000 Hot Air Station and Desoldering  rework System is a digital multipurpose reworking system that incorporates a Hot-Air Gun, Soldering Iron (compatible with leaded solder or lead free solder) with integrated smoke absorber, a Desoldering Gun and a mechanical arm.

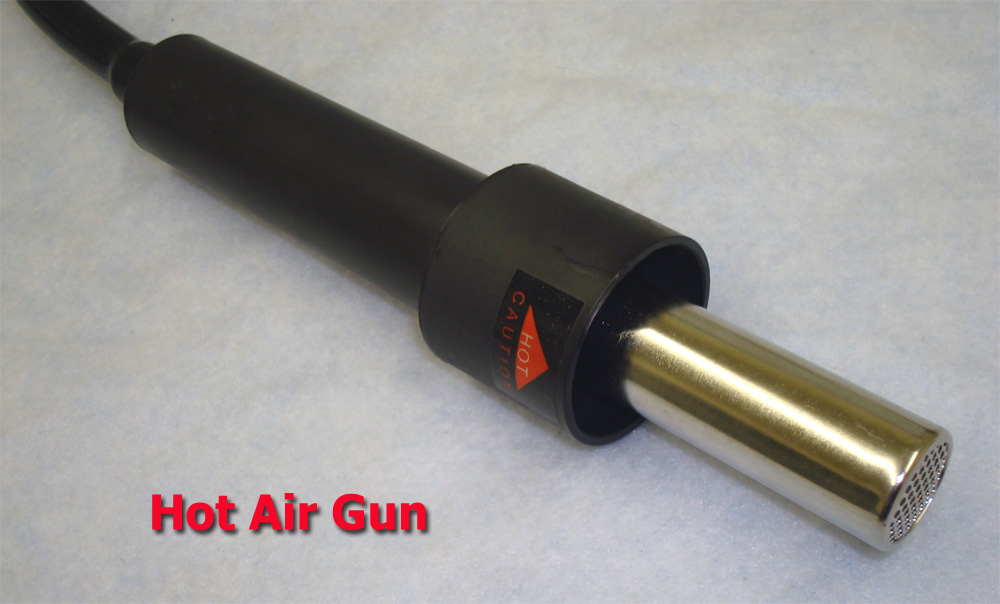

The Hot-Air gun is equipped with a triple protection system which provides (1) System Cool-Down   (2) Auto System Sleep & (3) Overheat Protect.  The System Cool-Down feature removes residual heat from the hot air gun nozzle when the hot-air function is switched off. This will allow the nozzle to cool quicker & also prolong the life of the heating element.  The Auto- System Sleep feature puts the hot air gun into sleep mode after a period of time (user definable from 1 to 20 minutes) of non use while the hot air gun is in its cradle. When the user picks up the gun, the system will revert back to the settings in use prior to the period of non use. The Overheat Protect mode incorporates a thermal fuse in the handle of the hot air gun that unlatches when an overheat is detected. The fuse will re-latch after the gun has cooled down.

 The soldering iron is a lead free compatible system ( will also work with leaded solder). It features fast heat up & recovery to ensure quick & easy soldering at any temperature setting. In cases where the tip temperature needs to be calibrated, the Digital Offset feature allows the user easy calibration to account for larger or smaller tips  with a few pushes of front panel buttons. The iron also incorporates an auto sleep function which turns the iron off if no user input has been detected. This feature may be set as active or inactive. Also included on the soldering iron is an integrated smoke absorber.

Finally, a suction activated desoldering gun is also incorporated into the BK6000. This system provides the operator with a complete comprehensive system to make rework and repair easier and more efficient.

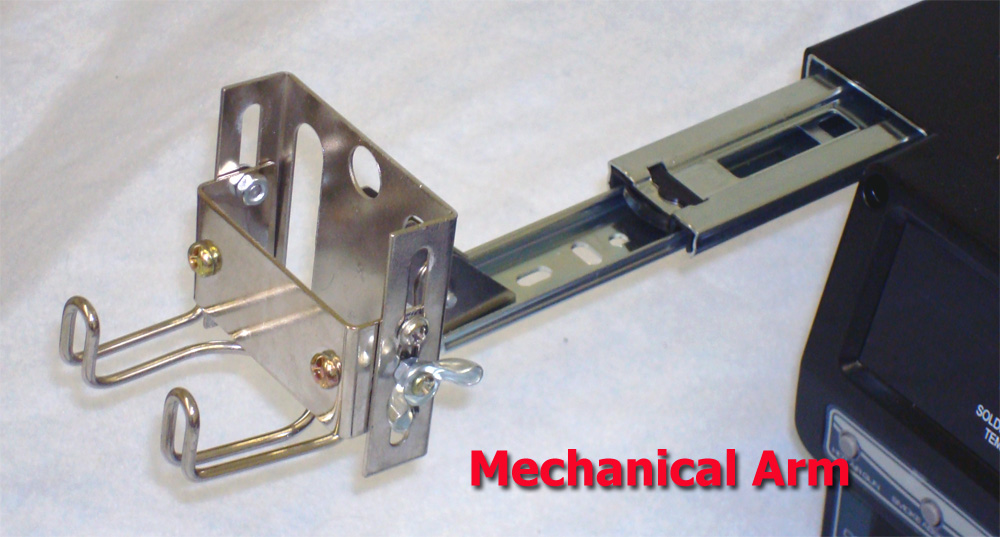

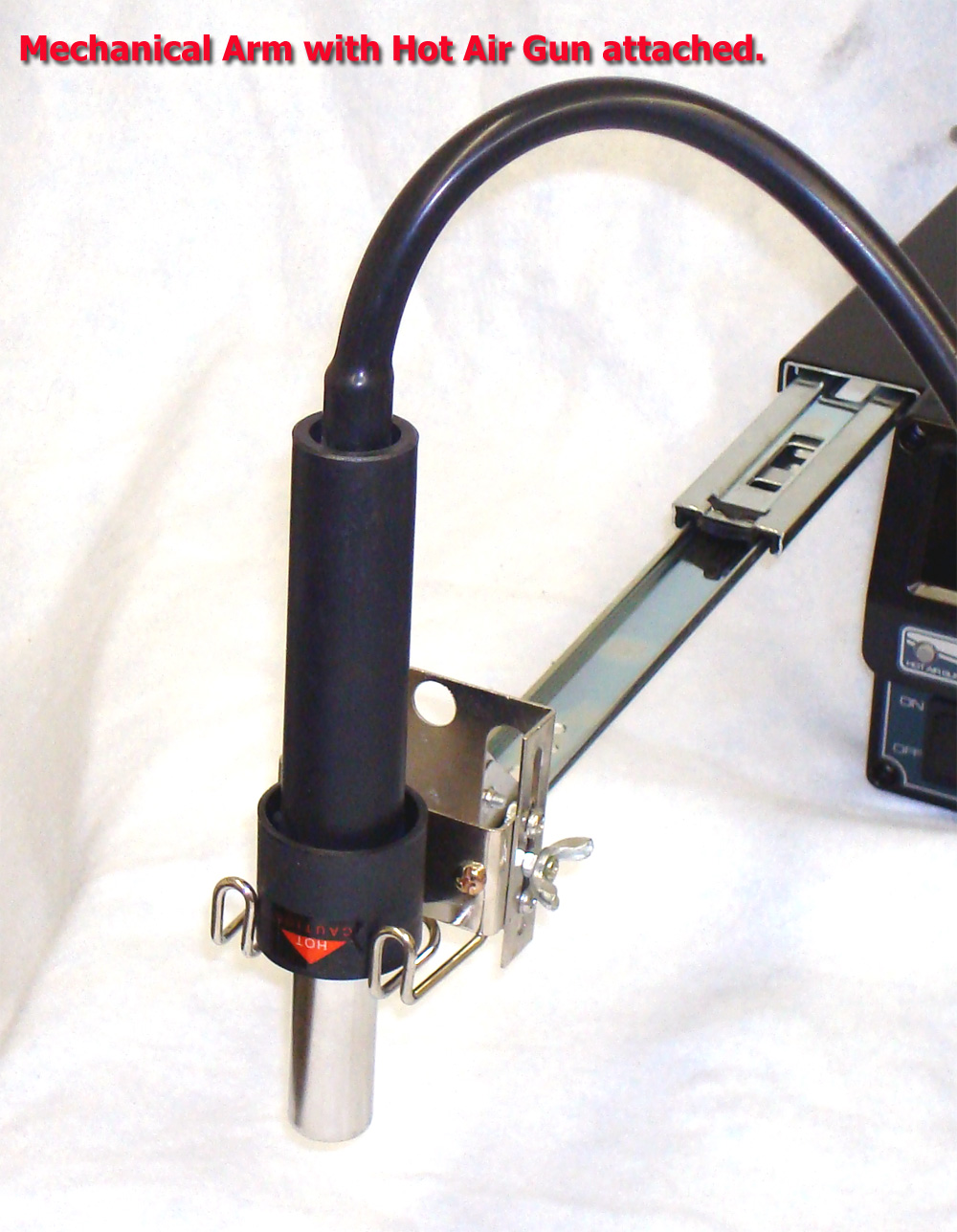

A handy mechanical arm is included with the BK6000. This arm is easy to install and is used with the Hot Air gun to provided an "extra hand" to the operator making for faster & easier repairs. Using and/or installing  the mechanical arm is optional as the system is fully functional without it.

BlackJack SolderWerks is a premium Circuit Specialists brand. Fabricated exclusively for us, the BlackJack SolderWerks series features a high tech look, incorporating extruded aluminum enclosure fabrication as well as advanced features and performance found in much more expensive brands.

We stock a large selection of hot air nozzle heads which may also be viewed on this page.
Hot Air Station Features:
  • All in One system. Combines the function of a Hot Air Gun, a Soldering Iron and a Desoldering Gun
  • Microprocessor controlled ESD safe unit. All digital display of hot air temperature, soldering iron temperature, desoldering gun temperature and air pressure with touch type panel controls
  • The desoldering tool comes with zero crossing circuitry preventing electrical surges and is equipped with air cylinder type strong suction vacuum pump
  • The 24V soldering iron is compatible with the compound tip design by connecting the ceramic heater, sensor, control unit and tip as one. Designed for efficiency. Replacement of tips with easy slip in/out method
  • Integrated smoke absorber functionality with filter pad to efficiently absorb and filter harmful fumes
  • User configurable 1-to-20 minute idle-to-auto stand-by mode (5 minutes is default) for additional device protection and power saving
  • Built-in auto-cooling process that protects the system and it's components from excessive heat, prolonging the useful life
  • Built-in auto-sleep mode for soldering iron and desoldering gun
  • Compatible with various type of air nozzles
  • Compatible with different kinds of tips
  • Full compliment of nozzles & tips are available

Hot Air Station Specifications:

Main Station

  • Power Input: 110V
  • Dimensions: 188mm(w) x 126mm(h) x 250mm(d)

Soldering Iron

  • Power Consumption: 70W
  • Temperature Range: 250°C-480°C (482°F-896°F)
  • Heating Element: Ceramic Heater
  • Output Voltage: 24V
  • LF-2B (2mm Conical) Lead-Free Solder Iron Tip included

Hot Air Gun

  • Power Consumption: 500W peak
  • Temperature Range: 100°C-480°C (212°F-896°F)
  • Heating Element: Metal Heating Core
  • Pump/Motor Type: Diaphram Pump
  • Air Capacity: 23l/min (max)

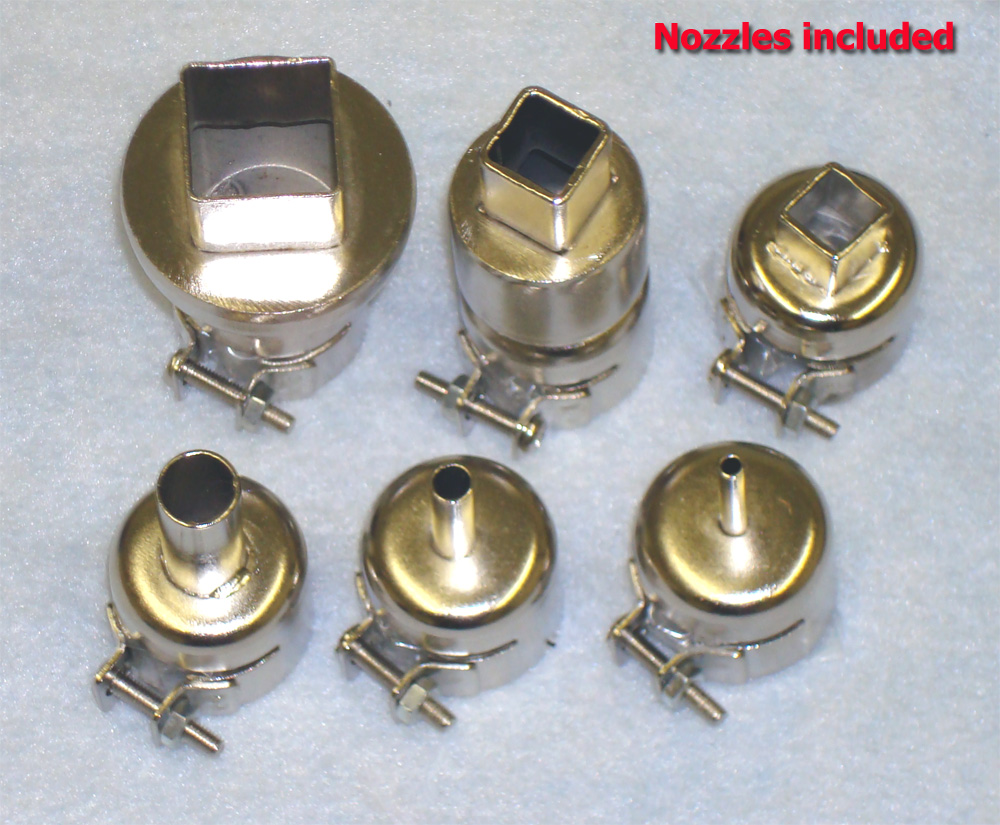

Hot Air Nozzles included:

  • TBGA-M (12 x 12mm BGA)
  • A1124     (2.5mm Straight Single)
  • A1130     (4.4mm Straight Single)
  • A1197     (9.0mm Straight Single)
  • A1313     (12 x 12mm BGA)
  • A1919     (18 x 18mm BGA)

Desoldering Gun

  • Temperature Range: 380°C-480°C (716°F-896°F)
  • Heating Element: Ceramic Heater
  • Output Voltage: 36V
  • Suction Flow: 15l/min (max)
  • Vacuum Generator: Vacuum Pump
  • Vacuum Pressure: 600mm Hg



Downlaod the BK6000 Instruction manual    View a YouTube video of one of our customers implementing the mechanical arm

Like this item? Click on the icon below to share it with friends via email.

Our Tech Guru, George Leger, demonstrates how to remove a Quad Flat Pack (QFP) Surface Mount part with a BlackJack BK-6000 hot air rework station.
