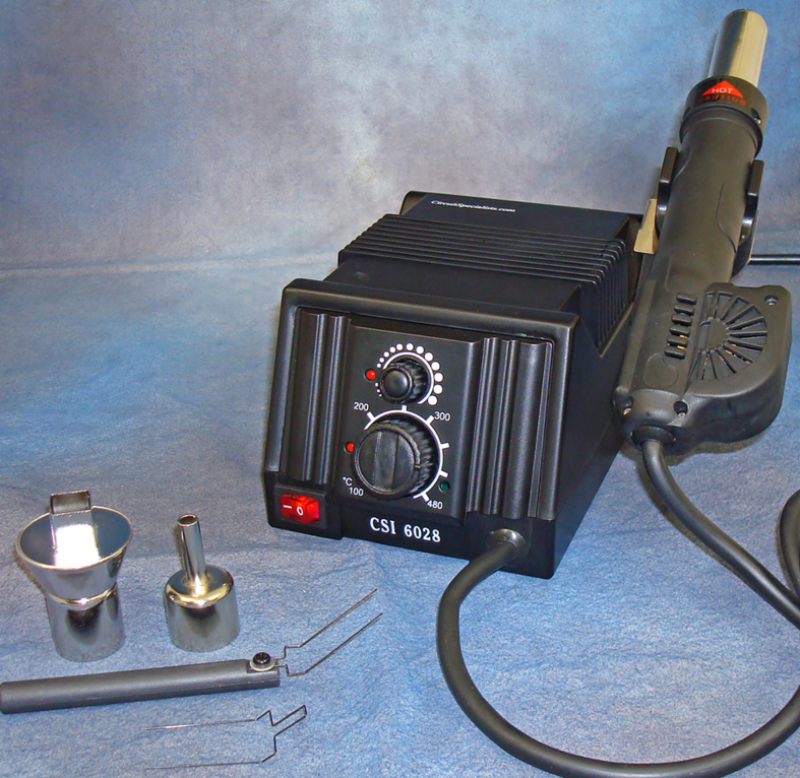

Discontinued - Sirocco SMD Rework Unit

The CSI-6028 is a small yet powerful rework system. The Sirocco style fan induces seamless airflow thru the heating element providing convection style heating, and this non-pressurized air stream works perfectly for reworking highly sensitive IC packages such as BGA, QSP, SOP and plastic based SMD devices.
The hand piece provides great handling and ease of use, while the integrated hand piece holder clears up generous space to provide maximum functionality in a single package.
The unit also provides ample safety features such as idle mode auto shut off and overheat protection. The idle mode auto shut off feature detects if the soldering gun has been placed on its holder thus triggering the system to turn off heating and shut down activity after the temperature has gone down to a safe level. Overall, it is one compact system that packs a strong punch...at a very reasonable price!

Features:

Hand held type hot air gun that simulates the purpose of a reflow oven

Sirocco fan that provides seamless airflow without disrupting adjacent components

Specially designed ESD safe hand piece for better grip

Fully adjustable airflow that enhances it's ability to solder even the most delicate components like plastic connectors

Auto cool down feature when hot air gun is placed on it's dock

Auto off feature, unit turns off heater and fan when not in use

Over-heat protection, heating element auto shuts off when temperature rises over the maximum limit to protect the system and it's components

Large control knobs for easy control of temperature and air flow

Convection style heating allowing low pressure hot air to pass target device and concentrate on the solder joints.

Includes a 7.0mm straight single nozzle, a 12 x 12mm BGA nozzle and a component lifter

Specifications:

Power Input: 110V

Power Consumption: 600W

Temperature Range: 100°C - 480°C (212°F - 896°F)

Heating Element: Metal Heating Core

Pump/Motor Type: Sirocco Fan

Fuse: 3A / 250V

Dimensions: 4.4"(w) x 3.6"(h) x 6.2"(d)

 Discontinued Item - Please check below for suggested replacements.
