mCU Controlled TRMS High Accuracy Digital Multimeter

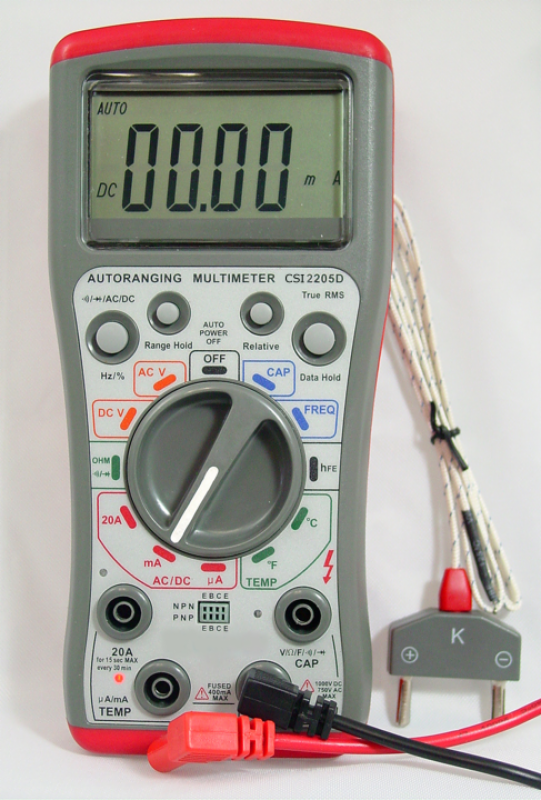

The CSI2205D Micro Control Unit auto-ranging Digital Multimeter (DMM) is designed for measuring resistance, capacitance, DC & True RMS AC voltage, DC & True RMS AC current, frequency, duty cycle and temperature, along with the ability to test diodes, transistors and continuity. A special feature included is the Auto Test Lead Input Indication Technology. This will ensure that whenever you switch functions on the DMM, the proper positive port LED will light indicating where to plug the red test lead into so that no mistakes can be made by the user. It even goes so far as to give a warning tone if you do plug the lead into the incorrect jack! A very helpful feature for the novice and even for the experienced user who is using the meter in less then ideal lighting conditions. Overall, we find this to be a meter that compares very favorably with much higher priced competitors on the market today!

Features of the CSI2205D Digital Multimeter:

• UL Listed
• NEW Exclusive Patented ATLII, Auto Test Lead Input Indication Technology.
• High Accuracy (basic accuracy 0.8%).
• 3-3/4 Jumbo LCD display 4000 count with symbolic signs.
• Auto Ranging High Voltage test up to 1000V DC and 750V Trms AC.
• Higher Current test up to 20A.AC/DC.
• Diode and Continuity check.
• Measure Resistance up to 40M?.
• Measure Temperature up to 300°C (572°F)
• Measure Frequency up to 400kHz.
• Measure Capacitance up to 100µF.
• Transistor test.
• Low Battery Indication.
• Relative measurement function.
• Range Hold, Data Hold and Auto-Off Function.
• Uses 2 X 1.5V AAA battery.
• Size: 7.4 X 3.44 X 1.32".

View Product Specifications (PDF)

View Frequency Measurement against Name Brand Meter(PDF)

View DC Current Measurement against Name Brand Meter(PDF)

View Capacitance Measurement against Name Brand Meter(PDF)

View Resistance Measurement against Name Brand Meter(PDF)

View True RMS Measurement against Name Brand Meter(PDF)
