3 in 1 FOCUSED Infrared Soldering/Repair System

ESD Safe, Focused Infrared Welding Station
For reworking BGAs, micro BGAs, QFPs, PLCCs, SOICs, small SMD and other circuit board components. Unit produces a concentrated infrared heat wave, for precision soldering. Infrared soldering eliminates movement of surrounding components, and marks on reworked PCB's, both associated with standard hot air gun reworking.

3 in 1 Repairing System
Combines the function of an Infrared Welding Tool, Soldering Iron and Pre-heater.

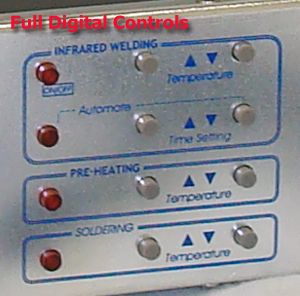

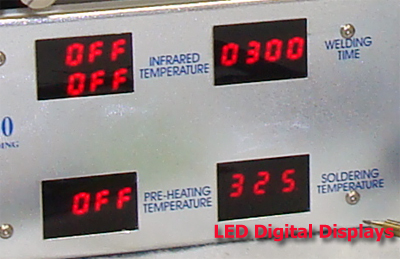

Full Digital Control with LED Displays
Allows precision setting of welding temperature & time, soldering iron and pre-heating temperatures.

Closed loop temperature control
For instant and precise process adjustments.

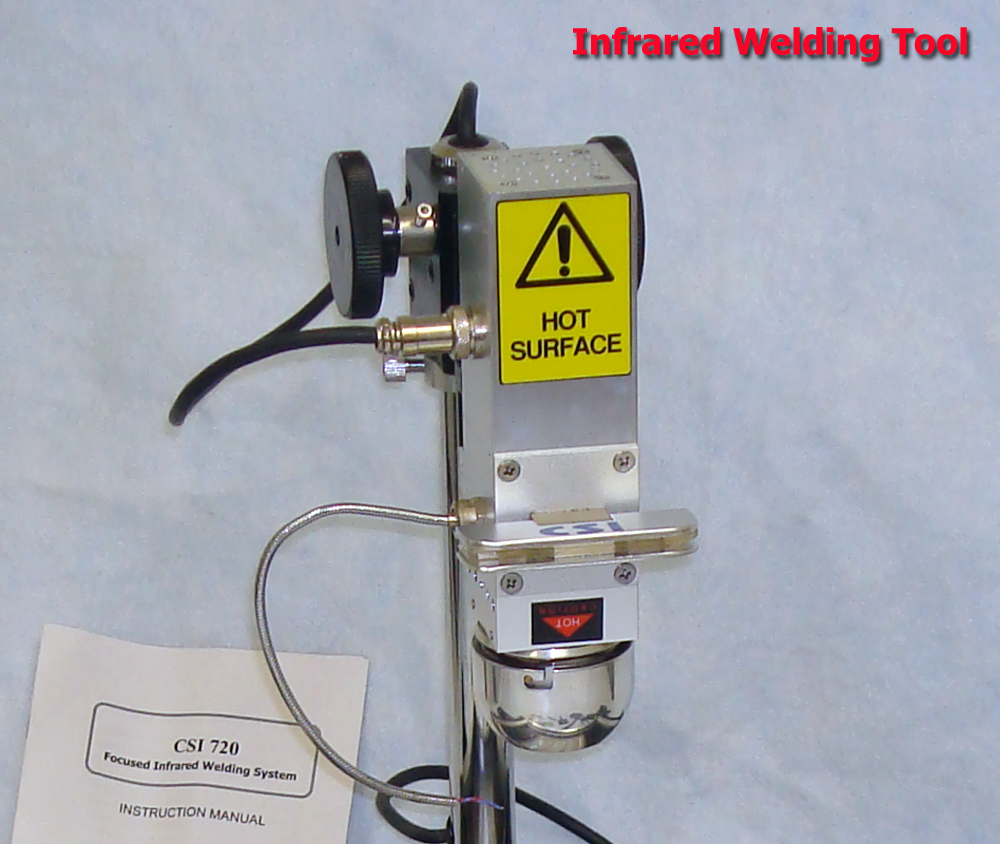

Adjustable Infrared Tool Post
Stable and adjustable Infrared welding tool holder for increased precision soldering and hands free operation.

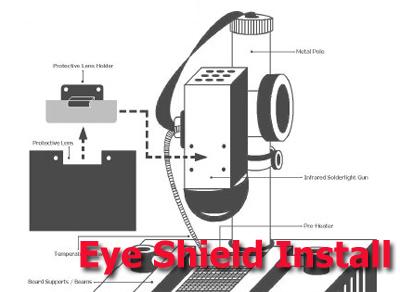

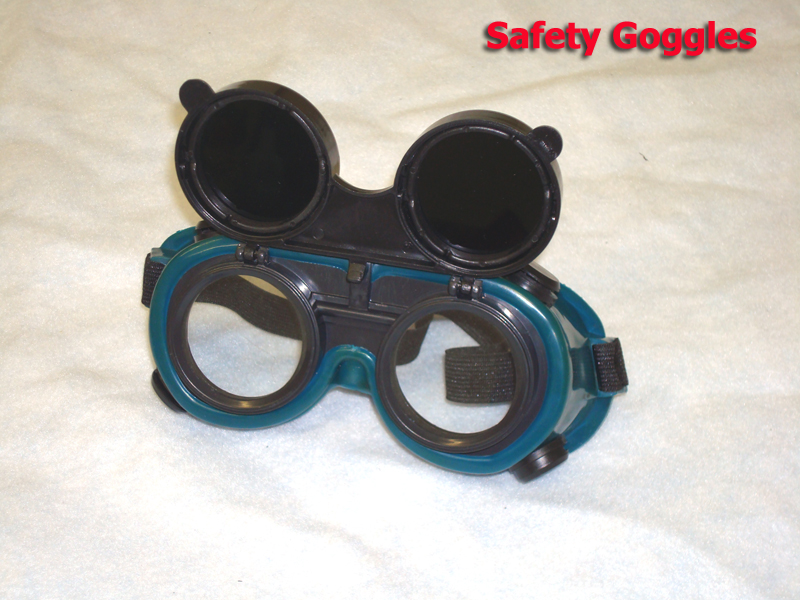

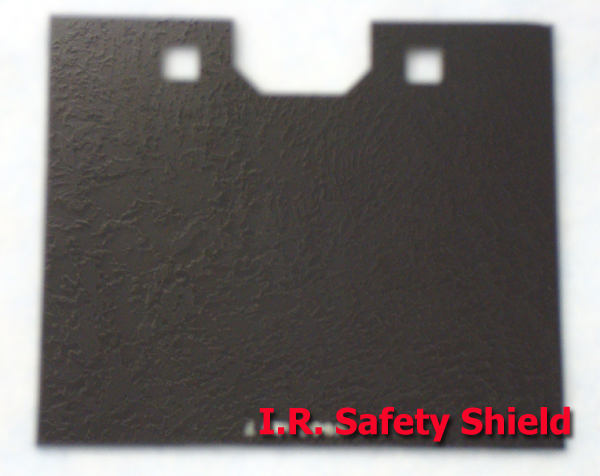

Adjustable Eye shield & Welding Goggles
To protect users from harmful light rays.

Uses infrared heat wave technology instead of the conventional hot air, effectively solves the major problem being encountered when using the hot air gun, which is the movement of surrounding components while reworking.

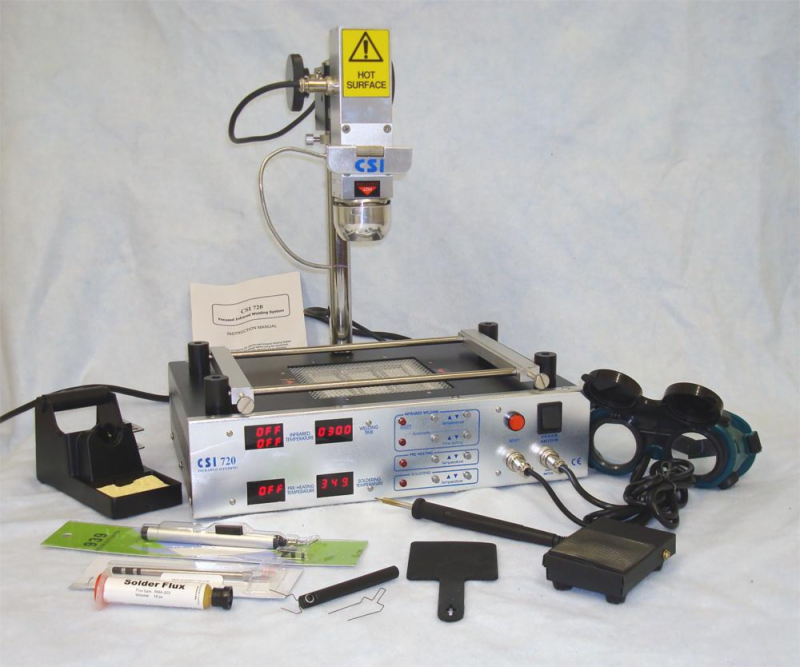

Includes:

• CSI720 Main Station w/ Preheater
• Infrared Welding Tool
• Eye Shield & Welding Goggles
• 70W Soldering Iron & Holder
• 2 Soldering Iron Tips

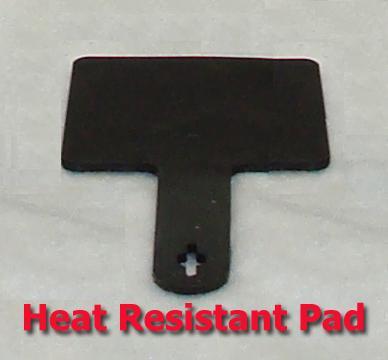

• Heat Resistant Pad
• I939 Vacuum Pen
• IC Removal Tool
• Tube of Grease

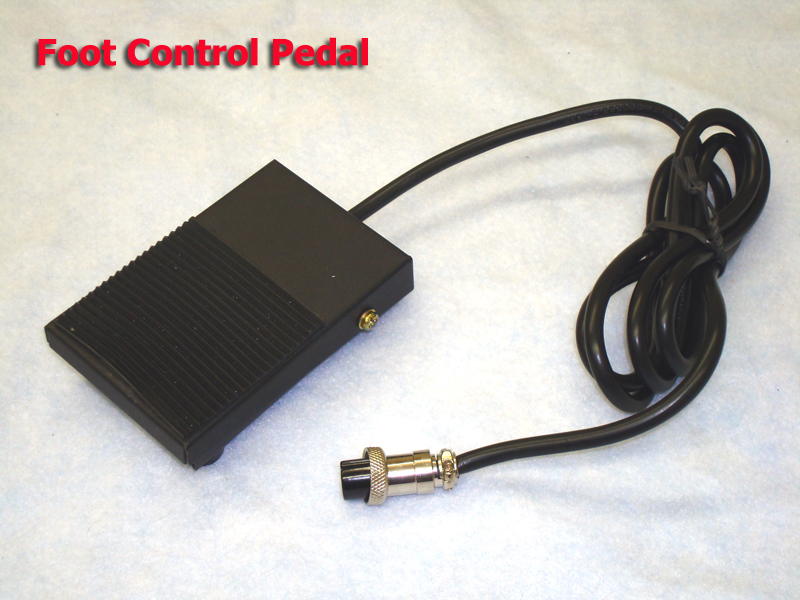

• Foot Switch
• Power Cord

Specifications:

• Power Input: 110-120
• IR Tool Temperature Range: 0-480°C / 32-896°F
• IR Heating Element: IR Halogen Lamp
• IR Power Output: 15VAC
• Soldering Iron Temperature Range: 200-480°C / 392-896°F
• Solderin Iron Heating Element: Ceramic Element
• Soldering Iron Power Output: 24VAC

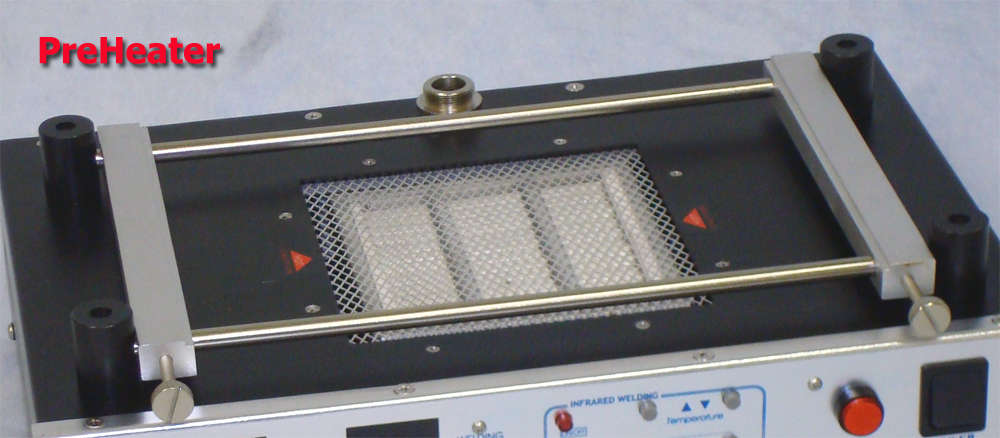

• Pre-Heater Temperature Range: Max 350°C / 662°F at source
• Pre-Heater Heating Element: Dark Infrared
• Dimensions: 13.92 x 9.68 x 3.92"

View the Owners Manual
