Large Capacity Deluxe Ultrasonic Cleaner

ULTRASONIC CLEANING involves the use of high-frequency sound waves to remove a variety of contaminants from parts immersed in aqueous media. The contaminants can be dirt, oil, grease, buffing/polishing compounds, and mold release agents, just to name a few. Materials that can be cleaned include metals, glass, ceramics, and so on. Ultrasonic agitation can be used with a variety of cleaning agents. Ultrasonic cleaning is powerful enough to remove tough contaminants, yet gentle enough not to damage the substrate. It provides excellent penetration and cleaning in the smallest crevices and between tightly spaced parts in a cleaning tank.
In a process termed cavitation, micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr toward the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively.

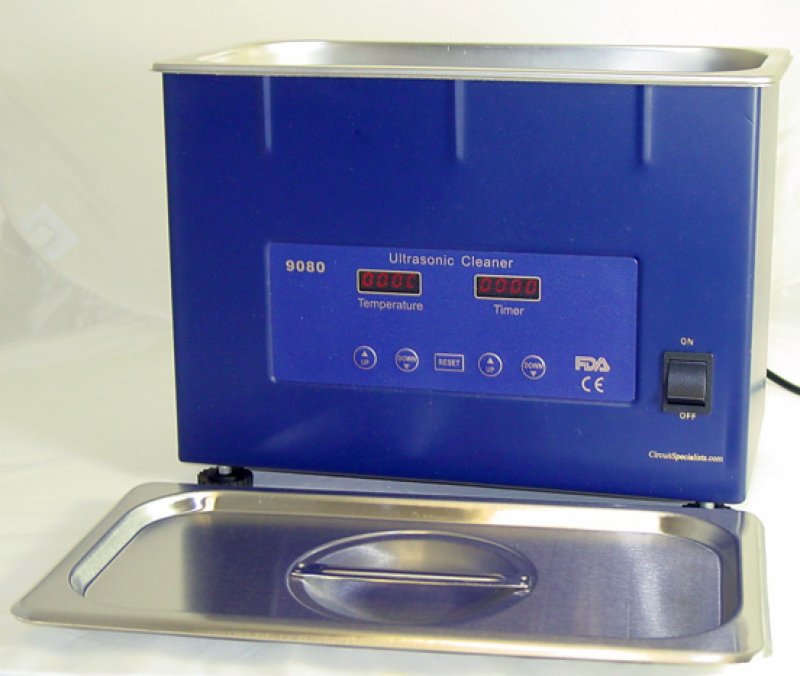

The CSI9080 is a spacious four-liter digitally controlled ultrasonic system for cleaning large bulky surfaces such as PCB boards, electronics, jewelry, medical tools, metallic gears and even soldering nozzles. The cleaning system is completely microprocessor controlled with a digital display that shows temperature and time setting.The heating function allows you to raise the temperature of the solution up to 176°F so that it can get rid of tough and stubborn stains and blemishes.
The unit comes with a stainless steel basket and a cover.

• Power consumption: 120W
• Temperature range: Room Temp. to 176°F
• Operation Frequency: 35kHz
• Cleaning time: up to 30 minutes
• Tank capacity: 4 liters
• Tank dimensions: 12”(W) x 6”(L) x 5.2”(D)
• Exterior dimensions: 12.8”(W) x 7.2”(L) x 6.8”(D)
