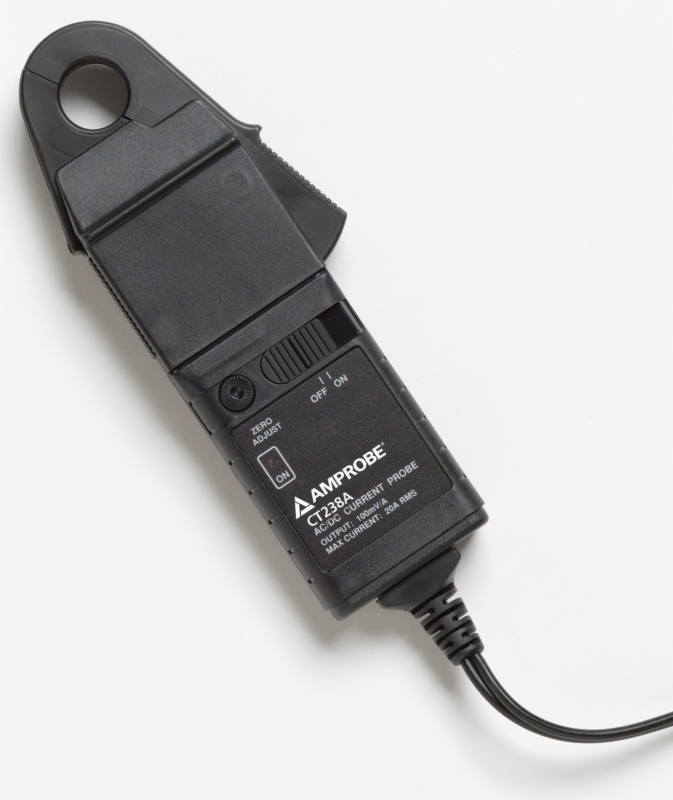

20A AC/DC CURRENT CLAMP

This current transformer probe measures AC or DC current. It converts high current to a low level millivolt signal for input directly into a test instrument. It can be used with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments.

• AC/DC current clamp, 20 A
• Special “low current” version
• Zero adjust knob
• Attached leads and users manual

FEATURES
Warranty:	One-year
Battery Life:	30 hours (alkaline)
Size:	55 mm x 210 mm x 30 mm (2.2 in x 8.3 in x 1.2 in)
Weight:	290 g (.64 lb.)
SPECIFICATIONS
Max Conductor Size:	19 mm (0.75 in)
Lead Length:	1.5 m (59 in)
Power:	9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Detailes Specs	Users Manual
