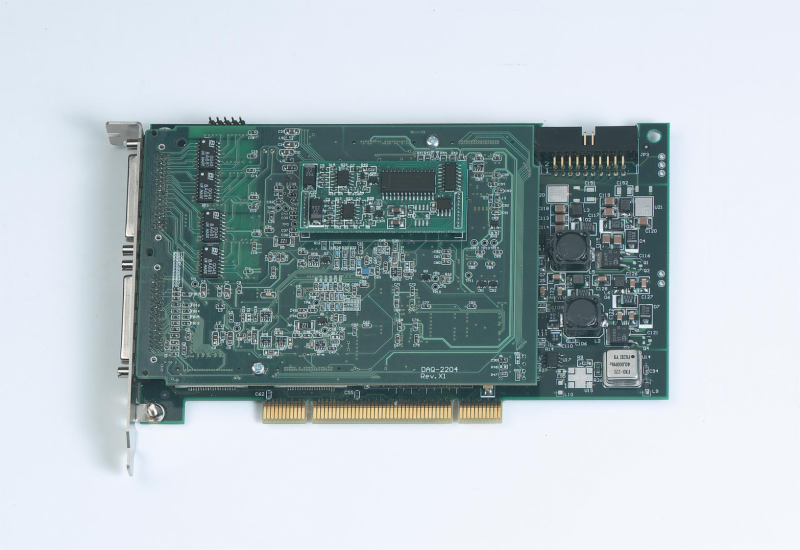

64 Channel, 3MS/s High Speed Multi-function Card

For those who are looking for high number of input and high speed, accurate data acquisition solution, DAQ-2200 series are what you are looking for. DAQ-2200 series are DAQ-2000 family and feature 64 channels single-ended or 32 channels differential analog input with sampling rate from 250KS/s to 3MS/s and resolution from 12-bit to 16-bit. The DAQ-2200 series can sample the channels in any order at the maximum conversion rate. Each channel can be configured with different gain, unipolar or bipolar, single-ended or differential and the information is stored in the channel gain queue. This allows DAQ-2200 to measure fast and slow, large and small signals with maximum flexibility. Like all the members of the DAQ-2000 series, DAQ-2200 also features analog and digital triggering, automatic calibration, simultaneously input and output operations and multiple card synchronization. In addition to the high speed analog input feature, DAQ-2200 also comes with two 1MS/s 12-bit analog output channels. The analog output can be pacer clock controlled and the data transfer can be software I/O update or bus-master DMA. Therefore you can use the D/A output function to perform waveform generation. DAQ-2200 series can be easily upgraded to PXI form factor, the PXI-2200 series. The following table shows the function comparison for the DAQ-2200 series. Please contact our sales representative for more information.

32-bit PCI Bus, plug and play 64-CH single-ended and 32-CH differential analog inputs Input channels can be mixed with single-ended and differential Bipolar/Unipolar analog input 512 Analog input configuration space 1024 Analog input data FIFO Analog and Digital trigger Data transfer: Software Polling, Interrupt, Bus-mastering DMA with Scatter/Gather 2 channel D/A output with waveform generation Bipolar/Unipolar analog output 1024 output data FIFO for D/A channel D/A data output : I/O update and Bus-mastering DMA with Scatter/Gather System Synchronization Interface Full auto-calibration Full software configuration Easy Upgrade to CompactPCI form factor

Manual	DAQ-2204
Drivers	coming soon
Catalog Page	DAQ-2204
