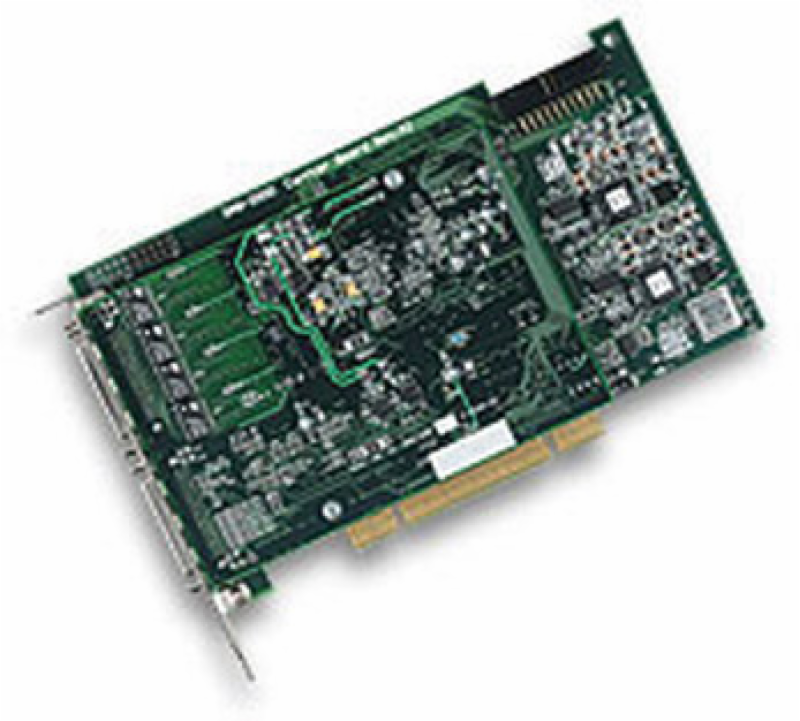

64-CH 500KS/s High Speed Multi-Function Card

• 32-bit PCI Bus, plug and play
• 64-CH single-ended and 32-CH differential analog inputs
• Input channels can be mixed with single-ended and differential
• Bipolar/Unipolar analog input
• 512 Analog input configuration space
• 1024 Analog input data FIFO
• Analog and Digital trigger
• Data transfer: Software Polling, Interrupt, Bus-mastering DMA with Scatter/Gather
• 2 channel D/A output with waveform generation
• Bipolar/Unipolar analog output
• 1024 output data FIFO for D/A channel
• D/A data output : I/O update and Bus-mastering DMA with Scatter/Gather
• System Synchronization Interface
• Full auto-calibration
• Full software configuration
• Easy Upgrade to CompactPCI form factor
