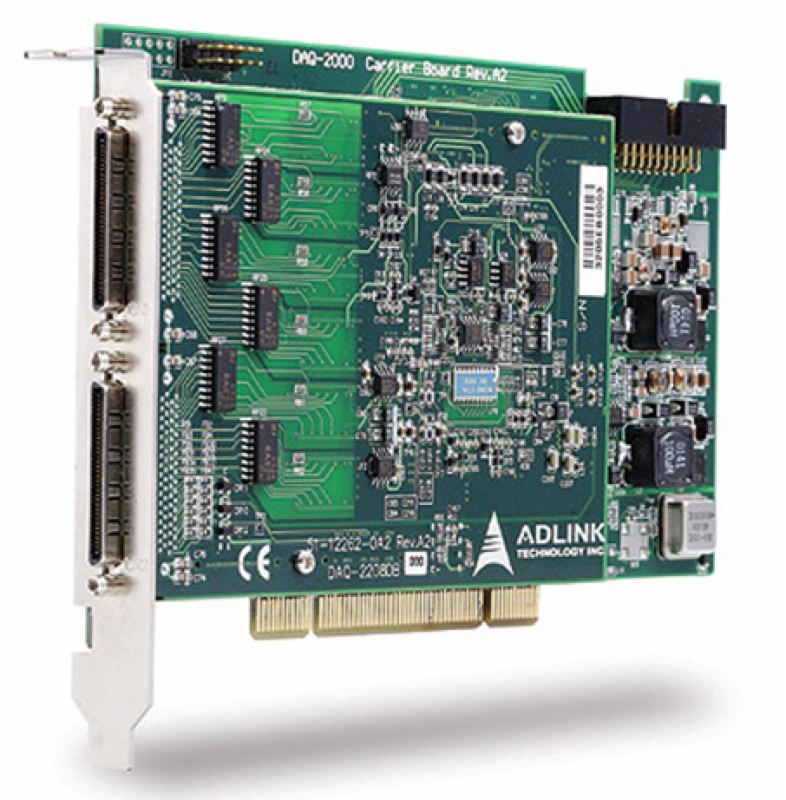

96-CH 12-Bit 3 MS/s Ultra High Density Analog Input Card

ADLINIK DAQ-2208 is an ultra-high-density and high-performance analog input card. The device can sample up to 96 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with ultra-high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 48 AI channels in order to achieve maximum noise elimination. The DAQ-2208 also features analog and digital triggering and 24-CH programmable digital I/O lines. Like all the other members in DAQ-2000 family, the DAQ-2208 is able to perform the analog input at full speed while multiple cards can be synchronized through the SSI (system synchronization interface) bus. The auto-calibration functions adjust the gain and offset to within specified accuracies so that you do not have to adjust trimpots to calibrate the cards.

• Supports a 32-bit 3.3 V or 5 V PCI bus
• 96-CH single-ended or 48-CH differential analog inputs
• Up to 3 MS/s sampling rate
• 12-bit A/D resolution
• On-board 1 k-sample A/D FIFO
• Bipolar or unipolar analog input ranges
• Programmable gains of x1, x2, x4, x5, x8, x10, x20, x40, x50, x200
• 1024-configuration channel-gain queue
