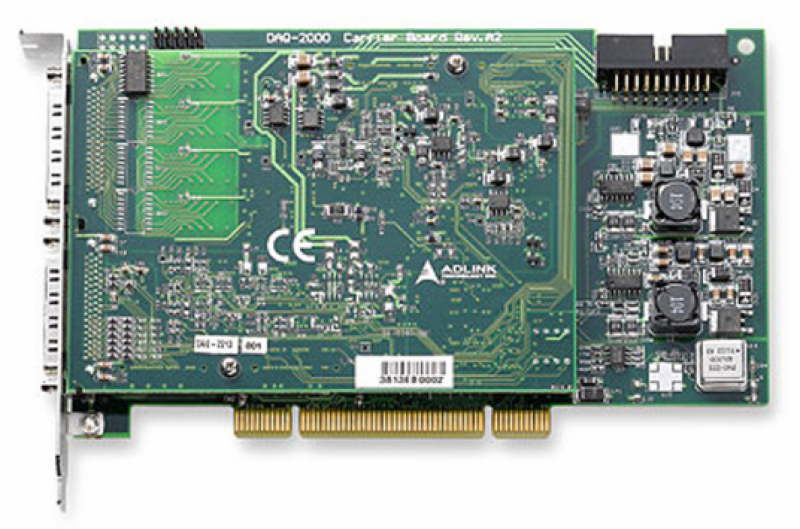

16-CH, 16-Bit, 250 kS/s Low-Cost Multi-Function DAQ Card

ADLINK DAQ-2213 is low-cost multifunction DAQ card. The devices can sample up to 16 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with cost-effective analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 8 AI channels in order to achieve maximum noise elimination. The DAQ-2213 also feature analog and digital triggering, 24-CH programmable digital I/O lines and 2-CH 16-bit general-purpose timer/counters. Like all the other members in DAQ-2000 family, the DAQ-2213 is able to perform the analog input and output functions at full speed simultaneously and multiple cards can be synchronized through the SSI (system synchronization interface) bus. The auto-calibration functions adjust the gain and offset to within specified accuracies such that you do not have to adjust trimpots to calibrate the cards.

• Supports a 32-bit 3.3 V or 5 V PCI bus
• 16-CH single-ended or 8-CH differential analog inputs
• 250 kS/s sampling rate
• 16-bit A/D resolution
• Programmable gains: x1, x2, x4, x8
• 512-configuration channel-gain queue
• Fully auto calibration
• Multiple cards synchronization through SSI (System Synchronization Interface) bus
