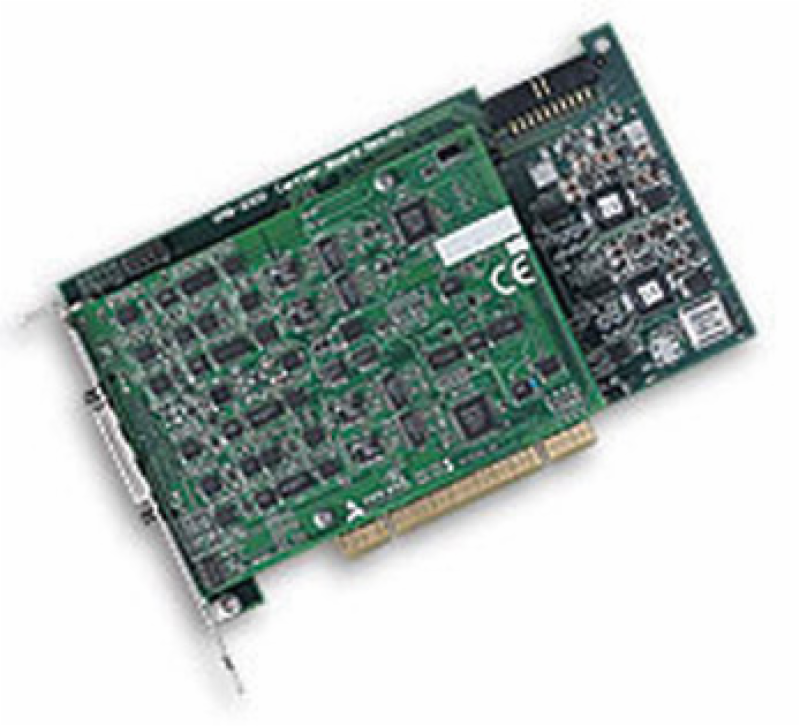

8-CH, 1MS/s Analog Output Card

8 Channels, 12-bit high performance analog output cards for the PCI bus. Each of the analog output channel can generate up to 1MS/s waveform and up to 8 channels simultaneously. The output channel can settle to within ±0.5LSB in 3µ second. The output range can be 0~10V or ±10V when using the high precision internal voltage reference or unipolar/bipolar range of the external reference. All the analog channels are auto calibrated by the internal 14-bit A/D converter. Thus no external measurement device is required to perform calibration. In addition to calibrating the analog output channels, the extra analog input channels are available for user's applications. Users can have up to 8 channels 400KS/s 14-bit analog input functions in the DAQ-2500 series. Using the DMA data transfer, DAQ-2500 can generate waveforms simultaneously up to 8 channels at full speed. If more channels are required, up to four DAQ-2500 cards can chained together with the synchronization bus of the PCI models.
