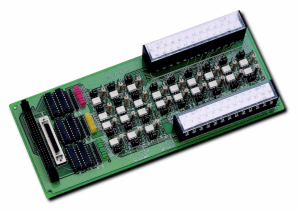

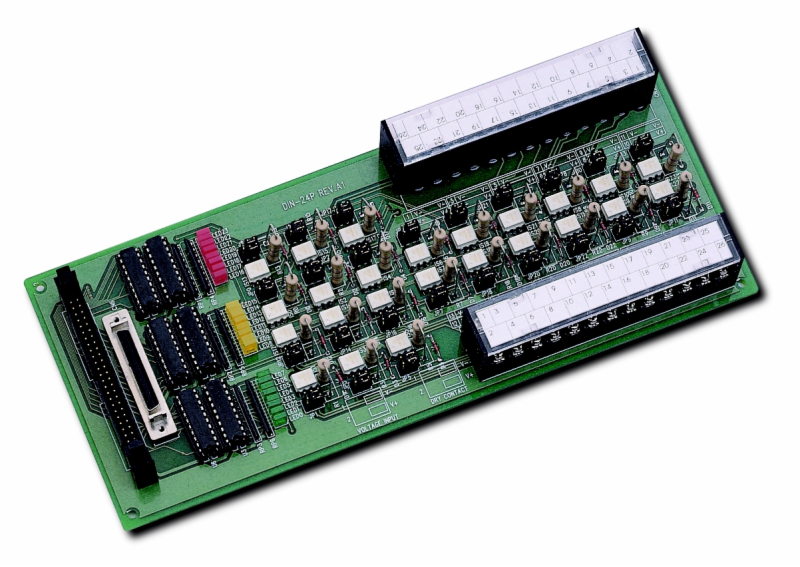

24-CH Isolated/Non-Isolated Terminal Board

• 24 opto-isolated digital input channels
• 50-pin Opto-22TM compatible connector
• 50-pin SCSI-type connector available on DIN-24R to interface with ND-6058
• AC or DC polarity-free input, isolated or dry-contact (without isolation) by jumper selection
• Thresholds from 5VDC to 24VDC, adjustable by changing current-limiting resistors
• 2500 Vrms optical isolation
• LEDs indicate input channel status
• Jumper selectable for voltage input mode or dry contact input mode
• Screw terminal for easy field wiring
