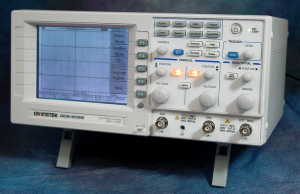

INSTEK 60MHz DSO

Item no. GDS-806S

INSTEK 60MHz DSO

Item no. GDS-806S
$259.00
Qty
Out of stock
Product discontinued



Limited To Stock On Hand-Discontinued by Manufacturer
GDS-2062 is Manufacturer Recommended Substitute

See our great value on the Hantek DSO5062B dual channel 60 Mhz oscilloscope


Features:

  • 60MHz Bandwidth With MONO Display
  • 125k Memory and 12 Division Horizontal Display
  • 25GS/s Sampling Rate for Repetitive Waveforms
  • Advanced Trigger : Pulse Width , TV Line, Event Delay and Time Delay
  • Go/NoGo , Auto Setup Sequence and TTF Function
  • Built-In Help Menu, Multi-Language and FREE PC Software
  • Standard Interface: RS-232C

    Specifications:

  • Display Device: Mono (320 x 240)
  • Display Contrast: Adjustable
  • Waveform Display Graticule: (8 x 10 divisions (8 x 12 when menu off)
  • Bandwidth: 60MHz
  • Channels: 2
  • Vertical Resolution: 8-bit
  • Vertical Sensitivity: 2mV/div ~ 5V/div
  • Vertical Accuracy: ±3%
  • Rise Time: <5.8ns
  • Input Coupling: AC,DC,Ground
  • Input Impedance: 1Mohm ± 2%, ~18pF
  • Polarity: Normal and Invert
  • Max. Voltage Between Signal & common at Input BNC: 300V ( DC+AC peak ) , CATII
  • Waveform Signal Process: CH1 + CH2 , CH1 - CH2 , FFT
  • Offset Range: 2mV/div~50mV/div : ± 0.5V; 100mV/div~500mV/div : 1V/div~5V/div : ±50V
  • BW Limit: 20MHz ( -3dB )
  • Time Base Range: 1ns/div ~ 10s/div ( 1-2-5 increments ),Roll : 250ms/div ~ 10s/div
  • Time Base Mode: Main , Window , Window Zoom , Roll , X-Y
  • Time Base Accuracy: ± 0.01%
  • Delay Range: Pre-trigger: 20 div
  • Real-Time Sample Rate: 100MS/s maximum on each channel
  • Equivalent Sample Rate: 25GS/s E.T. maximum on each channel
  • Record Length: 125h/CH
  • Peak Detection: 10ns (500ns/div ~ 10s/div)
  • Acquisition Mode Sample , Peak Detect , Average
  • Average 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
  • Trigger Source: CH1 , CH2 , Line , Ext
  • Mode: Auto Level , Auto , Normal , Single , TV , Time Delay , Event Delay , Edge , Pulse Width , AC , DC , HF , LF , Noise Reject
  • Coupling: AC , DC , HF , LF , Noise Reject
  • Sensitivity: DC ~ 25MHz : Approximate 0.5div or 5mV 25MHz ~ 60MHz : Approximate 1.5div or 15mV
  • X-Axis Input / Y-Axis Input: Channel 1 / Channel 2 Phase Shift ± 3º at 100 kHz
  • Auto Voltage Measurement: Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin
  • Auto Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
  • Cursor Measurement: Voltage difference between cursors (?V), Time difference between cursors (?T), Frequency difference between cursors (1/?T)
  • Readout Resolution: 6 digits
  • Frequency Range: AC Coupled , 20Hz~rated bandwidth ; resolution: 10Hz
  • Signal Source: All available trigger source except the Pulse Width & Video Trigger mode
  • Frequency Range: 1 kHz ~ 100 kHz 1KHz / STEP
  • Duty Cycle: 5% ~ 95% 5% / STEP
  • Range: ± 15V
  • Sensitivity: DC ~ 25MHz : ~ 50mV ; 25 ~ 60MHz : ~ 100mV
  • Input Impedance: 1Mohm ± 2%, ~ 18pF
  • Maximum Input: 300V ( DC + AC peak ) , CATII
  • AutoSet: "Autoset" can adjust vertical ( Volt/div ), Horizontal ( Sec/div) and Trigger level automatically
  • Save/Recall: Up to 15 sets of measurement conditions can be saved and recalled
  • Waveform Trace Save/Recall: 2 sets of waveform can be saved and recalled
  • Standard: RS-232C
  • Power Source: 100V ~ 240V AC 47Hz ~ 63Hz , Auto selection
  • Accessories: Instruction Manual x 1 , Power Cord x 1 , Probe x 2
  • Dimensions and Weights: 310W x 142H x 254D (mm) , Approximate 4.1 kg
