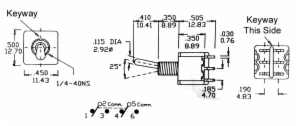

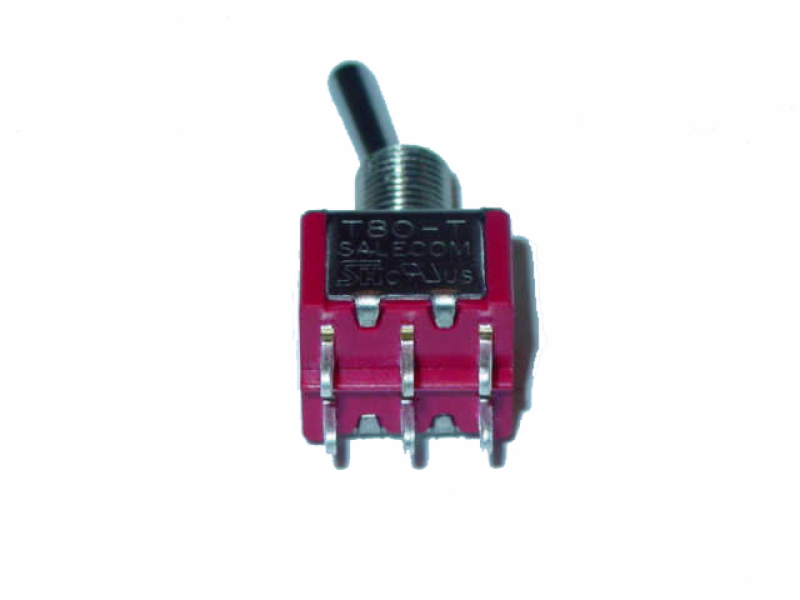

ON NONE ON DPDT Miniature Toggle Switch

Individual Product Details:

Specifications

• Contact Rating: 5 Amp with resistive load at 125 VAC or 28 VDC
• Electrical Life: 50,000 make or break cycles at full load
• Contact Resistance: 10mW max. initial @ 2-4 VDC
• 100mA for both coin silver and gold plated contacts.
• Insulation Resistance: 1,000 MW min.
• Dielectric Strength: 1,000 V RMS @ sea level
• Operating Temperature: -30°C to 85°C


Materials

• Case: melamine or diallyl phthalate (DAP)
• Toggle Handle: Brass, chrome plated
• Bushing: Brass, nickel plated
• Housing: Stainless steel
• End Contact: Coin silver, silver plated
• End Terminal: Brass, silver plated
• Center Contact & Terminal: Brass, silver plated
