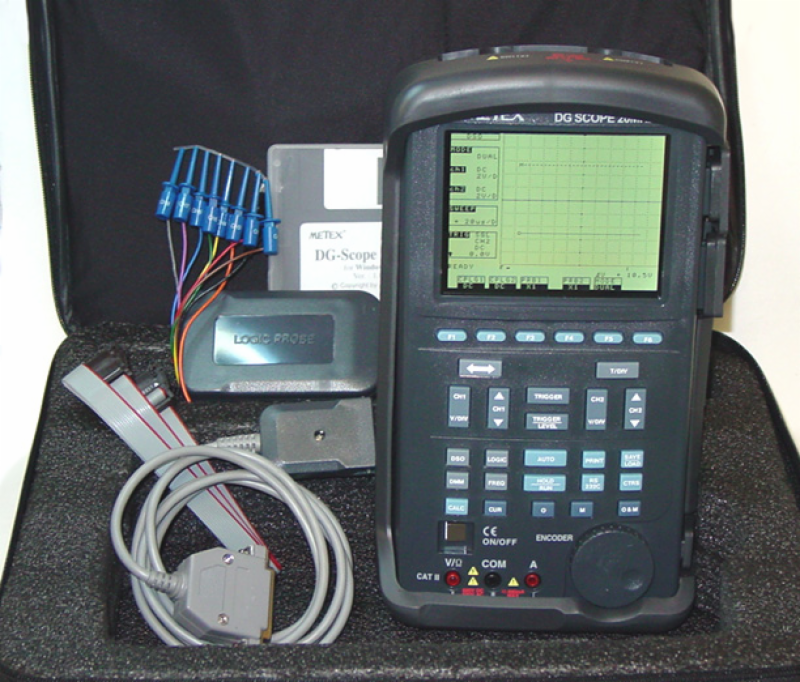

20MHz DSO with True RMS Graphical Digital Multimeter

CLOSE OUT-old price was $499.00. Limited to stock on hand

Feature of the 20MHz DSO with True RMS Graphical Digital Multimeter:

• DC to 20MHz, 2 Channels
• Sampling rate : 20MS/s
• Vertical Sensitivity : 5mV/div~2V/div
• Horizontal Sweep : 50ns/div~2s/div
• Vertical mode : CH1/2, Dual, Add, Sub, X-Y
• Auto Setup Function
• Save/Load

Digital Multimeter Features

• Auto Ranging 3 3/4 digit (3999 counts)
• True RMS
• Analog Bargraph
• Relative offset, Min./Max., dBm

Frequency Counter Features

• 5Hz~10MHz, 2 Channels
• High Resolution : 5 digits
• Frequency, Period

Logic Analyzer Features

• 20MS/s, 8 Channels
• Horizontal Sweep : 1¥ìs/div~2s/div
• Threshold Level : 1.4V (TTL)
• Display mode : Timing, State
• Save/Load

Specifications:

• DC Voltage: 400mV to 600V ±0.5% + 3dgts
• AC Voltage: 400mV to 600V ±2.5% + 8dgts (40Hz~5KHz)
• DC Current: 400?A to 400mA ±1.0% + 2dgts
• AC Current: 400?A to 400mA ±1.8% + 10dgts (40Hz~10KHz)
• Resistance: 400? to 40M? ±1.0% + 4dgts
• Continutiy: Buzzer sounds of Resistance less than 30?
• Diode: 4V max. at 400? range, 2V max. at other range
• Meter Dimensions: 11" x 6" x 2.5"

Included Accessories:

• AC Power Adapter
• Rugged Holster
• Soft Case
• RS-232C Interface Cable & Software
• DMM Test Leads
• Logic Probe
• (2) Scope Probes
• Manual
