40 MHz Oscilloscope
Individual Product Details:

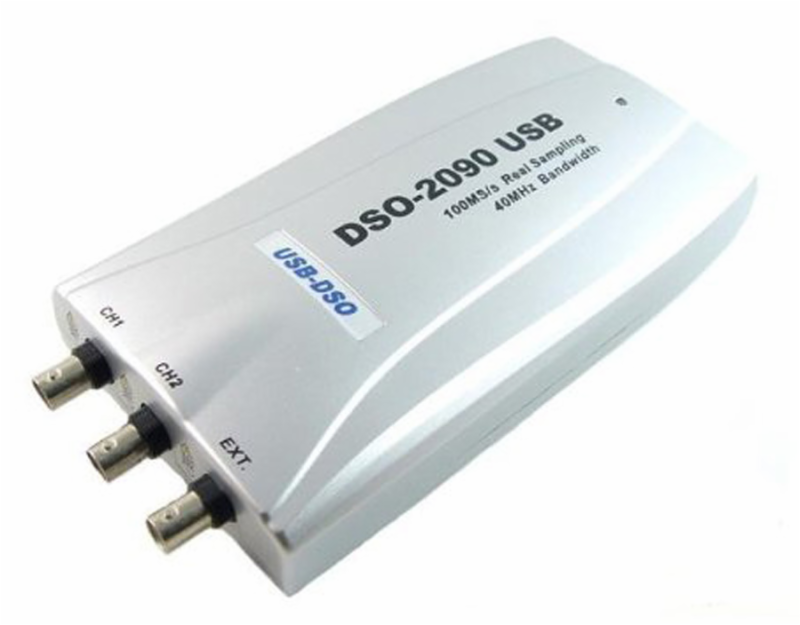

Turn your Windows based computer into a powerful 40 Mhz 2 channel digital oscilloscope. Using the PC's USB port for data communications between the included hardware & software to create the oscilloscope display on the PC's monitor allowing you to preform functions the same as on a standard oscilloscope. The unit ships with 2 probes, software CD, users manual and USB cable.
- High performance.
- USB connected: Uses USB and supports plug'n play, with 12Mbp communication speed.
- Best performance for your dollar: Thease units have many features that are comparable to the high speed stand-alone DSOs. But costs a fraction of the price.
- No external power required: Bus-powered from the host computers USB port.
- Probes & USB cable included.
- Easy to use: Intuitive and easy to understand.
- Various data formats: Can save wavrfrom in the following formats: .txt .jpg .bmp & MS excel/word.
|
Product |
Oscilloscope |
|
|
Probe
|
USB cord |
|
|
S/W CD |
manual |
 |
|
|
|
|
|
|
|
|
|
|
Hardware Specification
|
Channel |
2 Channels |
|
Impedance |
1M? 25pF |
|
Coupling |
AC/DC/GND |
|
Vertical resolution |
8Bit |
|
Gain range |
10mV-5V, 9Steps |
|
DC accuracy |
±3% |
|
Timebase range |
4ns-1h, 38 Steps |
|
Vertical adjustable |
Yes |
|
Input protection |
Diode clamping |
|
X-Y |
Yes |
|
Autoset |
Yes (30Hz to 40MHz) |
|
EXT. input |
Yes |
|
Trigger Mode |
Auto, Normal and Single |
|
Trigger Slope |
+/- |
|
Trigger level adjustable |
Yes |
|
Trigger Type |
Rising edge, falling edge |
|
Trigger Source |
CH1, CH2, EXT |
|
Pre/Post trigger |
0-100% |
|
Buffer size |
10K-32KB/Channel |
|
Shot bandwidth |
DC to 40MHz |
|
Max. Sample rate |
100MS/s |
|
Sampling selection |
Yes |
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|
Network |
Open/Close |
|
Vertical mode |
CH1, CH2, Dual, ADD |
|
Cursor measurement |
Yes |
|
Spectrum analyzer |
|
|
Channel |
2 Channels |
|
Math |
FFT, addition, subtraction, multiplication, division. |
|
Bandwidth |
40MHz |
|
Cursor |
Frequency, Voltage |
|
Data Samples |
10K-32K/Channel |
|
Accessories |
S/W CD, probes, manual, USB cord |
