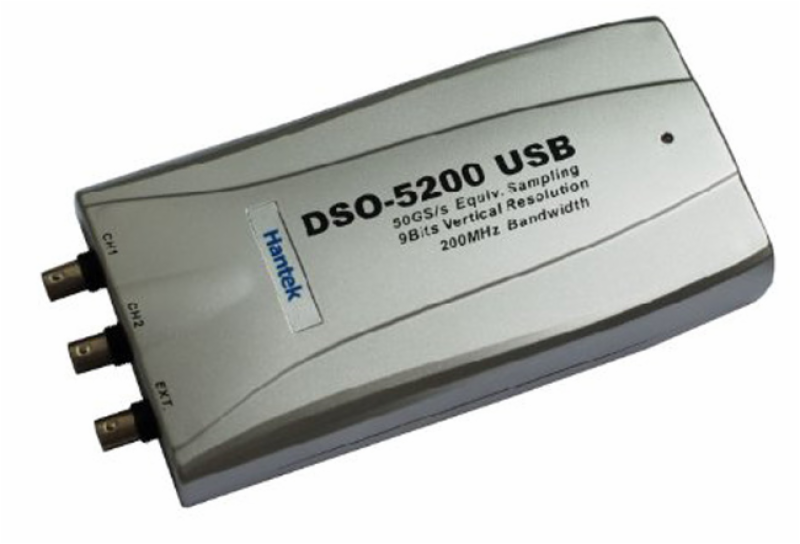

PC Based 200MHz USB Digital Storage Oscilloscope w/2 Probes
Availability: 2 In Stock
Item: DSO-5200
Quantity      Price
1      $ 289.000
Quantity :

Add To Cart

Continue Shopping

Turn your Windows based computer into a powerful 2 channel digital oscilloscope.  Using the PC's USB port for data communications between the included hardware & software to create the oscilloscope display on the PC's monitor allowing you to preform functions the same as on a standard scope.  The unit ships with 2 probes, software CD, users manual and USB cable.

  • High performance.
  • USB connected: Uses USB and supports plug'n play, with 12Mbp communication speed.
  • Best performance for your dollar: Thease units have many features that are comparable to the high speed stand-alone DSOs. But costs a fraction of the price.
  • No external power required: Bus-powered from the host computers USB port.
  • Probes & USB cable included.
  • Easy to use: Intuitive and easy to understand.
  • Various data formats: Can save waveform in the following formats: .txt .jpg .bmp & MS excel/word.







Product
DSO-5200

Oscilloscope



                    Probe



               USB cord

S/W CD



manual








Hardware Specification





Channel

2 Channels

Impedance

1M? 25pF

Coupling

AC/DC/GND

Vertical resolution

9 Bit

Gain range

10mV-10V, 10Steps

DC accuracy

±3%

Timebase range

2ns-1h, 39 Steps

Vertical adjustable

Yes

Input protection

Diode clamping

X-Y

Yes

Autoset

Yes (30Hz to 200MHz)

EXT. input

Yes

Trigger Mode

Auto, Normal and Single

Trigger Slope

+/-

Trigger level adjustable

Yes

Trigger Type

Rising edge, falling edge

Trigger Source

CH1, CH2, EXT

Pre/Post trigger

0-100%

Buffer size

10K-14KB/Channel

Shot bandwidth

80MHz

Max. Sample rate

200MS/s

Sampling selection

Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

Open/Close

Vertical mode

CH1, CH2, Dual, ADD

Cursor measurement

Yes

Spectrum analyzer

Channel

2 Channels

Math

FFT, addition, subtraction, multiplication, division.

Bandwidth

200MHz

Cursor

Frequency, Voltage

Data Samples

10K-28K

Accessories

S/W CD, probes, manual, USB cord





DSO5200 Users Manual

Driver 32

Driver 64

DSO-5200A Software

Software Development Kit
