60MHz Hand Held Oscilloscope w/Digital Multimeter Functions

Availability:

11 In Stock

Item: DSO1060

Quantity	Price
1	$ 429.000

Quantity :

60MHz Hand Held Oscilloscope w/Digital Multimeter Functions

Add To Cart

Continue Shopping

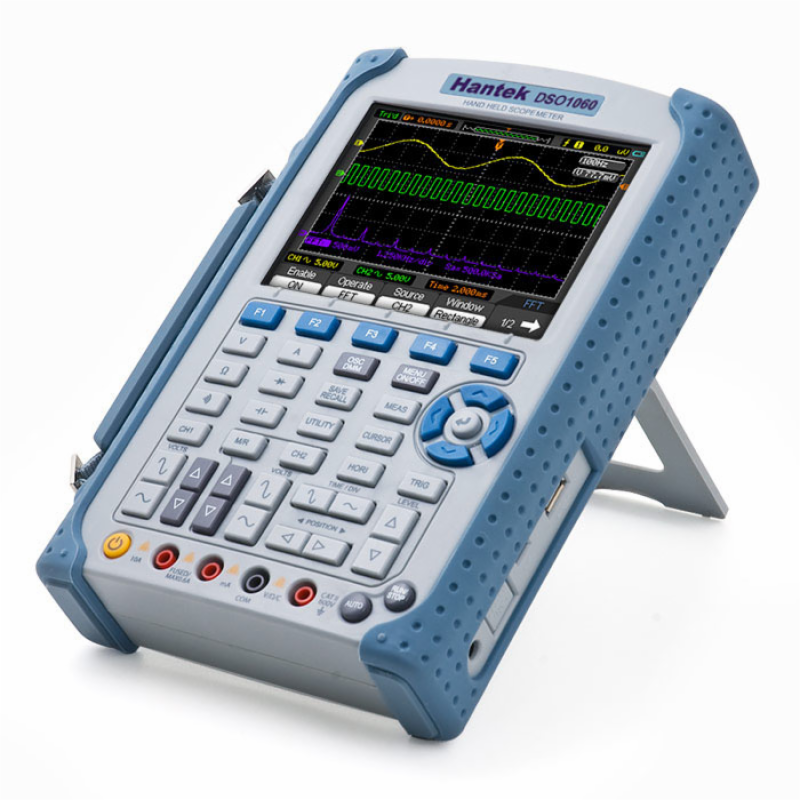

The DSO 1060 Handheld ScopeMeter offers exceptional waveform viewing and measurements in a compact, lightweight package. It is ideal for production test, field service, research, design, education and training.

The DSO 1060 is an Excellent Industrial Quality Handheld ScopeMeter. There are easy to use direct entry keys for Each Channel, Time base, Trigger and Digital Multimeter (DMM).
The DSO 1060 handheld scopemeter has Large 5.7 inch TFT Color LCD Display with Led backlight to provide a clear & crisp display.
Intergrated USB Host/Device, 2.0 full-speed interface, supports removable disk, Can be remotely operated by PC.
DSO 1060 Handheld Scopemeter is a multifunction Digital Storage Unit, It?s not only a scopemeter ( High Bandwidth 60MHz Digital Oscilloscope), but also incorporates a 6000 COUNT high precision DMM.
The DSO1060 features a High refresh rate, High Real-time Sample Rate 150MS/s-2GS/s, and a 50GS/s Equivalent-time Sample Rate.
The DSO1060 can perform numerous mathmatical operations on the measured signals including FFT, +, - , *, /, X-Y, as well as 22 kinds of auto measurements. It also features a PASS/FAIL Check to aid in production testing.
Features Multiple Trigger modes such as Edge, Pulse, Alternate, as well as the abilility to trigger on user defined pulse widths.
Up to 1000 waveforms may be recorded and saved to either internal memory or to an external storage device (USB). Waveforms can be saved in various file formats such as .jpg or .bmp, or as MS excel or word files.
The unit features a Rechargeable Battery Power Operation (battery included).
Dimensions (mm):240(L) x 165(W) x 50(H), easily carried and includes a handy shoulder carry case with room for accessories..

Can be used connected to a computer as a virtual oscilloscope.

6000 Count Digital Multimeter

22 kinds of waveform measurements

dual time base ALT trigger mode for easy observation of two signals of different frequency

Convenient file storage and management

Built-in help system

Scope Probe

Test Leads

Manual & Software

Includes protective carry case

MODE		DSO1060
VERTICAL	Channels	2
	Bandwidth	60MHz
	Rise Time	5.8ns
	Input Impedance	Resistance: 1M ; Capacitance: 15 pF
	Input Sensitivity	10mV/div to 5V/div
	Input Coupling	AC, DC and GND
	Vertical Resolution	8 bits
	Maximum Input	400V (DC+AC Peak)
HORIZONTAL	Real-Time Sampling Rate	150MSa/s
	Equivalent Sampling Rate	50GSa/S
	Time Base Range	5ns/div~1000s/div
	Memory Depth	32k at Single Channel, 16k at Dual Channel
	Time Base Precision	±50ppm
TRIGGER	Source	CH1, CH2
TRIGGER	Mode	Edge, Pulse Width, Alternative
X-Y MODE	X-Axis Input	Channel 1
	Y-Axis Input	Channel 2
	Phrase Shift	Max.3 degree
CURSORS AND MEASUREMENT	Voltage Measuremet	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
	Time Measuremet	Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
	Delay Measuremet	Delay time from ch1 rising edge to ch2 rising edge
	Delay Measuremet	Delay time from ch1 falling edge to ch2 falling edge
	Cursors Measuremet	Manual, Track, Auto Measure Modes
Waveform Signal Process		CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Storage	Storage	15 Waveforms and Setups
METER MODE	Maximum Resolution	6,000 Counts
	DMM Testing Modes	Voltage, Current, Resistance, Capacitance,Diode & Continuity
	Maximum Input Voltage	AC: 600V, DC: 800V
	Maximum Input Current	AC: 10A, DC: 10A
	Input Impedance	10 M?
DISPLAY	TFT LCD Type	5.7 Inch with LED Backlight Display
DISPLAY	Display Resolution	240 (Vertical) x 320 (Horizontal) Dots
INTERFACE	USB	USB Host / Device 2.0 Full Speed Supported
INTERFACE	Optional	RS232, LAN
POWER SOURCE	Line Voltage Range	AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
POWER SOURCE	Battery Power (Installed)	6 Hours (Li-ion Battery)
MECHANICS	Dimension	245 x 163 x 52 (mm)

Software Development Kit
