Hantek 200MHz Digital Storage Oscilloscope 1G Sa/S Real Time Sampling

Availability:

9 In Stock

Item: DSO5202B

Quantity	Price
1	$ 499.000

Quantity :

200MHz Digital Storage Oscilloscope

Add To Cart

Continue Shopping

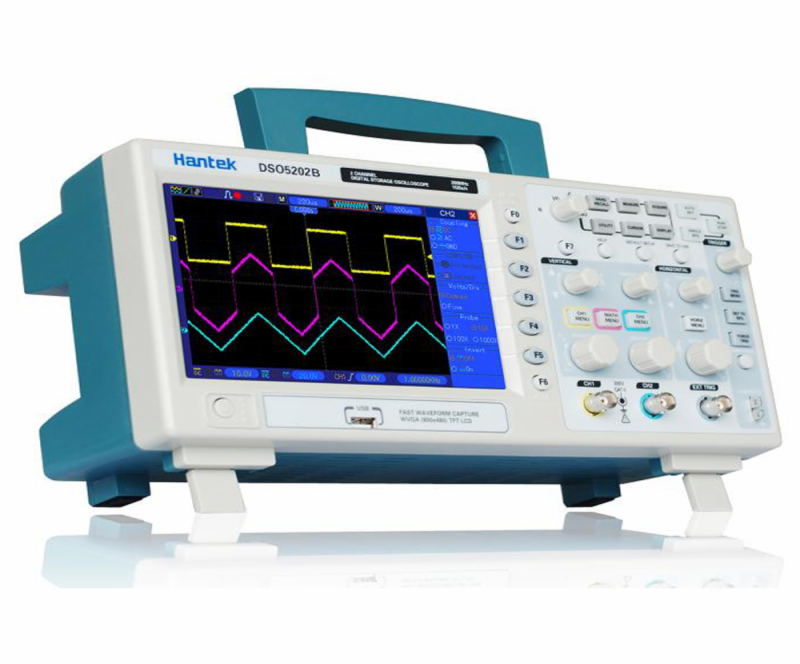

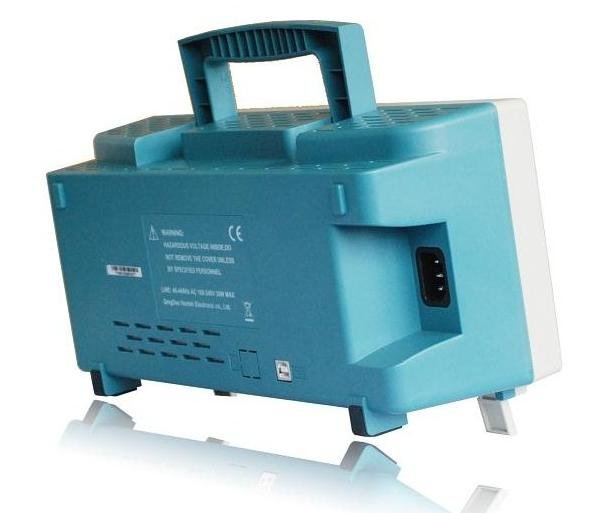

The DSO5202B Digital Storage Oscilloscope is a 200MHz scope that provides real-time sample rates up to 1GSa/s and equivalent sample rates up to 25GSa/s. In addition, it has 1M memory depth for better observation of waveform details. The 7 inch color TFT LCD Display with Windows-style interface and menus provide easy operation.

NOTE: CHECK OUR TERRIFIC INTRODUCTORY PRICES FOR THESE HANTEK OSCILLOSCOPES

View a customer submitted review

Abundant menu information and easy-to-use buttons give you plenty of measurement information:

The multifunctional knobs and the powerful shortcut keys help save time during operation.
The Autoset function lets you detect sine and square waves automatically.
The Probe Check Wizard guides you to adjust the probecompensation and set the Probe option attenuation factor.
The DSO5202B provides three help methods (context-sensitive, hyperlinks, and an index).
You can quickly master all functions of the DSO5202B to greatly improve your efficiency in production and development.
Includes (2) Probes, USB cable & power cord.

Features of Digital Storage Oscilloscope:

200 MHz bandwidth
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 1M
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis

Model	DSO5202B
Bandwidth	200MHz
Real-time Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Record Length(Sample Points)	Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range	4nS/div-40S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy	500ps
Vertical
A/D Converter	8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range	2mV/div~5V/div at input BNC
Position Range	±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)
Bandwidth Limit	20MHz
Rise Time at BNC	≤1.7ns
DC Gain Accuracy	±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div
Trigger
Trigger Sensitivity (Edge Trigger Type)	DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full EXT(Typical) 200mV from DC to 40MHz EXT/5(Typical) 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity
Trigger Level Range	CH1,CH2: ±8 divisions from center of screen EXT: ±1.2V EXT/5: ±6V
Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns)	CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen) EXT: ±(6% of setting + 40mV) EXT/5: ±(6% of setting + 200mV)
Holdoff Range	100ns-10s
Trigger Type
Edge	Trigger on the rising or falling edge
Pulse Width	Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s
Video	Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope	Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s
Overtime	from the rising or falling edge Set Time: 20-10s
Alternate	Internal trigger on edge, pulse width, video or slope
Measurement
Cursors	Manual: The difference between voltage cursors; the difference between time cursors ; calculated by Hz. Tracing: The voltage and time at a waveform point
Automatic	Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Display
Type	Right angle 7"TFT 16-digit color LCD
Resolution	800*480 dots
Contrast	16 gears, with the progress bar to show adjustment
Interface	USB host and USB slave
Power Supply
Voltage	100-120VACRMS(±10%),45Hz to 440Hz,CAT II 120-240VACRMS(±10%),45Hz to 66Hz,CAT II
Power	<30W
Fuse	2A, T rating, 250V
Mechanical
Size	Length: 313mm Width: 108mm Height: 142mm
Weight	2.08KG (exclusive of packing and accessories)
