Large EM Series Chassis 15.75" x 10.2" x 5.8"

• 400mm Wide x 260mm Deep x 150mm High
• 15.75" Wide x 10.2" Deep x 5.8" High
• Includes Front Panel Steel, Nicle Plated Handles. 94.5mm Length, 8 gauge
• Features Flip-Up Tilt-Up Feet (front)
• 30 Ventilation Slots on top & bottom (60 total)
• 2mm Aluminum Front & Back Panels
• Internal Mounting Rails. Easily mount 1 or 2 PCB's Horizontally.

These smart chassis are supplied "knock down" & come with all necessary hardware for quick assembly. Attractive Ventilation Slots are designed into both the top & bottom of the EM-Series Chassis. Internal mounting rails for mounting one or two PCB's horizontally are included. Rugged 1mm sheet steel construction. the front & back aluminum panels are 1.5mm thick (EM-01, EM-02 & EM-03) or 2mm thick with the larger sizes (EM-04, EM-05, EM-06) Also, with the larger sizes (EM-04, EM-05, EM-06) Nickle plated steel handles are included giving your project a finished, professional look.

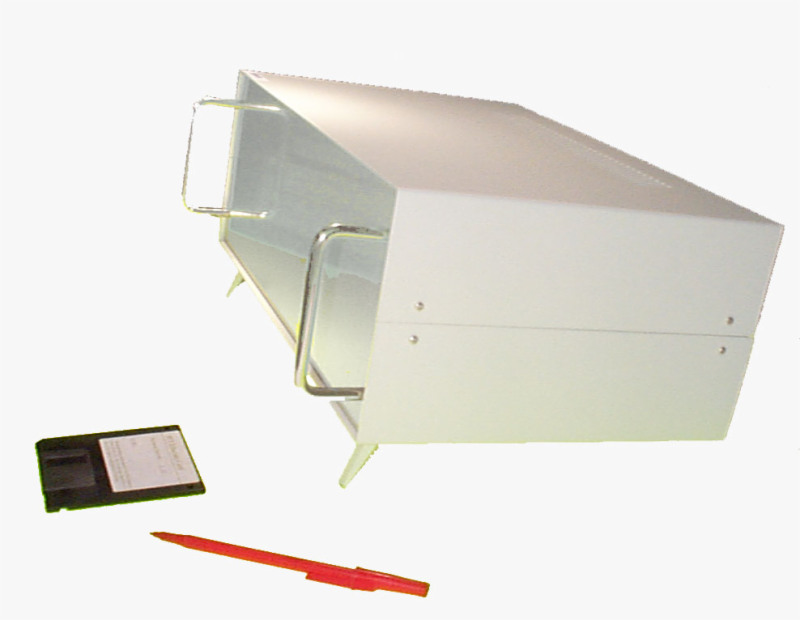

Check out some pictures of the EM-06 chassis in use here
