3MHZ FUNCTION GENERATOR

Limited to Stock on hand - No Back Orders

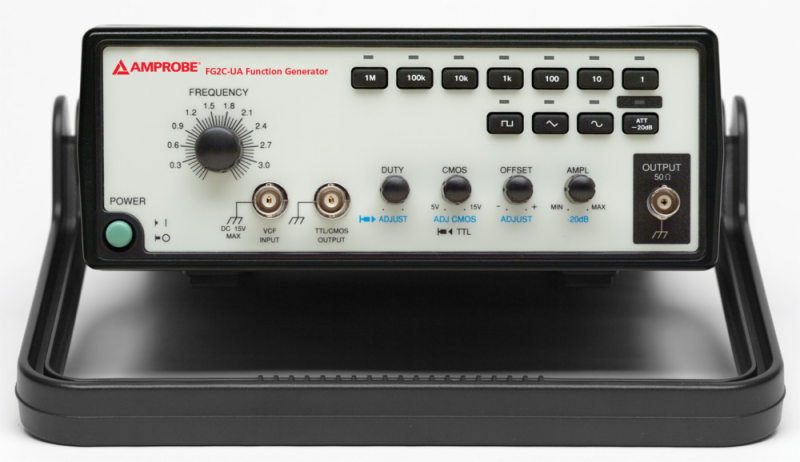

Amprobe FG2C-UA 3MHz Function Generator

This function generator provides a substantial array of output capabilities. It's extremely reliable for heavy   day-to-day usage in electronic trouble shooting, production manufacturing test or as a bread-boarding signal source.

The FG2C-UA function generator supplies all the basic test waveforms for fast, easy push-button selection of square, triangle, and sine waves plus TTL or CMOS pulse output. Smooth, analog knob dials frequency between 0.3Hz to 3MHz. Vary the output from less than 20mV p-p open circuit (10V p-p max. 50W load). Duty cycle control allows for setting pulses positive or negative. The VCF input allows external control for generating sweep signals.

Features:

• Square, Triangle, Sine Waves, TTL and CMOS pulse outputs.
• 0.3Hz to 3MHz range.
• Variable controlled frequency (VCF) input.
• Duty-cycle control.
• Variable output.
• 2 switchable 20dB attenuators.
• Variable DC offset control.
• Includes line cords and fuses for either 117V or 220V 50/60Hz operation.
