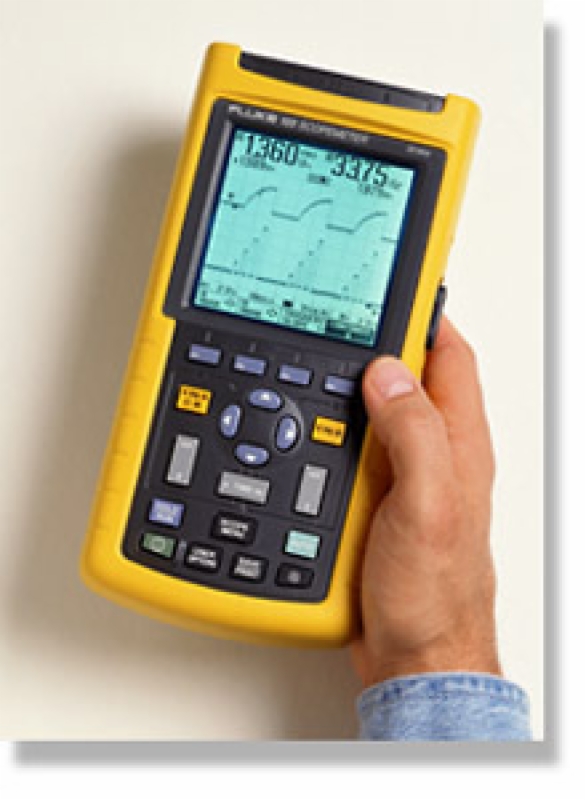

FLUKE 123 Industrial ScopeMeter

The Fluke 123 Industrial ScopeMeter test tool is the ideal choice for troubleshooting industrial machinery, instrumentation, control, and power systems. Its innovative, easy-to-use features save time and help minimize downtime in production and manufacturing systems. Scope, Meter and Recorder in one handheld package. Combines the three most frequently used service tools in one. Connect-and-View™ hands-off operation for checking an entire troubleshooting sequence without ever touching a button. Checks and troubleshoots AC and DC motor drives, sensors and actuators, line voltage, transformers and converters, analog and digital control loops. Single, shielded test lead measures all functions for intuitive ease of use. Fits easily in your hand - just 2.5 lb./1.2 kg. Safety-designed and certified for measurements on 600Vdc

• Dual-input 20 MHz digital oscilloscope
• Two 5,000 counts true-RMS digital multimeters
• Automatic measurements
• A dual-input TrendPlot™ recorder
• Connect-and-View™ trigger simplicity for hands-off operation
• Shielded test leads for oscilloscope, resistance and continuity measurements
• Up to 7 hours battery operation
• 600 V CAT III safety certified
• Optically-isolated interface for PC connection
• Rugged, compact case

In today’s complex systems, a meter measurement just doesn’t give enough detail to determine the cause of a fault. Signal anomalies, dropouts and glitches that might cause a machine to go down, are best displayed with an oscilloscope. The ScopeMeter 120 Series meet today’s need of simultaneously measuring and checking waveforms. The unique Connect-and-View™ triggering automatically displays stable waveforms of virtually any signal. It really is as easy as one-two-three! A three-in-one tool Dual-input measurement shows both meter reading and waveform at the same time today’s need of simultaneously ScopeMeter 123 combines a 20 MHz dual input digital storage oscillo-scope, two true-RMS digital multimeters and a dual input TrendPlot™ recorder all in a compact, battery powered instrument. Leave all other test tools behind, the ScopeMeter 123 is the only tool you’ll need One test lead measures all Check the starting capacitor of a motor using the ScopeMeter 123 High frequency waveform-, meter-, capacitance- and resistance-measurements as well as continuity checks are all covered by the shielded test leads. No time wasted finding or swapping leads. The included accessories allow hook-up at test objects of every dimension. The confidence to do a better job Open the measure menu and select from 26 scope- and meter-measurements Working under time pressure and in cramped or difficult to reach locations means you want to focus on the job at hand, not on the test tool in your hand. Which is why the ScopeMeter 123 has Connect-and-View automatic triggering.You don’t have to worry about triggering and instrument settings, and you have all the information on screen to do the job right. Battery powered mobility Up to seven hours of battery operation frees you from mains outlets for true on-the- move working. The handheld format and the weight of just 1.2 kg, make the instrument easy to carry and to fit comfortably in your hand. The rugged and drip proof case assures long life and reliable operation in the harshest industrial environments. Floating measurements, safety certified While conventional oscilloscopes can only make measurements referenced to power line ground, the Fluke 123 makes floating measurements so there is no risk of an accidental ground short circuit when making a connection. The ScopeMeter 123 and the included shielded test leads are safety certified for measurements on 600 V CAT III industrial power systems. And using the VPS40 probe, measurements up to 1000 V CAT II re fully supported! Via the optically isolated RS-232 or USB interface, the ScopeMeter 120 Series can be safely connected to a printer for direct print-out or to a PC for later analysis and documentation using FlukeView software. Connect-and-View™ triggering for an instant, stable display Connect-and-View captures even the most complex motor drive signals Scope users know how difficult triggering can be. Wrong settings show unstable and sometimes wrong results. Fluke’s unique Connect-and-View recognizes signal patterns, and automatically sets up correct triggering. It provides a stable, reliable and repeatable display of virtually any signal - including motor drive and control signals - without you touching a button. Signal changes are instantly recognized and settings adjusted for a stable display. Benefit from the speed and convenience when measuring a number of test points in quick succession. Use TrendPlot™ to help find intermittents, fast Cursors and zoom help you analyze the captured TrendPlot The toughest faults to find are those that happen only once in a while: intermit-tents. They can be caused by bad connections, dust, dirt, corrosion or simply broken wiring or connectors. You may not be around to see it — your Fluke ScopeMeter will. In this “paperless recorder” mode, you can plot the minimum and maximum peak values and average over time – up to 16 days. The two inputs can plot any combination of volts, amps, temperature, frequency and phase - with time and date stamp -to help lead you to the cause of those faults quickly. Power Measurements for single phase and balanced 3-phase systems. Harmonics mode graphically displays harmonics up to the 33rd harmonic to assist in fault-finding, e.g. with large non-linear loads. RPM and Hz reading for use with electrical and combustion engines. Vac pwm for use on motor drive outputs, reading the true output voltage experienced by the motor itself. Low impedance measurements giving a 0.01 ohms resolution for motor windings and the like. FlukeView® Software for documenting, archiving and analysis   < FlukeView® for Windows® helps you get more out of your ScopeMeter by: Documenting - transfer waveforms, screens and measurement data from the ScopeMeter to a PC. Print or import the data into your report. Add user text to individual ScopeMeter settings – providing guidance to the operator when recalling a set-up. Archiving - create a library of waveforms with your comments for easy reference and comparison. Store complete Replay cycles for analysis of waveform changes. Store complete memory content of the ScopeMeter on your PC for back-up purposes. Waveform Compare – store reference waveforms on the PC, or send a reference back to the ScopeMeter for waveform comparison and “Pass/Fail” testing. Analysis - use cursors, perform spectrum analysis or export data to other analysis programs. ScopeMeter test tools are connected to a PC via an optically-isolated RS-232 or USB interface cable.
