Fluke 124/003 40MHz Scopemeter

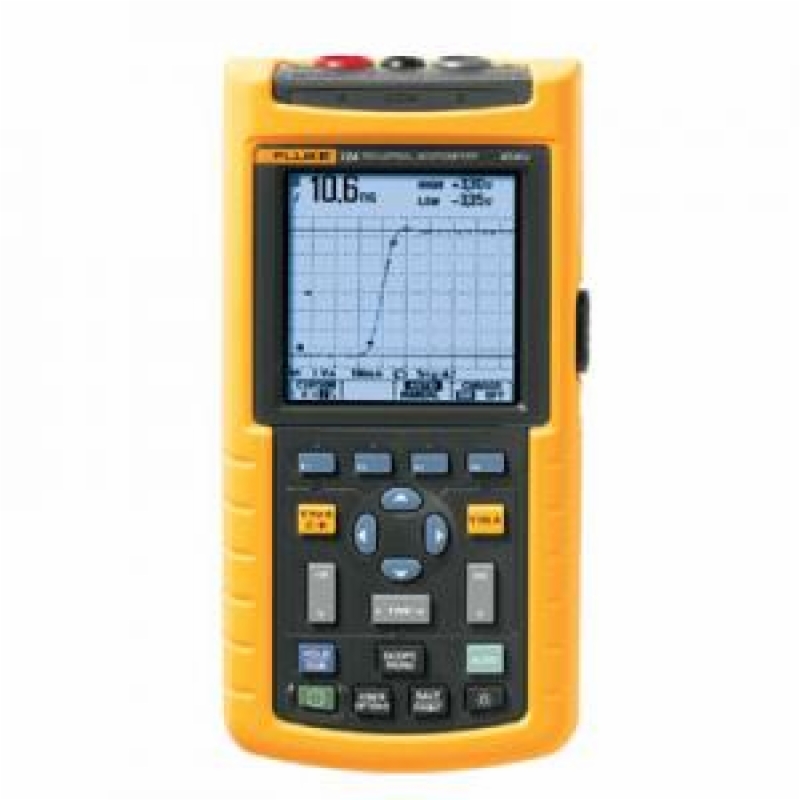

Fluke 124-003 Industrial ScopeMeter 40MHz is a truly integrated test tool, with oscilloscope, multimeter and “paperless” recorder in one affordable, easy-to-use instrument. This Industrial ScopeMeter answers to problems in machinery, instrumentation, control and power systems.

Oscilloscope mode

Vertical deflection

• Number of inputs: two
• Input coupling: ac, dc with ground level indicator
• Input sensitivity: 5 mV to 500 V/div (with the included VPS40 and STL120 shielded test leads measure up to 600 Vrms, CAT III)
• Input voltage: 600 V CAT III. See “general specifications” for more detailed information.
• Vertical resolution: 8 bit
• Accuracy: ± (1 % of reading + 0.05 x range/div)
• Input impedance: 1 MΩ ± 1 % // 225 pF with STL120 shielded test leads; 1 MΩ ± 1 % // 20 pF ± 3 pF with BB120; 5 MΩ ± 1 % // 15.5 pF with VPS40, 10:1 voltage probe

Horizontal

• Max. sample rate (both channels simultaneously): 2.5 GS/s for repetitive signals; 25 MS/s for single shot

• Number of digitizers: two
• Time base range: 10 ns/div to 1 min/div
• Maximum record length: 512 Min/Max points per input
• Accuracy: ± (0.1 % of reading + 1 pixel)
• Glitch detect: 40 ns

Display and acquisition

• Display modes: Input A, input A and B, envelope, smooth
• Acquisition modes: Normal (including glitch capture), single shot, roll

Trigger and delay

• Source: Input A, input B, external via optional ITP120
• Modes: Automatic Connect-and-View, Free Run, Edge, Single Shot, Video, Video Line
• Connect-and-View: Advanced automatic triggering that recognizes signal patterns and automatically sets up and continuously adjusts triggering, time base and amplitude. Automatically displays stable pictures of
• complex and dynamic signals like motor drive and control signals
• Video triggering: NTSC, PAL, PAL+, SECAM. Includes line select
• Time delay: Up to 10 divisions pre-trigger view

Measurements

• Vdc, Vac, Vac+dc, Vpeak max, Vpeak min, Vpeak to peak, frequency (Hz), positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, Amp ac, Amp dc, Amp ac+dc, Phase, Temperature °C, Temperature °F, dBV, dBm into 50 Ω and 600 Ω. (Amps, °C or °F with optional probes)

Cursor measurements

• Sources: Input A, Input B
• Modes: Single or dual vertical cursor, dual horizontal cursor, risetime or falltime
  • Measurements:
    Single vertical line: Average, min value, max value, time from start of recording in roll mode
  • Dual vertical lines: ΔV at markers, time between cursors, 1/T between cursors (in Hz)
  • Dual horizontal lines: High, low or ΔV – readout, risetime and falltime: transition time, 0 %-level, 100 %-level, with markers at 10 % and 90 %
• Accuracy: As oscilloscope

Dual input meter

• The specified accuracy is valid over the temperature range 18 °C to 28 °C (64 °F to 82 °F). Add 10 % of specified accuracy for each °C below 18 °C or above 28 °C (64 °F to 82 °F)
• Max. meter bandwidth: 40 MHz
• Voltage measurements
  • Measurement selection: V dc, V ac rms, V ac+dc rms, Vpeak max, Vpeak min, Vpk-pk
  • Ranges: 500 mV, 5 V, 50 V, 500 V, 1250 V
  • Full scale reading: 5,000 counts
• Accuracy
  • V dc: ± (0.5 % + 5 counts)
  • V ac rms:
    • 1 Hz to 60 Hz: ± (1 % + 10 counts)
    • 60 Hz to 1 kHz: ± (2.5 % + 15 counts)
    • 20 kHz to 1 MHz ± (5 % + 20 counts)
  • V ac+dc true-rms:
    • DC to 60 Hz: ± (1 % + 10 counts)
    • 60 Hz to 1 kHz: ± (2.5 % + 15 counts)
    • 20 kHz to 1 MHz (5 % + 20 counts)
  • V ac pwm:
    • Measures the effective output voltage of pulse-width modulated motordrives and frequency inverters (Fluke 125 only)
  • Vpeak:
    • Max peak or Min peak: 5 % of full scale
    • Peak-to-peak: 10 % of full scale
  • A ac+dc true-rms, A ac, A dc:
    • Current Clamp or shunt sensitivity:
    • 0.1 mV/A, 1 mV/A, 10 mV/A, 100 mV/A, 400 mV/A, 1 V/A or 10 mV/mA.

Ohms

• Ranges: 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 30 MΩ (all models), 50.00 Ω (Fluke 125 only)
• Max. resolution: 5,000 counts
• Accuracy: ± (0.6 % of reading + 5 counts)

Capacitance

• Ranges: 50 nF to 500 µF
• Max. resolution: 5,000 counts
• Accuracy: ± (2 % of reading + 10 counts)

Other meter functions

• Frequency: Up to 70 MHz
• Continuity: Beeper on < 30 Ω
• Diode test: Up to 2.8 V
• Duty cycle: 2 % to 98 %, up to 30 MHz
• Temperature (°C, °F): With optional accessories. Scale factors 1 mV/°C or 1 mV/°F
• Number of inputs: 2
• Input impedance: 1 MΩ ± 1 %/10 pF ± 2 pF
• Advanced meter functions: Auto/manual ranging, TouchHold®, Relative measurements (zero reference), TrendPlot recording

Recorder mode

Trendplot recording

• Dual input electronic paperless chart recorder. Plots and displays the actual, minimum, maximum and average of any measurement.
• Source and display: Input A, input A and B
• Range: 15 s/div to 2 days per division (automatic)
• Recorded timespan: Up to 16 days with a resolution of 1.5 hours
• Recording mode: Continuous with automatic vertical scaling and horizontal time compression
• Measurement speed: 2.5 measurements per second maximum
• Horizontal scale: Time from start

General specifications

Case

• Design: Rugged, shock proof with integrated protective holster
• Drip and dust proof: IP51 according to IEC529
• Shock and vibration: Shock 30 g according to MIL-PRF-28800F, Class 2, par. 3.8.4.2 and 4.5.5.3.1
• Shock and vibration: Vibration 3 g according to MIL-PRF-28800F, Class 2, par. 3.8.5.1 and 4.5.5.4.1

Display

• Bright LCD with CCFL backlight, 60 (35) cd/m2 with (without) power adapter
• Size: 72 mm x 72 mm (2.8 in x 2.8 in)
• Resolution: 240 x 240 pixels
• Contrast and brightness: User adjustable, temperature compensated

Memory save and recall

• 20 instrument screens with user set-ups and user text

Real-time clock

• Time and date stamp TrendPlot recording

Power

• Line power: Country-specific line voltage adapter/battery charger included
• Battery power: Rechargeable Ni-MH BP120MH (installed)
• Battery operating time: Up to 7 hours using BP120MH
• Battery charging time: 7 hours
• Battery power saving functions: Auto power down with adjustable power down time. On-screen battery power indicator

Mechanical data

• Size: 50 mm x 115 mm x 232 mm (2 in x 4.5 in x 9.1 in)
• Weight: 1.2 kg (2.64 lb)

Safety

• Compliance:
  • EN61010-1-2001, Pollution degree 2; CAN/CSA C22.2, No. 61010-1-04, including CCSAUS-approval; ANSI/ISA-82.02.01
