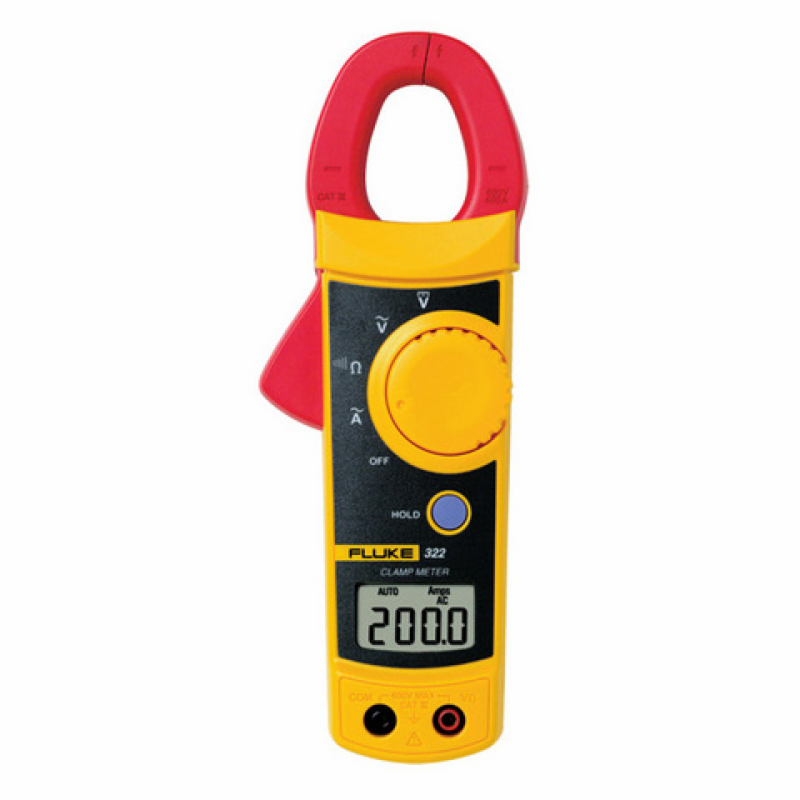

FLUKE 322 400 Amp Clamp Meter

Availability:

1 In Stock

Item: FLUKE 322

Quantity	Price
1	$ 95.490

Quantity :

Add To Cart

Continue Shopping

Big features, small package

The Fluke 322 is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. This small and rugged clamp meter is ideally suited for current measurements up to 400 A in tight cable compartments and also offers DC voltage measurements and has a higher resolution for loads below 40 A.

New smaller size fits easily into tight places
Precise measurements with 1.8% basic accuracy
Resolution up to 0.01A and 0.1 V
Measures AC current to 400 A
Measures AC volts to 600 V
Measures DC volts to 600 V
Resistance measurement to 400 Ω
Continuity for quick checking of shorts
Automatic low battery indicator
Display hold function
Two year manufacturers warranty

Specifications

Voltage DC

Range:	0 - 400 V (Fluke 322 only)
Resolution:	0.1 V
Range:	0 - 600 V (Fluke 322 only)
Resolution:	1 V
Accuracy:	1% ± 5 counts

Voltage AC

Range:	0 - 400 V
Resolution:	0.1 V
Range:	0 - 600 V
Resolution:	1 V
Accuracy:	1.2% ± 5 counts (50 - 400 Hz)
AC Response:	Averaging

Current AC

Range:	0 - 400 A
Resolution:	0.1 A
Range:	0 - 40 A (Fluke 322 only)
Resolution:	0.01 A
Accuracy:	1.8% ± 5 counts (50 - 60 Hz)
Accuracy:	3.0% ± 5 counts (60 - 400 Hz)
AC Response:	Averaging

Resistance

Range:	0 - 400 Ω
Resolution:	0.1 Ω
Accuracy:	1% ± 5 counts

Continuity

<= 30 Ω

Environmental Specifications

Operating Temperature

-10°C to +50°C

Storage Temperature

-30 ºC to +60 ºC

Operating Altitude

2,000 meters

Temperature De-rating

Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC

Safety Specifications

Safety Rating

IEC 1010-2-032, 600V CAT III

Mechanical & General Specifications

Size

190 x 63 x 35 mm

Weight

230 g

Warranty

Two years

Battery Life

100 hours typical (2 AAA carbon zinc)

Jaw Opening

25 mm

View Instruction Card
