FLUKE 54-2 Dual Input Themometer with Recording

Availability:

We are sorry, but this item has been Discontinued

Item: FLUKE 54-2

click the "Add To Cart" button & we will immediately show your special price

Continue Shopping

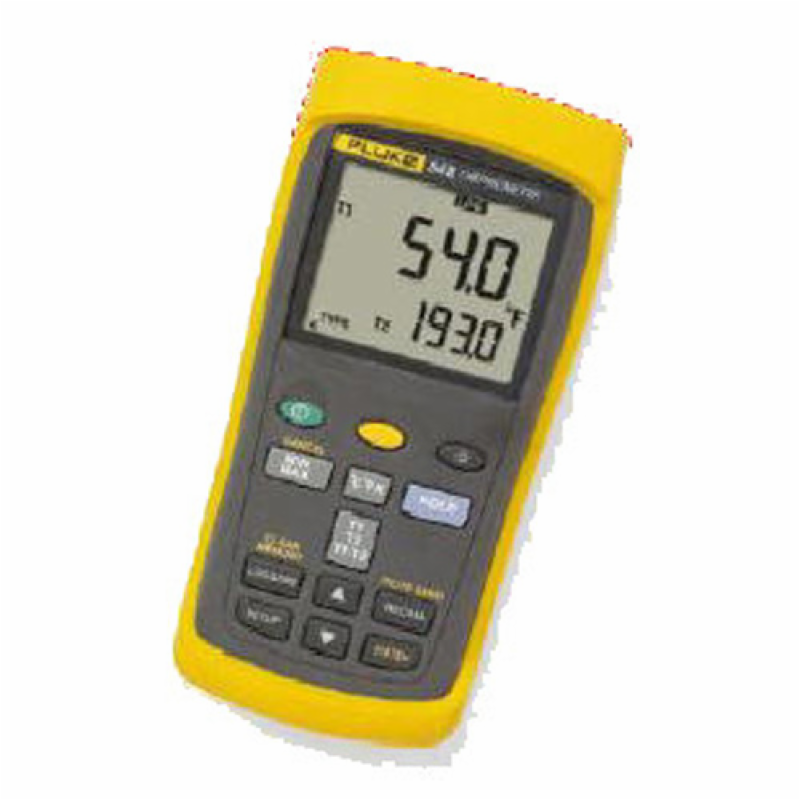

The new Fluke 54 Series II contact thermometer offers fast response and laboratory accuracy (0.05% + 0.3°C) in a rugged, handheld test tool.

Fluke 54 II: Dual Input Digital Thermometer with data logging including:

Impact absorbing holster
Two 80PK-1 bead probe thermocouple

Features:

Relative time clock on MIN, MAX, and AVG provides a time reference for major events
Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
Measures J, K, T, and E-types of thermocouples
Readout in ºC, ºF, or Kelvin (K)
Splash and dust resistant case protected by impact absorbing holster
User-friendly front panel is easy to set up and operate
Sleep mode increases battery life; typical 1000-hour battery life
Battery door allows easy battery replacement without breaking the calibration seal
Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation.
Large backlit dual display shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG.
Additional thermocouple types R, S, and N (for a total of 7 different types)
Recall function allows logged data to be easily reviewed on the meter display
IR communication port allows data to be exported to optional
FlukeView Forms® Temperature PC software for further analysis and graphing
Data Logging up to 500 points of data with user adjustable recording interval

Specifications

Temperature accuracy

Above -100 °C:	J, K, T, E, and N-type: ±[0.05% + 0.3°C]*
	R and S-type: ±[0.05% + 0.4°C]*

Below -100 °C:	J, K, E, and N-types: ±[0.20% + 0.3°C]*
	T-type: ±[0.50% + 0.3°C]

Temperature

J-type:	-210 °C to 1200 °C
K-type:	-200 °C to 1372 °C
T-type:	-250 °C to 400 °C
E-type:	-150 °C to 1000 °C
N-type:	-200 °C to 1300 °C *
R and S-type:	0 °C to 1767 °C *

Temperature scale

ITS-90

Applicable standards

NIST-175

Display Resolution

	0.1 °C, 0.1 K < 1000
	1°C, 1 K >=1000

Note

*	Only the Fluke Models 53 II and 54 II thermometers are capable of measuring N, R, and S-type thermocouples.

Environmental Specifications

Operating Temperature

-10 °C to 50 °C

Storage Temperature

-40 °C to 60 °C

Humidity (Without Condensation)

	0% to 90%; 0 °C to 35 °C
	0% to 70%; 0 °C to 50 °C

Safety Specifications

Overvoltage category

CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2

Agency Approvals

CE, CSA, TÜV (pending)

Mechanical & General Specifications

Size

173 mm L x 86 mm W x 38 mm

Weight

400 g

Batteries

3 AA batteries; typical 1000-hour life

View Users Manual
