Fluke 574 Precision Close Focus Infrared Thermometer
Availability: Available For Back Order
Item: FLUKE 574-CF
click the "Add To Cart" button & we will immediately show your special price
Quantity :     0 In Stock

Add To Cart

Continue Shopping

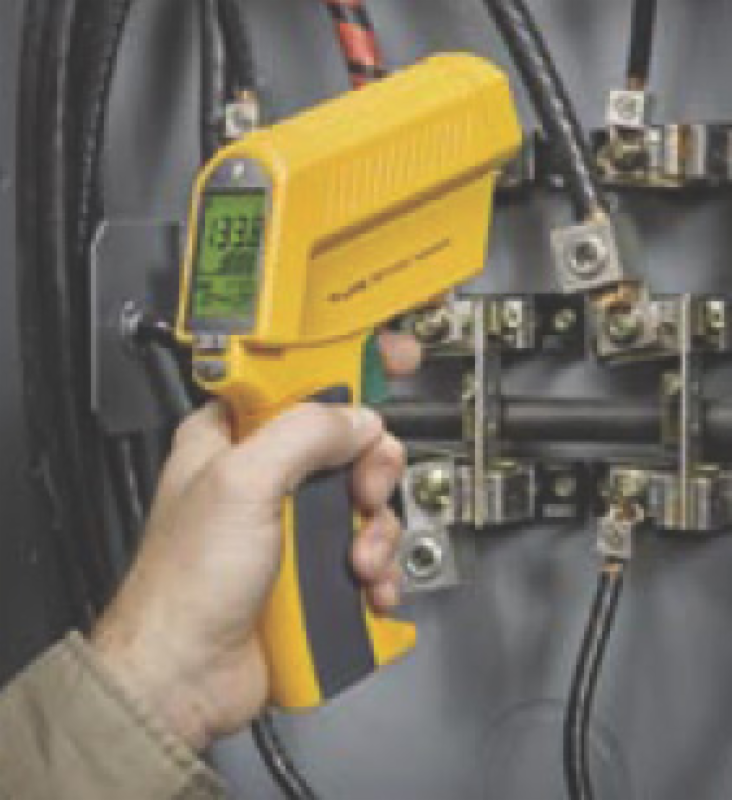

The Fluke 574-CF non-contact thermometer is an ideal professional diagnostic tool for maintenance professionals requiring the most accurate temperature readings at all distances. The Fluke 574-CF measures surface temperatures, helping to quickly locate lubrication problems, overloads, short-circuits or misaligned and overheated equipment, reducing work and follow-up time, and improving performance.

From close-up electrical connections, to distant room balancing checks, the Fluke 570 series can take IR temperature measurements with ease. Predictive maintenance professionals requiring analysis and documentation use the 574-CF with 100-point data logging with the included software for graphing and analysis for follow-up reporting and documentation.

Features:

  • Backlit display for poorly lit areas
  • Last ten temperature readings displayed on bar graph for easy reference
  • Enhanced optics (distance to spot ratio up to 60:1) allow measurements of smaller objects from farther away
  • Coaxial three-dot laser sighting system highlights the true diameter of measurement spots at all distances (90% energy)
  • Extra bright appearing 635nm laser (tested to the same safety and power standards as less bright laser sights) to clearly highlight the targeted area
  • Close-focus option available for specialized applications
  • MIN/MAX measurements calculations instantly computed
  • Audible and visible HI temperature alarm for instant recognition
  • Comfortable, overmolded pistol grip makes target sighting easy
  • Adjustable emissivity setting (.01 increments) for more accurate measurement
  • Durable hard plastic storage case included
  • DIF/AVG measurement calculations instantly computed
  • 100 temperature data logging capability for easy route review
  • 30 pre-set common material emissivity values for most accurate temperature readings
  • Audible and visible HI and LO temperature alarm for instant recognition
  • Thermocouple K probe input for contact temperature measurements with same unit
  • Customizable log names, alarms, and emissivity values for more efficient, less error-prone predictive maintenance routes
  • Windows-based (Windows NT/ 2000/XP) software for data storage and analysis
  • Software to log, graph, and analyze temperature data via RS232 connection

Included with the Fluke 574-CF:

  • User’s guide on CD
  • Hardshell carrying case.



Technical Specifications
Temperature range
  -30 to 900°C
  (-25 to 1600 °F)
Display Resolution
  0.1°C of reading up to 900°C
  0.2°F of reading up to 999.8°F
D:S (Distance to spot size)
  60:1 Standard focus
  50:1 Close focus
Minimum measurement diameter
  19mm (0.76 in) Standard focus
  6mm (0.24 in) Close focus
Laser sighting
  Three point coaxial laser
Emissivity
  Digitally adjustable from 0.10 to 1.0 by 0.01
Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)]
  ±0.75% of reading
  ±1% of reading or ±0.75°C (±1.5°F), whichever is greater
Response time
  250 mSec (95% of reading)
Repeatability
  ±0.5% of reading or ±1°C (±2°F), whichever is greater
Spectral response
  8 µm to 14 µm
Laser Sighting
  Laser turns off above ambient temperature of 40°C (104°F)
Laser Power
  Class 2(II) operation; Output <1mW, wavelength 630-670 nm
Relative humidity
  10% to 90% RH non-condensing, at <30°C (86°F)
Tripod mount
  ¼ in. 20 UNC threading
Power
Fluke 574: 2 AA batteries/ AC adapter
Battery life (alkaline)
Fluke 574: 13 hours with laser and backlight on 50%
Display hold
  7 seconds
LCD backlit
  Yes
Warranty
  2 years
Operating temperature
  0°C to 50°C
  32°F to 120°F
Storage temperature
  -20°C to 50°C
  -25°F to 120°F
MAX, MIN temperatures
  Yes
DIF, AVG temperatures
Fluke 574: Yes
Audible and visible alarms
Fluke 574: High and low
Bar graph display
  Yes
Up to 100 points data logging
Fluke 574: Data only
Data graphing and storage software (Windows compatible)
Fluke 574: Data only

Users Manual
