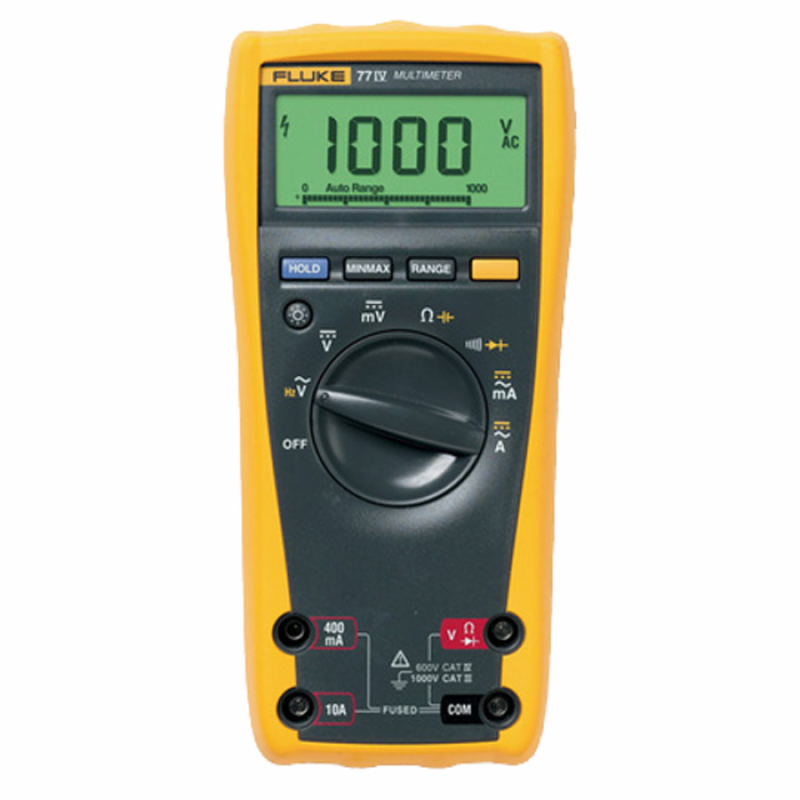

Fluke 77 IV Series Digital Multimeter
Availability: 1 In Stock
Item: FLUKE 77-4
click the "Add To Cart" button & we will immediately show your special price
Quantity :
Fluke 77 IV Series Digital Multimeter

Add To Cart

Continue Shopping

Versatile Digital Multimeter for field service or bench repair.

The Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

It measures:

  • Wide 1000 V measurement range
  • Average responding AC measurements
  • 0.3% accuracy
  • 10 Amps continuous (20A for 30 seconds)
  • Frequency and capacitance
  • Resistance and continuity

 Features of the Fluke 77 IV Series Digital Multimeter:

  • Large display
  • Backlight for work in dim areas
  • Min / Max to record signal fluctuations
  • Ergonomic overmolded housing with integrated probe holders
  • Free your hands with the optional TPAK magnetic hanger
  • Auto and Manual ranging
  • Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
Fluke 77 IV Series Digital Multimeter Specifications
Voltage DC
Range: 6.000V - 1000V
Best Accuracy: +/- (0.3% + 1)
Best Resolution: 0.1 mV
Voltage AC
Range: 600.0 mV-1000V
Best Accuracy: +/- (2.0% + 2)
Best Resolution: 1.0 mV
Amps AC
Range: 60.00 mA ? 10A
Best Accuracy: +/- (1.5% + 2)
Best Resolution: 0.01mA
Amps DC
Range: 60.00 mA ? 10A
Best Accuracy: +/- (2.5% + 2)
Best Resolution: 0.01 mA
Resistance
Range: 600.0 ? - 50 M?
Best Accuracy: +/- (0.5% + 1)
Best Resolution: 0.1?
Capacitance
Range: 1nF- 9,999 µF
Best Accuracy: +/- (1.2% + 2)
Best Resolution: 1 nF
Frequency
Range: 99.99Hz- 99.99kHz
Best Accuracy: +/- (0.1% + 1)
Best Resolution: 0.01Hz
Safety
  ANSI/ISA S82.02.01, CSA C22.2-1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV
Certifications
  CSA, TÜV (EN61010), UL, ?, ; (N10140),VDE





General Specifications
Maximum voltage between any terminal and earth ground
  1000V
Surge protection
  8 kV peak per IEC 61010
? Fuse for mA inputs
  440 mA, 1000 V FAST Fuse
? Fuse for A inputs
  11 A, 1000 V FAST Fuse
Display
Digital: 6000 counts, updates 4/sec
Bar Graph: 33 segments; Updates 32/sec
Frequency: 10,000 counts
Capacitance: 1,000 counts
Altitude
Operating: 2,000 meters
Storage: 12,000 meters
Temperature
Operating: -10 °C to +50 °C
Storage: -40 °C to +60 °C
Temperature Coefficient
  0.1 X (specified accuracy / °C (< 18 °C or > 28 °C)
Electromagnetic Compatibility (EN 61326-1:1997)
  In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ± 5 °C (9 °F)
Relative Humidity (Maximum Non-condensing)
  90 % to 35 °C
  75 % to 40 °C
  45 % to 50 °C
Battery Life
  400 Hours Typical (Alkaline)
Size
Height: 4.3 cm
Width: 9 cm
Length: 18.5 cm
Weight
  420 g
