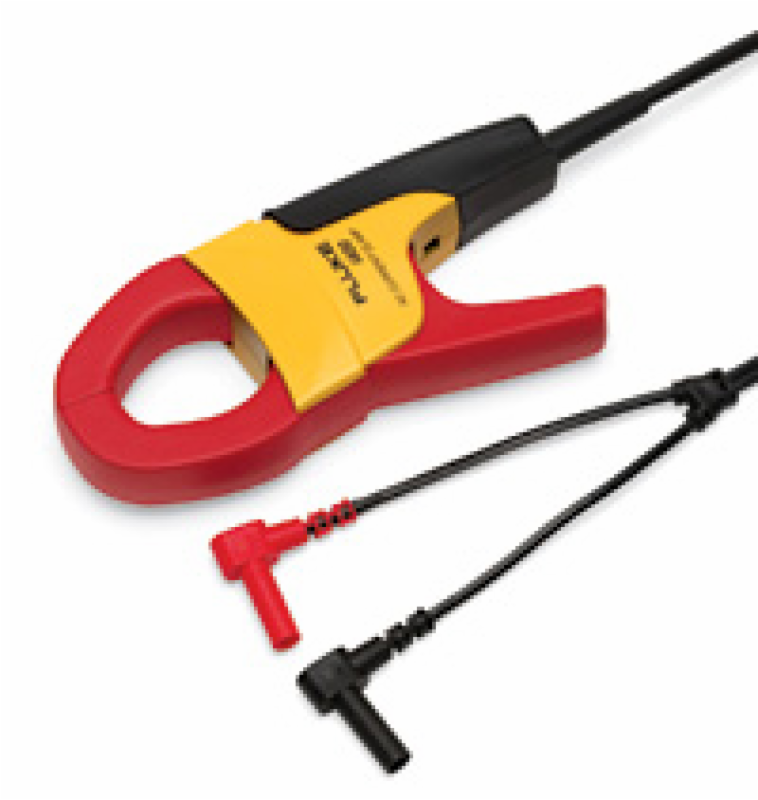

FLUKE i400 AC Current Clamp

Availability:

2 In Stock

Item: FLUKE I400

Quantity	Price
1	$ 121.720

Quantity :

FLUKE i400 AC Current Clamp

Add To Cart

Continue Shopping

CAT IV AC current clamp for DMM's

Fluke Current clamps are the ideal tools to extend the functionality of Fluke tools. The i400 is a single range 400 A ac current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.

Companion to your DMM to measure up to 400 A AC
1mA/Amp output guarantees easy reading on you meter
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a very compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle prevents from accidental touching live wiring
Max. conductor Ø 32 mm

Specifications

Nominal current range

400A

Continuous current range

1 A - 400 A

Maximum Non-Destructive Current

1000 A

Lowest measurable current

1 A

Basic accuracy

	2% + 0.06 A
	(45-400 Hz)
	(% reading + floorspec)

Useable frequency

5 Hz - 20 kHz

Output level(s)

1 mA/A

Safety Specifications

Safety

CAT IV 600 V, CAT III, 1000 V

Maximum voltage

1000 V AC rms from earth to ground, in compliance with EN61010

Mechanical & General Specifications

Warranty

1 year

Maximum conductor diameter

32 mm (1.25 inches)

Maximum conductor size (busbar)

750 MCM

Output cable length

1.5 m (59 inches)

Shrouded banana plugs

Yes
