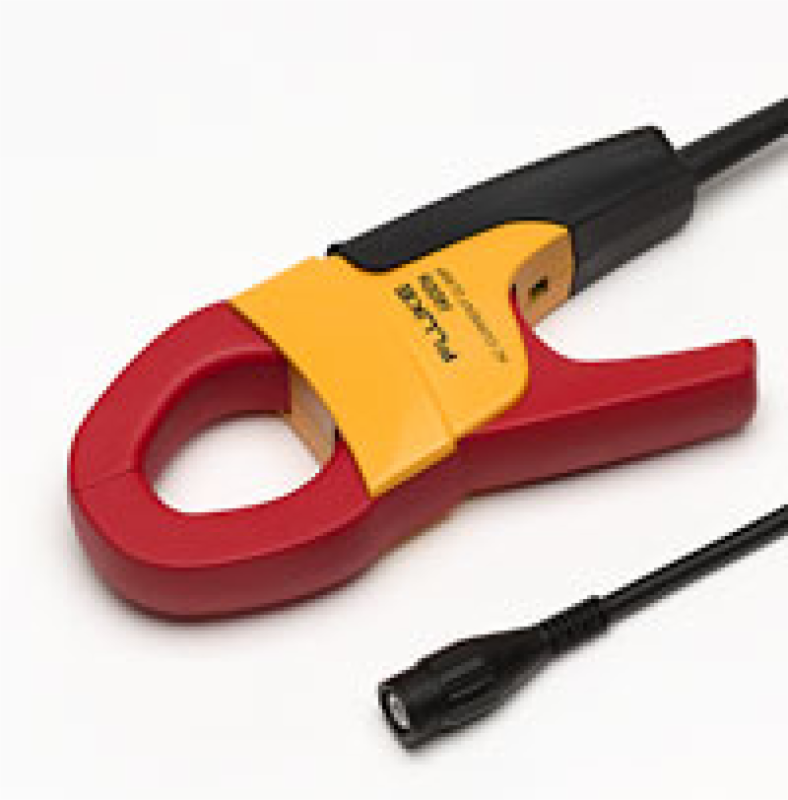

FLUKE i400s AC Current Clamp
Availability: 1 In Stock
Item: FLUKE I400S
click the "Add To Cart" button & we will immediately show your special price
Quantity :
FLUKE i400s AC Current Clamp

Add To Cart

Continue Shopping

High safety AC current clamp with BNC output

  • Companion to your scope or power quality meter to measure up to 400 A AC.
  • Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
  • Specially designed to offer maximum utility in a compact shape.
  • Take accurate current readings without breaking the circuit.
  • Soft non-slippery overmold handle.
  • Optional PM9081/001 BNC/Banana adapter for DMM's.
  • Two ranges: 40 A & 400 A, 10 & 1 mV/Amp output.
  • Max. conductor Ø 32 mm.
Specifications
Nominal current range:
40 A Range  0.5 A to 40 A
400 A Range  5 A to 400 A
Basic accuracy:
40 A Range  2% + 0.015 A (45-400 Hz)
400 A Range  2% + 0.04 A (45-400 Hz)
Phase Shift:
40 A Range
0.5 to 1 A  Unspecified
1 A to 5 A  4°
5 A to 10 A  3°
10 A to 20 A  3°
20 A to 40 A  2°
40 A to 400 A  NA
400 A Range
0.5 to 1 A  NA
1 A to 5 A  NA
5 A to 10 A  Unspecified
10 A to 20 A  2°
20 A to 40 A  2°
40 A to 400 A  1.5°
Typical Bandwidth:
40 A Range  5 Hz - 10 kHz
400 A Range  5 Hz - 10 kHz
Output level(s):
40 A Range  10 mV/A
400 A Range  1 mV/A
Crest Factor:
40 A Range  ≤ 3
400 A Range  ≤ 3 to 300 A
   ≤ 2.5 to 400 A

Safety Specifications
Safety
   CAT IV 600 V, CAT III, 1000 V
Maximum Non-Destructive Current
   1000 V AC

Mechanical & General Specifications
Warranty
   1 year
Maximum conductor size
   32 mm (1.25 inches)
Output cable length
   2.5 m (8.2 ft)
BNC Adapter
   Yes
Dimensions
   150 x 70 x 30 mm
Weight
   114 g
