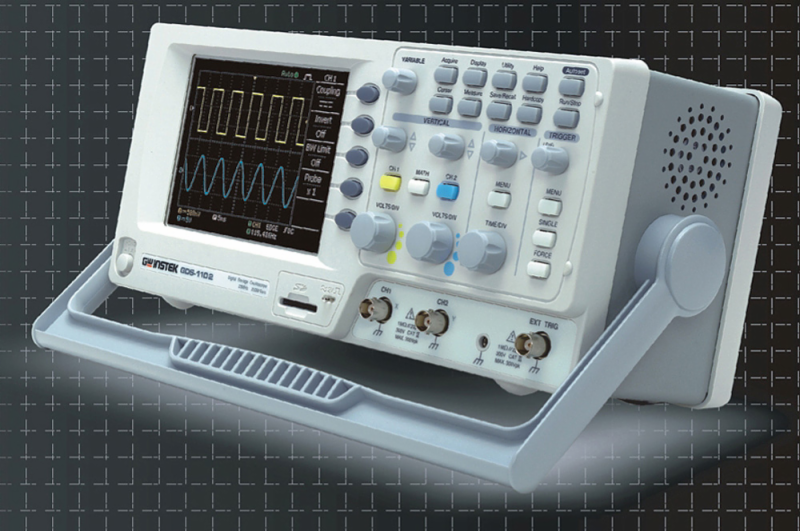

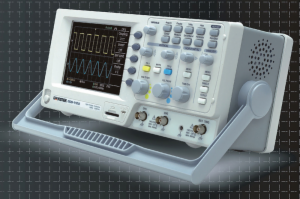

INSTEK 100MHz 2Ch Lightweight DSO w/Color LCD

Features:

• 100 MHz Bandwidth
• 2 Input Channels
• 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
• 4k Memory Length per Channel
• Peak Detect as Fast as 10ns
• Save/Recall of 15 Front Panel Settings & Waveforms
• 5.6" TFT Color Display
• 19 Auto Measurements
• Timebase Range: 1nS ~ 10nS/div
• USB Port for PC Connection
• Math Operators - Add, Subtract, FFT
• 6-Digit Real-Time Frequency Counter

Specifications:

• Vertical
  • Channels: 2
  • Bandwidth: DC ~ 100MHz (-3dB)
  • Rise Time: <3.5ns Approx.
  • Sensitivity: 2mV/div ~ 5V/div (1-2-5 increments)
  • Accuracy: ±(3% x |Readout|+0.1 div + 1mV)
  • Input Coupling: AC, DC & Ground
  • Input Impedance: 1M?±2%, ~16pF
  • Polarity: Normal & Invert
  • Maximum Input: 300V (DC+AC peak), CATII
  • Waveform Signal Process: + , - , FFT
  • Offset Range: 2mV/div ~ 50mV/div : ±0.4V 100mV/div ~ 500mV/div : ±4V 1V/div ~ 5V/div : ±40V
  • Bandwidth Limit: 20MHz (-3dB)
• Trigger
  • Sources: CH1 , CH2 , Line , EXT
  • Modes: Auto, Normal, Single, TV, Edge, Pulse Width
  • Coupling: AC , DC , LF rej. , HF rej. , Noise rej.
  • Sensitivity: DC ~ 25MHz : Approx. 0.5div or 5mV
• Ext Trigger
  • Range: ±15V
  • Sensitivity: DC ~ 30MHz : ~ 50mV ; 30M ~ 60MHz : ~100mV
  • Input Impedance: 1M?±2% , ~ 16pF
  • Maximum Input: 300V (DC AC peak) , CATII
• Horizontal
  • Range: 1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div
  • Modes: Main, Window, Window Zoom, Roll, X-Y
  • Accuracy: ±0.01%
  • Pre-Trigger: 10 div maximum
  • Post-Trigger: 1000 div
• X-Y Mode
  • X-Axis Input: Channel 1
  • Y-Axis Input: Channel 2
  • Phase Shift: ±3° at 100kHz
• Signal Acquisition
  • Real-Time Sample Rate: 250MSa/s maximum
  • Equivalent Sample Rate: 25GSa/s maximum
  • Vertical Resolution: 8 Bits
  • Record Length: 4K Dots maximum
  • Acquisition Mode: Normal, Peak Detect, Average
  • Peak Detection: 10ns (500ns/div ~ 10s/div)
  • Average: 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
• Cursors & Measurement
  • Voltage Measurement: Vpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/Overshoot , Fall Preshoot/Overshoot
  • Time Measurement: Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
  • Cursors Measurement: Voltage difference between cursors / Time difference between cursors
  • Auto Counter: Resolution : 6 digits Accuracy : ±2% Signal Source: All available trigger source except the Video trigger mode
• Control Panel Function
  • Autoset: Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
  • Save Setup: Up to 15 sets of measurement conditions
  • Save Waveform: 15 sets of waveform
• Display
  • TFT LCD Type: 5.6 inch
  • Display Resolution: 234 (Vertically) x 320 (Horizontally) Dots
  • Display Graticule: 8 x 10 divisions
  • Display Brightness: Adjustable
• Interface
  • USB Slave Connector: USB1.1 & 2.0 full speed compatible (printers and flash disk not supported)
  • SD Card Slot Image (BMP), waveform data (CSV), and setup (SET)
• Power Source
  • Line Voltage Range: AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
• Accessories
  • User manual x 1
  • Power Cord x 1
  • GTP-060A-2 Probe(10:1/1:1) x 2
• Dimensions
  • 12.4(W) x 5.68(H) x 5.6(D)"
