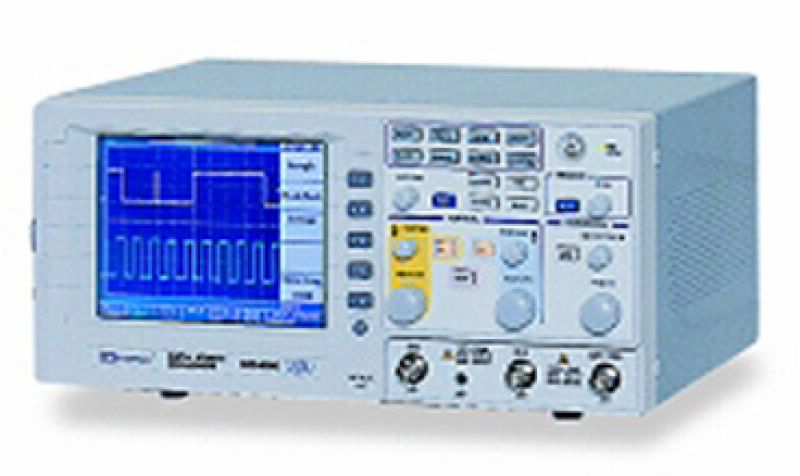

Instek 250MHz Color Digital Storage Oscilloscope

Features:

• 250MHz Bandwidth with Color LCD Display
• 125k Long Memory and 12 Division Horizontal Display
• 25Gsa/s Sampling Rate for Repetitive Waveforms
• 15 Auto Measurement Functions to get quick and accurate results
• Advance Trigger: Pulse Width, TV-Line, Event Delay and Time Delay
• GO-No Go, Learn Mode and Auto Setup Sequence
• FFT Function
• Standard Interface: USB, RS232, Printer Port, Option: GPIB Interface

  Specification:

• Display Devide: Color(320*240) 5.7" LCD
• Display Contrast: Adjustable
• Waveform Display Graticule: 8 x 10 divisions (8 x 12 div, when menu off)
• Display Mode: Dot, Vector, Accumulate
• Bandwidth (-3dB): DC~250MHz
• Channels: 2
• Resolution: 8 bit
• Sensitivity: 2mV / DIV ~ 5V / DIV
• Accuracy: ±3%
• Rise Time: <1.4ns
• Input Coupling: AC, DC, GND
• Input Impedance: 1MOhm + 2%, ~ 22pF
• Polarity: Positive& Negative
• Max. Voltage Between Signal & Comman at Input BNC: 300V (DC + AC peak), CAT II
• Waveform Signal Process: CH1-CH2, CH1+CH2, FFT
• Offset Range: 2mV/div ~ 50mV/div: ±0.5V ; 100mV/div ~ 500mV/div: ±5V ; 1V/div ~ 5V/div: ±50V
• Bandwidth Limit: 20MHz (-3dB)
• Range: 1nS/DIV ~10S / DIV ; Roll: 250mS/DIV ~ 10S/DIV (1-2-5 increments)
• Modes: MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y
• Accuracy: +0.01%
• Delay Range: Pre-trigger : 20 DIV, Post-trigger : 1000 DIV
• Real-time Sample Rate: 100MSa/s maximum on each channel
• Equivalent Sample Rate: 25GSa/s maximum on each channel
• Record Length: 125k / CH
• Peak Detection: 10nS (500nS/DIV ~ 10S/DIV)
• Acquisition Mode: Sample, Peak Detect, Average
• Average: 2, 4, 8, 16, 32, 64, 128, 256
• Trigger System Source: CH1, CH2, LINE, EXT
• Modes: AUTO-LEVEL, AUTO, NORMAL, SINGLE, TV, TIME DELAY, /EVENT DELAY, EDGE, PULSE WIDTH
• Coupling: AC, DC, LF rej, HF rej, Noise rej
• Sensitivity: DC ~ 25MHz : approx. 0.35 DIV or 3.5mV ; 25MHz ~ 250MHz : approx. 1.5 DIV or 10mV
• External Trigger Range: ±15V
• Sensitivity: DC ~ 30MHz : approx. 50mV ; 30MHz ~ 100MHz : approx. 100mV; 150MHz 100MHz ~ 250MHz : approx. 150mV
• Input Impedance: 1MOhm + 2%, ~ 22pF
• Maximum Input: 300V (DC + AC peak), CAT II
• X-Axis Input / Y-Axis Input: Channel 1 (CH1) / Channel 2 (CH2)
• Phase Shift: +3° at 100kHz
• Automated Voltage Measurement: Vhi, Vlo, Vmax, Vmin, Vpp, Vavg, Vrms, Vamp
• Automated Time Measurement: Rise Time, Fall Time, Duty Cycle, Frequency, Period, Positive Width, Negative Width
• Cursor Measurement: Voltage difference between cursors (Delta V) time difference between cursors (Delta T) Frequency difference between cursors (1/Delta T)
• Frequency Counter Readout Resolution: 6 digits
• Range: AC Coupled, 10Hz minimum to rated bandwidth
• Signal Source: All available trigger source except the Pulse Width & Video Trigger mode
• Autoset: "Autoset" adjust vertical (volt/DIV), horizontal (sec/DIV), and trigger level automatically
• Save/Recall: Up to 15 sets of measurement conditions can be saved and recalled
• Waveform Trace Save/Recall: 2 sets of waveform can be saved and recalled
• USB Interface, RS-232 interface, printer port & Go-No-Go Output
• LIne Voltage Range: 100V ~ 240V AC, automatic selection
• Line Frequency: 48Hz ~ 63Hz
• Dimensions: 10.16 x 5.68 x 12.4"
