200MHz Hantek PC Based USB Oscilloscope

Item no. DSO-5200A
$309.00

Qty
9 In Stock
  • Manual
  • Spec sheet

  • MSDS data

  • ROHS statement

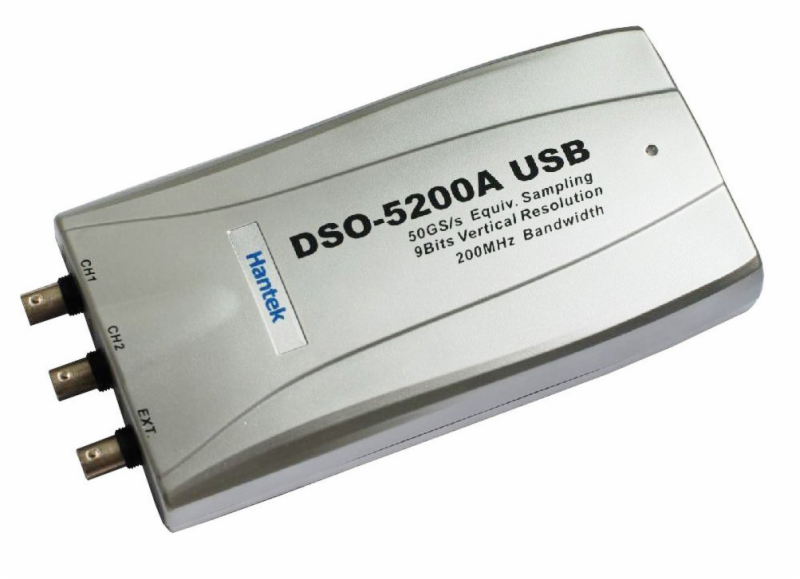

200MHz Hantek PC Based USB Oscilloscope

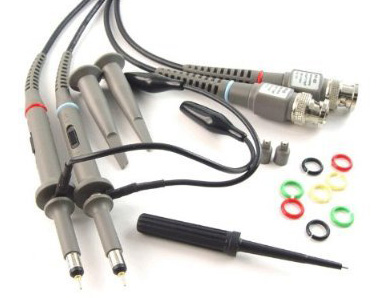

Turn your Windows based computer into a powerful 2 channel digital oscilloscope.  Using the PC's USB port for data communications between the included hardware & software to create the oscilloscope display on the PC's monitor allowing you to preform functions the same as on a standard scope.  The unit ships with 2 probes, software CD, users manual and USB cable.

Youtube Review of this item

Characteristics:

  • USB2.0 interface, no external power source required, easy to use.
  • Suitable for notebook computer, product line maintenance, may be used easily on business.
  • Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
  • High performance,250MS/s real-time sampling, 200MHz Bandwidth.
  • Operating System: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
  • 23 measurement functions, PASS/FAIL Check, suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
  • FFT
  • One computer can connect many DSO, easily extend channels.
  • Labview\VB\VC\Delphi\C++Builder Second Design instance.

Hardware Specifications:

  • Channels: 2
  • Impedance: 1MΩ 25pF
  • Coupling: AC/DC/GND
  • Vertical resolution: 9 Bit
  • Gain range: 10mV-10V, 10Steps
  • DC accuracy: ±3%
  • Timebase range: 2ns-1h, 39 Steps
  • Vertical adjustable: Yes
  • Input protection: Diode clamping
  • X-Y: Yes
  • Autoset: Yes (30Hz to 200MHz)
  • EXT. input: Yes
  • Trigger Mode: Auto, Normal and Single
  • Trigger Slope: +/-
  • Trigger level adjustable: Yes
  • Trigger Type: Rising edge, falling edge
  • Trigger Source: CH1, CH2, EXT
  • Pre/Post trigger: 0-100%
  • Buffer size: 10K-512KB/Channel
  • Shot bandwidth: 100MHz
  • Max. Sample rate: 250MS/s
  • Sampling selection: Yes
  • Waveform Display: port/line, waveform average, persistence, intensity
  • Network: Open/Close
  • Vertical mode: CH1, CH2, Dual, ADD
  • Cursor measurement: Yes

Spectrum analyzer Specifications:

  • Channels: 2
  • Math: FFT, addition, subtraction, multiplication, division.
  • Bandwidth: 200MHz
  • Cursor: Frequency, Voltage
  • Data Samples: 10K-1M
  • Accessories: S/W CD, probes, manual, USB cord

DSO-5200A Users Manual Users Manual

Driver 32

Driver 64

DSO-5200A Software

Software Development Kit
